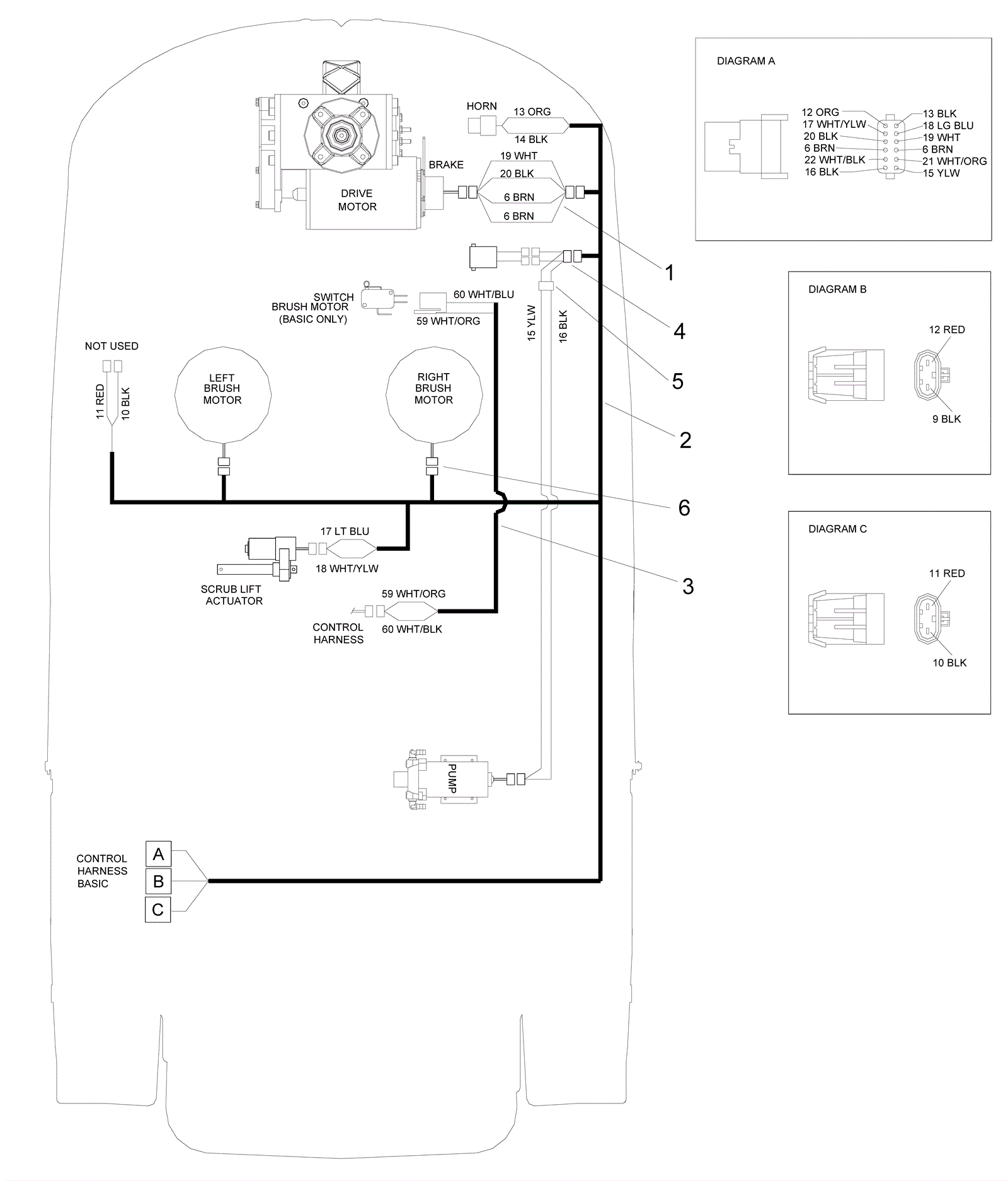

Main Harness Wiring Diagram

#PartDescription ReqNotesAvailability
1 173-5607 Brake harness 1
2 173-6118 Main harness 1
3 173-6119 Deck switch harness 1
4 273-6789 Pump and solenoid harness 1
5 173-6121 Ferrite bushing 1
6 173-1766 Polarity jumper wire assembly 1
