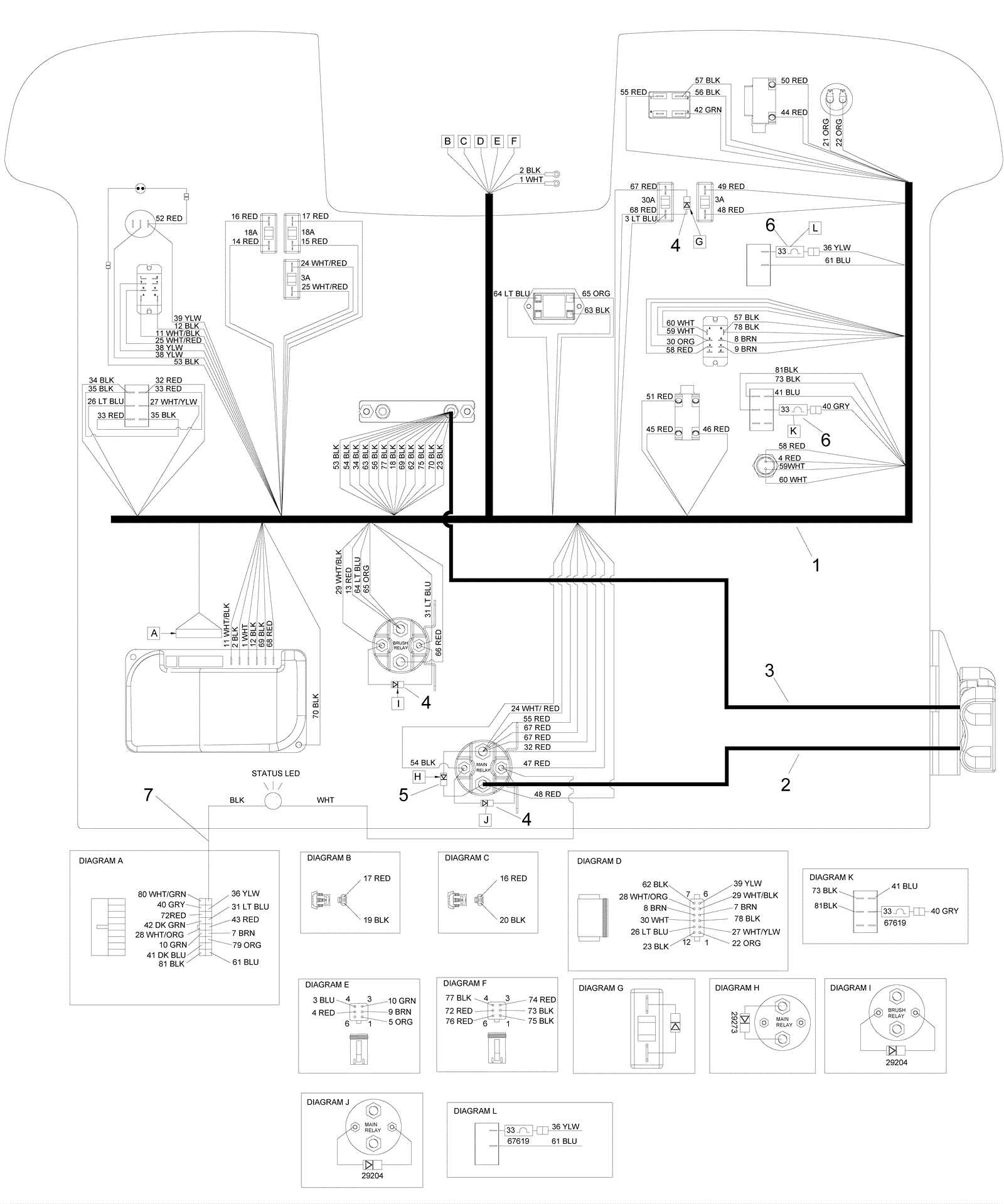

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-6788
|
Control panel harness |
1 |
|
|
2 |
173-6113
|
Wire (red) |
1 |
|
|
3 |
173-8350
|
Wire from battery to charger plug (black) |
1 |
|
|
4 |
173-1716
|
Diode assembly |
3 |
|
|
5 |
173-5604
|
Recovery diode assembly |
1 |
|
|
6 |
173-5331
|
Resistor assembly |
1 |
(SN 1000158030) |
|
7 |
273-6237
|
Indicator code light assembly |
1 |
|
|
