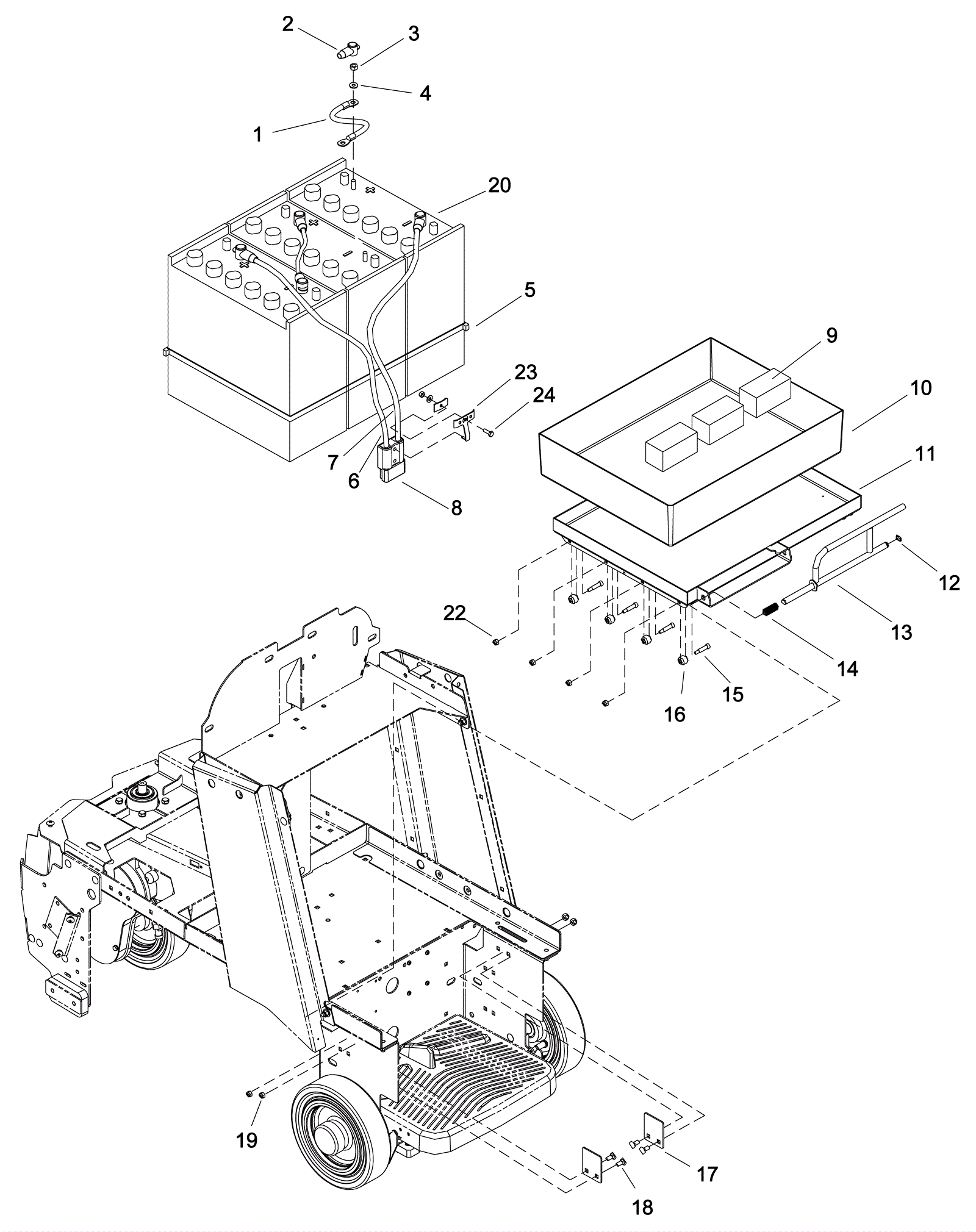

CHARIOT I CAPSOL Battery Wiring Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-5764 Ring style jumper cable (black) $9.00 2 usually ships 7-19 days
1b 189-2105 Clamp style jumper cable (black) $100.05 2 usually ships 11-24 days
1c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $11.63 2 (NON-OEM) usually ships 5-16 days
2 173-3311 Insulated rubber terminal boot $3.36 6 usually ships 7-19 days
3 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 6 ships same day
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
5 173-5594 Cable tie $25.60 2 usually ships 1-5 days
6a 273-5992 Wire 4 x 25 inch ring style (red) $57.00 1 (SN 1000160355) usually ships 7-19 days
6b 173-1704 Wire 4 x 27 inch clamp style (red) $104.00 1 usually ships 7-19 days
7a 273-5993 Wire 4 x 30 inch ring style (black) $71.50 1 usually ships 7-19 days
7b 173-1705 Wire 4 x 27 inch clamp style (black) $104.00 1 usually ships 1-5 days
8 991-2112 175amp charger plug with pins (gray) SB175 $12.87 1 ships same day
9 173-5595 Block $20.90 3 usually ships 1-5 days
10 173-5596 Battery tub $256.00 1 usually ships 1-5 days
11 173-5597 Battery tray $356.00 1 ships same day
12 173-3486 Snap ring $3.78 1 usually ships 7-19 days
13 173-5598 Latch rod $124.00 1 usually ships 7-19 days
14 173-5599 Spring $32.00 1 usually ships 7-19 days
15 999-1056 Bolt 5/16-18 x 1 shoulder stainless steel $32.63 8 ships same day
16 173-5600 Battery tray wheel $29.20 8 usually ships 1-5 days
17 173-5601 Tray stop $14.40 2 usually ships 1-5 days
18 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
20a 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 ships same day
20b 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 ships same day
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
23 273-0049 Cable clamp kit $9.45 1 (SN 1000154660) usually ships 7-19 days
24 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
