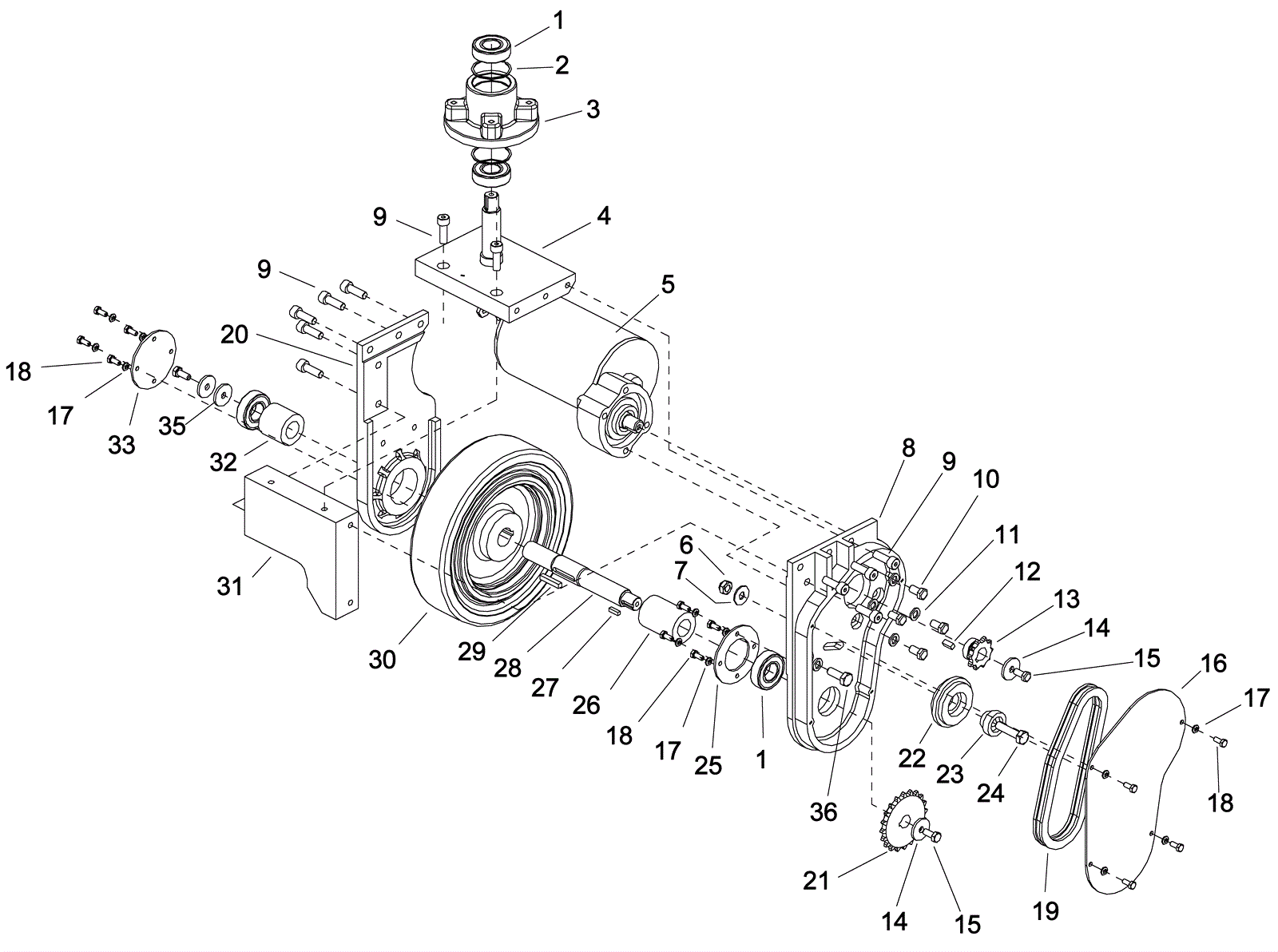

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4756
|
Bearing |
4 |
|
|
2 |
173-4746
|
Internal snap ring |
2 |
|
|
3 |
173-5567
|
Steering hub |
1 |
|
|
4 |
173-5568
|
Shaft assembly |
1 |
|
|
5a |
173-5569
|
36V drive gear motor (OBSOLETE) |
1 |
(includes 5b and 5c) |
|
5b |
273-6270
|
Carbon brush set (OBSOLETE) |
|
|
|
5c |
173-5571
|
Motor armature |
|
|
|
6 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
7 |
173-2548
|
Washer M10 x 30mm plated |
1 |
|
|
8 |
173-5527
|
Drive wheel yoke plate |
1 |
|
|
9 |
273-5988
|
Screw M10-30mm socket head cap |
11 |
|
|
10 |
173-9286
|
Screw 3/8-24 x 3/4 hex cap plated |
4 |
|
|
11 |
999-9099
|
Washer M10 flat stainless steel |
5 |
|
|
13 |
173-5294
|
Motor shaft sprocket (OBSOLETE) |
1 |
|
|
14 |
999-1267
|
Washer M8 flat zinc |
3 |
|
|
15 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
16 |
173-5576
|
Chain cover plate |
1 |
|
|
17 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
12 |
|
|
18 |
173-5577
|
Screw M6-1 x 15mm hex head |
12 |
|
|
19a |
173-8638
|
Chain |
1 |
|
|
19b |
173-5566
|
12.7mm off-set link chain |
|
(service only) |
|
19c |
173-5565
|
Master link |
|
(service only) |
|
20 |
173-5578
|
Right hand drive plate |
1 |
|
|
21 |
273-0088
|
Drive wheel sprocket |
1 |
|
|
22 |
173-5290
|
Chain tensioner |
1 |
|
|
23 |
173-5291
|
Chain tensioner sleeve |
1 |
|
|
24 |
999-1347
|
Screw M10-1.5 x 45mm hex head cap |
1 |
|
|
25 |
173-5579
|
Bearing retainer plate |
1 |
|
|
26 |
273-0085
|
Spacer |
1 |
|
|
27 |
173-5580
|
Square keyway (OBSOLETE) |
1 |
|
|
28 |
273-0087
|
Drive axle |
1 |
|
|
29 |
273-0084
|
Square keyway |
1 |
|
|
30 |
173-5334
|
Drive wheel |
1 |
|
|
31 |
173-5581
|
Front drive yoke plate |
1 |
|
|
32 |
273-0086
|
Spacer |
1 |
|
|
33 |
173-5582
|
Bearing cover plate |
1 |
|
|
34 |
173-5583
|
Drive motor assembly (OBSOLETE) |
1 |
|
|
35 |
273-6240
|
Chain drive axle spacer |
1 |
|
|
36 |
999-1302
|
Screw M10-1.5 x 30mm hex head |
1 |
|
|
