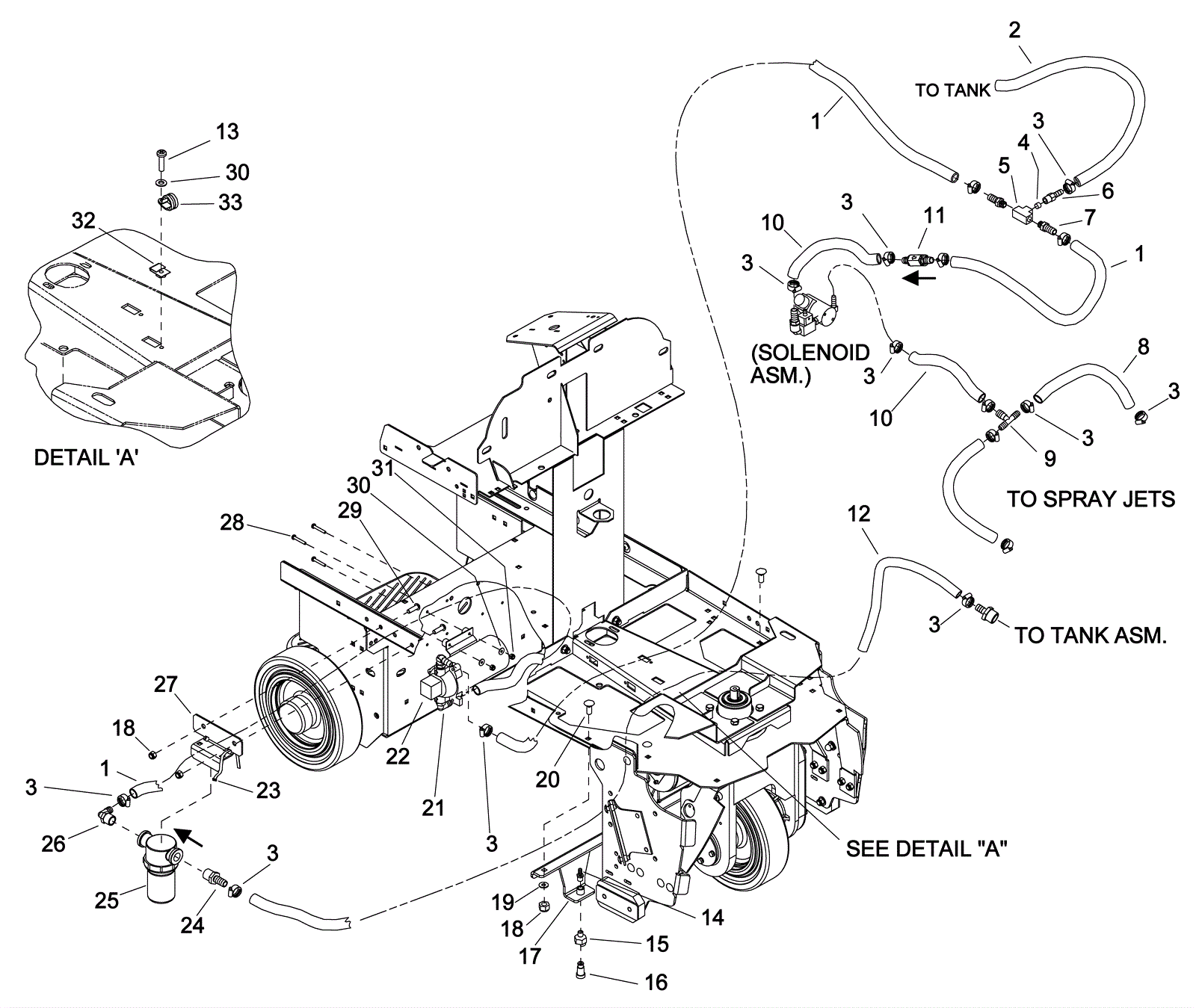

Solution Assembly

#PartDescription ReqNotesAvailability
1 173-9159 Wirebound hose 1/2 x 23 inch 3
2 273-6769 Wire bound hose 3/8 ID x 35 inch (OBSOLETE) 1
3 173-1821 Hose clamp 17
4 273-6770 Plug 1
5 273-6771 1/4 female tee 1
6 273-6772 Hose barb 1
7 173-1929 Hose barb 2
8 173-2713 Wire bound hose 3/8 x 8 inch 2
9 173-1095 Tee fitting 1
10 173-8326 Wire bound hose 1/2 x 8 inch 2
11 173-8583 Check valve 1
12 173-6069 Wire bound hose 1
13 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
14 273-6773 Barb fitting 2
15 173-2210 Jet body 2
16 273-6400 Spray tip 2
17 273-6442 Jet mounting bracket 1
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
19 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
20 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 2
21 173-1072 Hosebarb 3/8 x 1/2 inch 2
22 173-2606 36V pump assembly 1
23 173-3169 Wire tie 2
24 173-3396 Hosebarb 1
25a 273-0039 Solution filter 1
25b 173-8588 Screen filter
26 173-1685 Hosebarb 1/2 x 1/2 inch 1
27 273-6774 Strainer bracket 1
28 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 4
29 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel 2
30 999-0998 Washer #10 flat stainless steel 5
31 999-0442 Nut 10-24 nylon insert lock stainless steel 4
32 173-2576 Nut 10-24 tinnerman (OBSOLETE) 1
33 173-1772 P clamp 1
