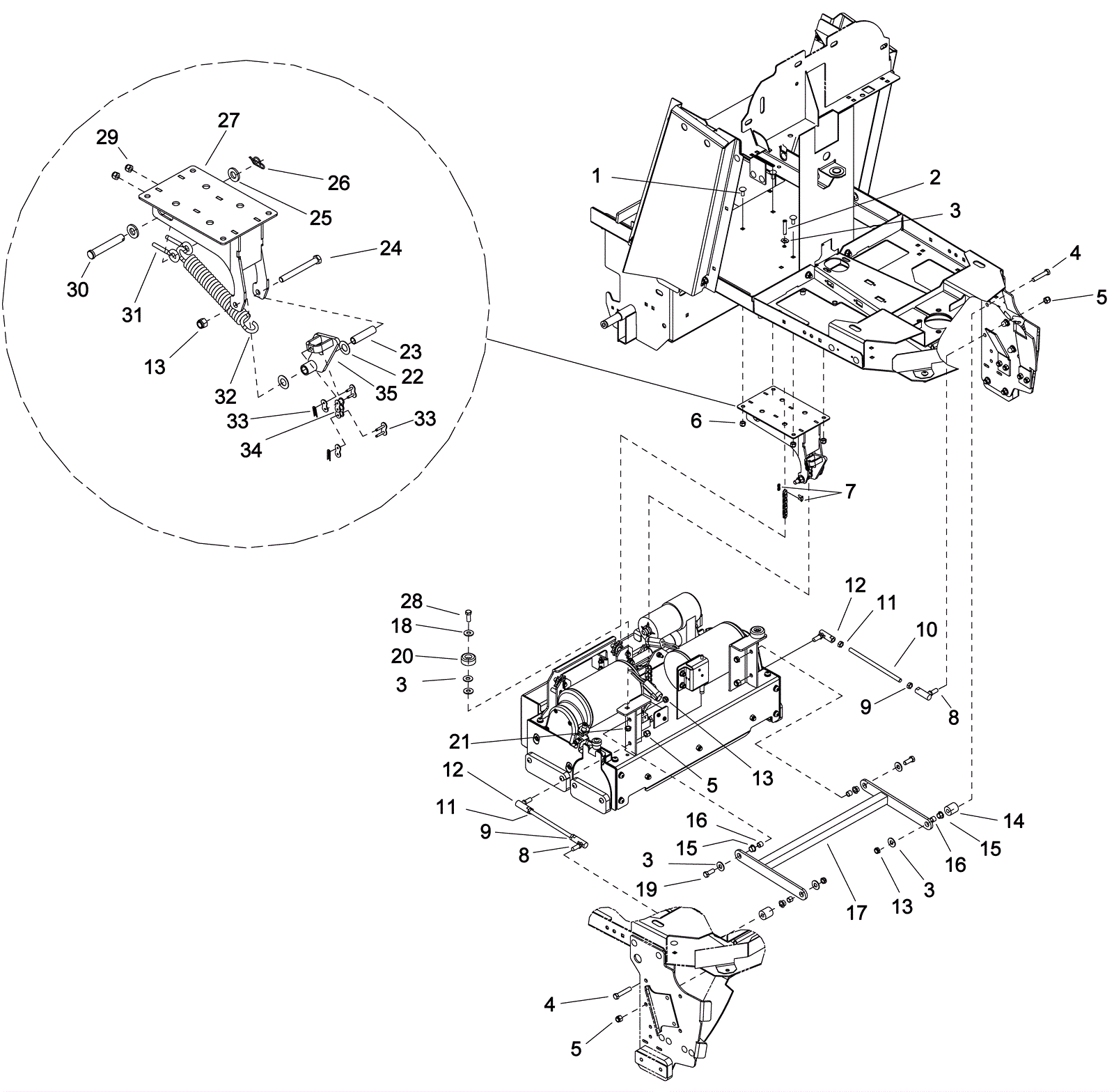

CHARIOT I CAPSOL Scrub Deck Lift Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
2 173-3378 Clevis pin $6.88 1 usually ships 1-5 days
3 173-3985 Washer 7/16 flat stainless steel $1.21 9 usually ships 14-22 days
4 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 2 ships same day
5 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 4 ships same day
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
7 173-3749 Connecting link $11.88 1 usually ships 1-5 days
8 173-1584 Left ball joint $41.47 2 usually ships 14-22 days
9 173-3927 Nut 3/8-24 $3.87 2 usually ships 1-5 days
10 273-5868 Lifting rod $32.56 2 usually ships 1-5 days
11 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
12 173-1594 Right ball joint assembly $35.20 2 usually ships 14-22 days
13 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 5 ships same day
14 273-5866 Spacer $31.46 2 usually ships 1-5 days
15 173-1582 Bearing $6.93 4 usually ships 14-22 days
16 173-1591 Spacer $45.21 4 usually ships 1-5 days
17 273-6765 H-frame weldment $139.70 1 usually ships 1-5 days
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
19 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
20 173-3703 Rubber bumper $18.04 2 usually ships 1-5 days
21 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
22 173-3995 Washer 1/2 Fiber Glide $20.79 2 usually ships 1-5 days
23 273-6766 Tube $16.50 1 (SN 1000157212) usually ships 1-5 days
24 173-5055 Screw 3/8-16 x 2 1/2 $5.10 1 usually ships 1-5 days
25 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 2 usually ships 1-5 days
26 173-1659 1/2 inch cotter ring (OBSOLETE) $2.90 1 usually ships 14-22 days
27 273-6767 Deck lift pivot assembly $213.40 1 (SN 1000157212) usually ships 1-5 days
28 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
29 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
30 273-2020 Clevis pin (OBSOLETE) $8.34 1 (SN 1000157212) usually ships 14-22 days
31 999-1397 Bolt 1/4-20 x 2 eye zinc plated $1.96 2 usually ships 1-5 days
32 273-2016 Spring $83.60 1 usually ships 1-5 days
33 173-1065 Master link #40 1/2 chain $6.55 1 usually ships 1-5 days
34 273-2018 Chain $5.78 1 usually ships 1-5 days
35 273-6768 Pivot arm weldment $126.75 1 (SN 1000157212) usually ships 1-5 days
