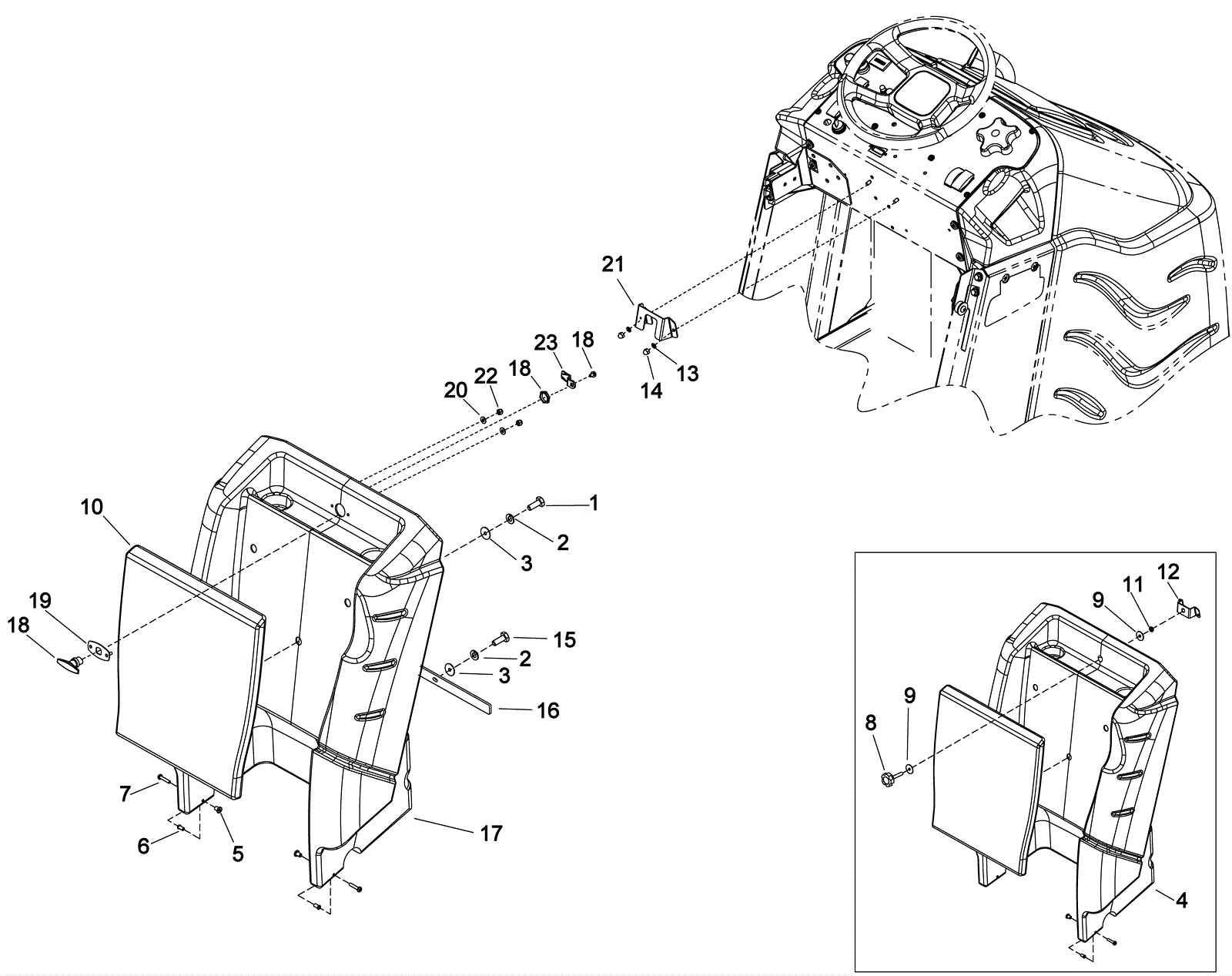

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
3 |
|
|
2 |
999-0028
|
Washer 5/16 split lock plain finish |
5 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
4 |
173-5519
|
Rear cover |
1 |
|
|
5 |
173-8380
|
Nut 1/4-20 x 12 hex barrel (OBSOLETE) |
2 |
|
|
6 |
173-5520
|
Flanged bearing |
2 |
|
|
7 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
|
8 |
173-7402
|
Knob |
1 |
|
|
9 |
173-3985
|
Washer 7/16 flat stainless steel |
2 |
|
|
10 |
173-5521
|
Leaning pad |
1 |
|
|
11 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
12 |
173-7403
|
Bracket |
1 |
|
|
13 |
999-1049
|
Washer 1/4 split lock zinc plated |
2 |
|
|
14 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
2 |
|
|
15 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
16 |
173-5523
|
Bar |
1 |
|
|
17 |
273-5801
|
Rear cover |
1 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
18 |
273-5802
|
Handle cam latch |
1 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
19 |
273-5803
|
Latch plate |
1 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
20 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
21 |
273-5804
|
Rear cover bracket |
1 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
22 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
23 |
273-5805
|
Handle pawl |
1 |
(CI24: SN10060170000036, CIE24: SN10060190000007) |
|
