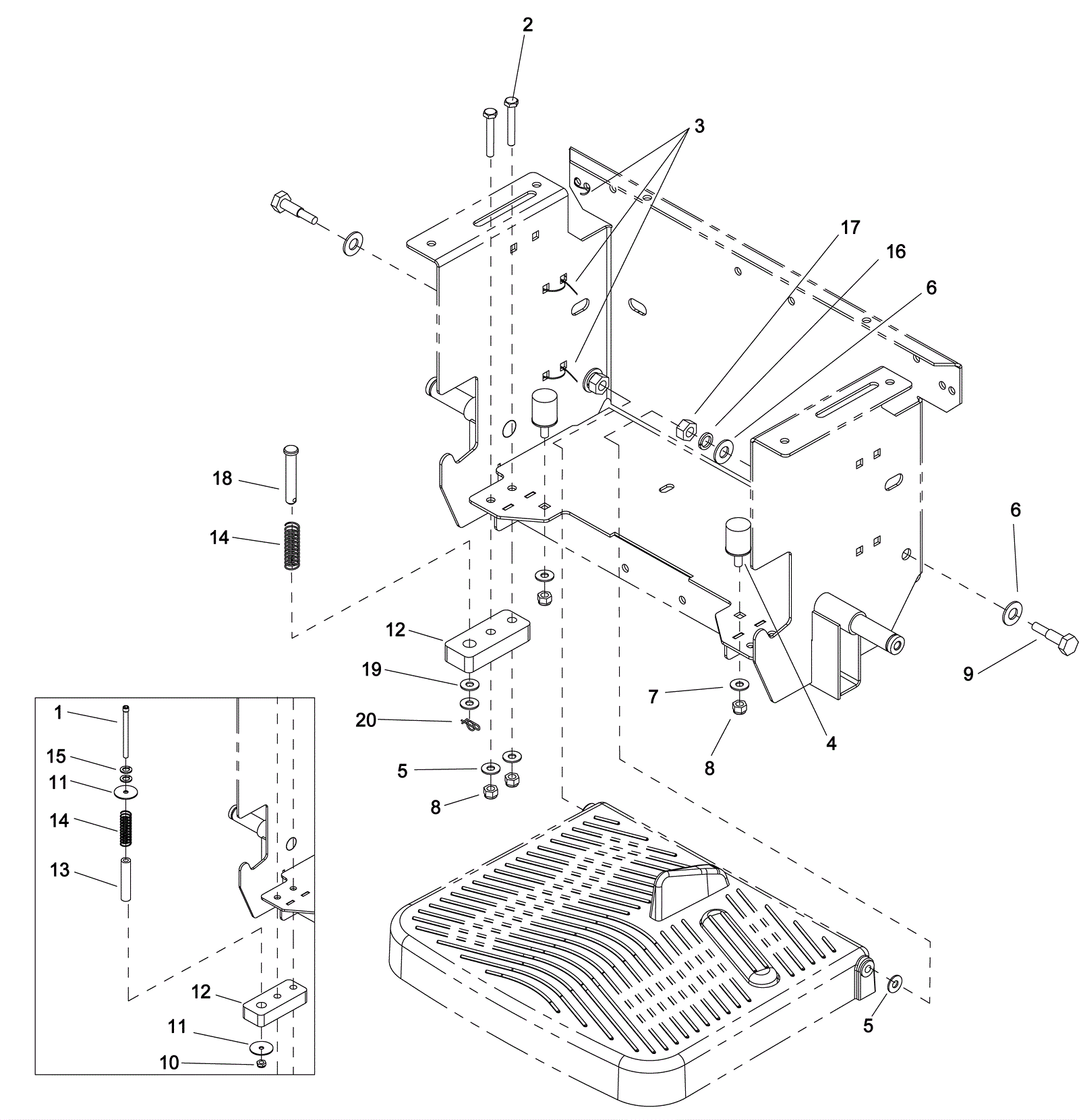

CHARIOT I CAPSOL Upper Pedal Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5508 Cotter pin (OBSOLETE) $5.06 1 usually ships 7-19 days
2 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 2 ships same day
3 173-3169 Wire tie $0.94 3 usually ships 1-5 days
4 173-5509 Rubber bumper $38.00 2 usually ships 1-5 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
6 999-1346 Washer M12 flat stainless steel $0.99 4 ships same day
7 173-3985 Washer 7/16 flat stainless steel $1.10 2 usually ships 7-19 days
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
9 173-5511 Stub axle $23.80 2 usually ships 1-5 days
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
11 999-6684 Washer 1/4 flat stainless steel $0.99 2 usually ships 11-24 days
12 173-5512 Base plate (OBSOLETE) $39.60 1 usually ships 7-19 days
13 173-5513 Spacer $123.00 1 usually ships 1-5 days
14 189-0353 Compression spring $14.23 1 usually ships 7-19 days
15 173-5514 Washer 1/4 lock hicollar plated $0.90 2 usually ships 1-5 days
16 173-5515 Washer M12 spring lock $1.10 2 usually ships 1-5 days
17 173-3878 Nut M12 x 1.75 hex $3.25 2 usually ships 1-5 days
18 173-5516 Clevis pin (OBSOLETE) $13.40 1 (SN1000157501) usually ships 7-19 days
19 999-0566 Washer 1/2 flat nylon $0.99 2 (SN1000157501) ships same day
20 173-1659 1/2 inch cotter ring (OBSOLETE) $2.64 1 (SN1000157501) usually ships 7-19 days
