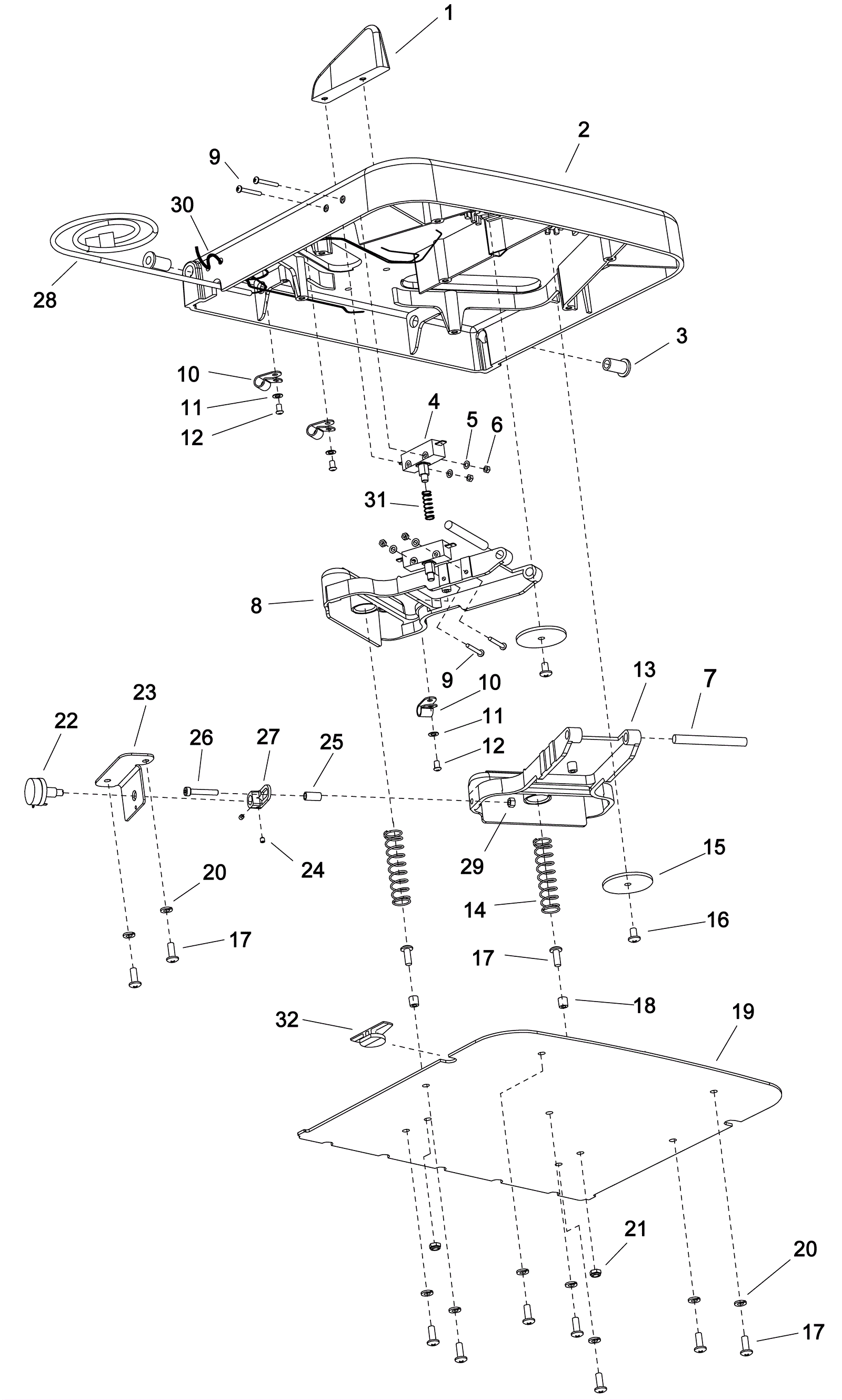

CHARIOT I CAPSOL Lower Pedal Platform Assembly - After SN 10060170000035 and SN10060190000006

#PartDescriptionPriceReqNotesAvailability
1 173-5482 Divider $26.50 1 usually ships 1-5 days
2 173-5483 Platform $831.00 1 usually ships 1-5 days
3 173-5484 Flanged bushing $6.20 2 usually ships 7-19 days
4 173-0378 25amp switch replacement $59.50 2 ships same day
5 173-5485 Washer M4 internal star lock $0.90 4 usually ships 7-19 days
6 999-1419 Nut M3-.5 hex stainless steel $0.99 4 ships same day
7 173-5487 Pivot rod $7.20 2 usually ships 1-5 days
8 173-5488 Brake pedal $109.39 1 usually ships 1-5 days
9 273-6286 Screw M3.5 x 38 pan head $1.68 4 usually ships 1-5 days
10 173-1709 P clamp (OBSOLETE) $2.09 3 usually ships 7-19 days
11 173-5490 Washer M5 internal star lock $0.90 4 usually ships 1-5 days
12 173-5491 Screw M4.8 x 16mm phillips thread forming $1.71 4 usually ships 1-5 days
13 173-5492 Throttle pedal $85.50 1 usually ships 1-5 days
14 173-5493 Spring $9.65 2 usually ships 7-19 days
15 173-5494 Pivot plate (OBSOLETE) $4.02 2 usually ships 7-19 days
16 999-1417 Screw M6-1 x 10mm pan head phillips zinc plated $0.99 2 usually ships 1-5 days
17 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 11 ships same day
18 173-5497 Spacer $1.80 2 usually ships 7-19 days
19 173-5498 Plate $56.00 1 usually ships 1-5 days
20 999-0876 Washer M6 split lock plain finish $0.99 9 ships same day
21 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
22 173-9143 Potentiometer $114.00 1 usually ships 7-19 days
23 173-5500 Throttle plate $7.70 1 usually ships 1-5 days
24 999-9156 Screw M4-.7 x 4mm cup point set $0.99 2 usually ships 11-24 days
25 173-5502 Spacer $2.16 1 usually ships 1-5 days
26 273-6287 Screw M5 x 3 socket head $1.80 1 usually ships 1-5 days
27 273-6244 Link $14.90 1 usually ships 1-5 days
28 173-5505 Pedal harness $108.00 1 usually ships 1-5 days
29 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
30 173-3169 Wire tie $0.94 1 usually ships 1-5 days
31 173-0923 Spring $1.82 1 (SN1000157501) usually ships 7-19 days
32 173-5507 Switch plunger (OBSOLETE) $149.00 1 (SN1000157501) usually ships 7-19 days
