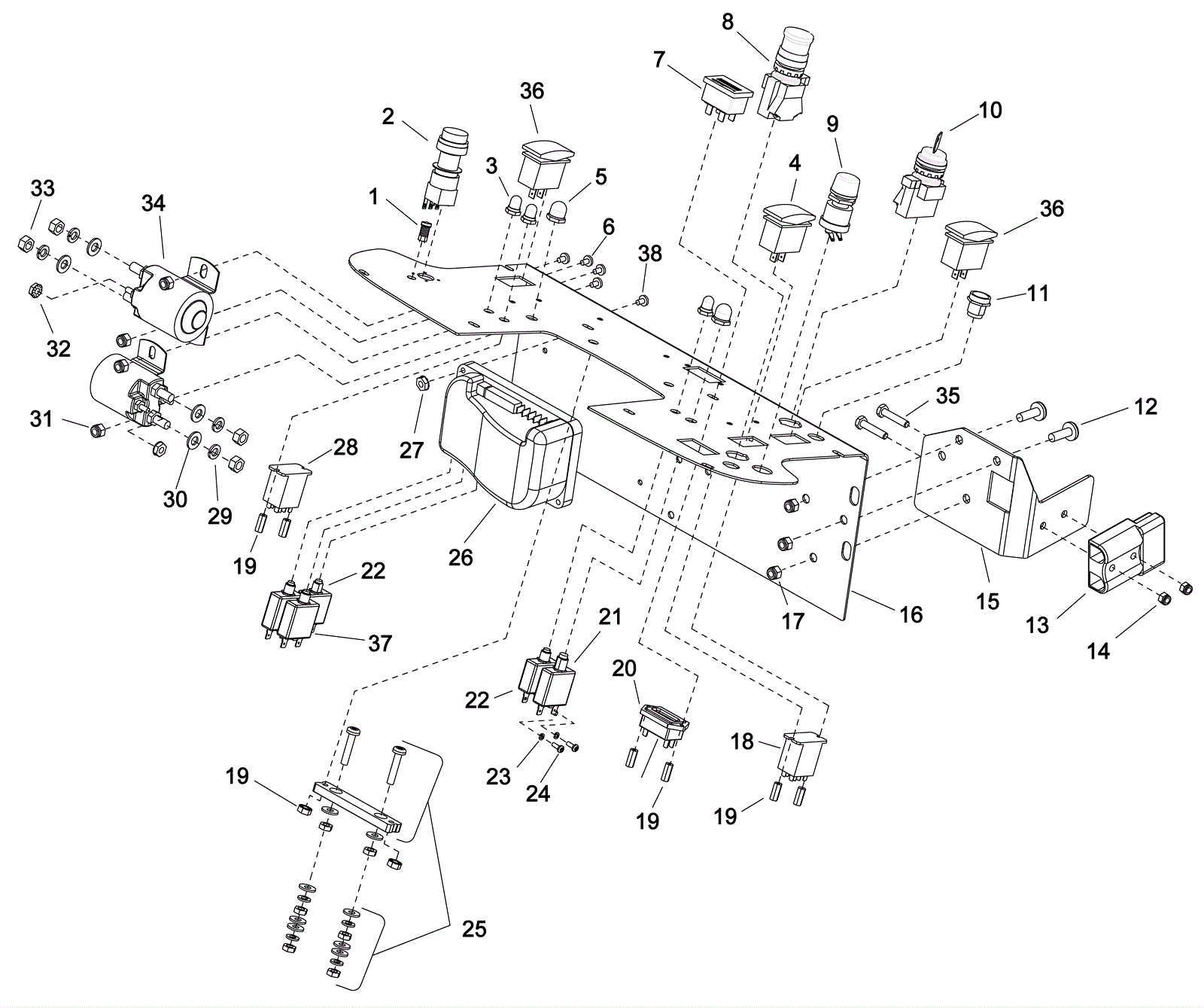

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 273-0255 Light assembly 1
2 173-5413 Button switch 1
3 189-0312 3/8 inch circuit breaker boot 3
4 189-0319 2 position rocker switch 1
5a 173-1522 3/8 inch circuit breaker boot 2
5b 991-5157 3/8 inch circuit breaker boot 2 (NON-OEM)
6 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel 4
7 173-4643 36V battery meter 1
8 173-1531 Emergency stop switch 1
9 173-3502 Momentary switch 1
10a 173-8560 Master key switch 1
10b 173-3958 Key (pkg of 2) 1
11 173-4641 Push button switch 1
12 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc 3
13 991-2112 175amp charger plug with pins (gray) SB175 1
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
15 273-5771 Bracket 1
16 273-6752 Control panel 1
17 999-0423 Nut 5/16-18 nylon insert lock stainless steel 3
18 273-0032 Relay 1
19 173-1520 Nylon standoff 8
20 173-1160 LED hour meter 1
21 991-1629 35amp circuit breaker 1
22 991-1624 3amp circuit breaker 2
23 999-0051 Washer #6 medium split lock 2
24 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
25 173-4647 Shunt mounting block 1
26 273-6753 Controller 1
27 999-0442 Nut 10-24 nylon insert lock stainless steel 2
28 173-8697 Relay 1
29 999-0028 Washer 5/16 split lock plain finish 4
30 173-3912 Washer .344 x .066 flat head (OBSOLETE) 4
31 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
32 173-2472 Nut 10-32 with star washer 4
33 173-5044 Nut 1/4-28 stop elastic 4
34 991-1227 36V solenoid 4 post (2 large 2 small) 2
35 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
36 173-2277 2 position rocker switch 2
37 273-0038 18amp circuit breaker 2
38 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
