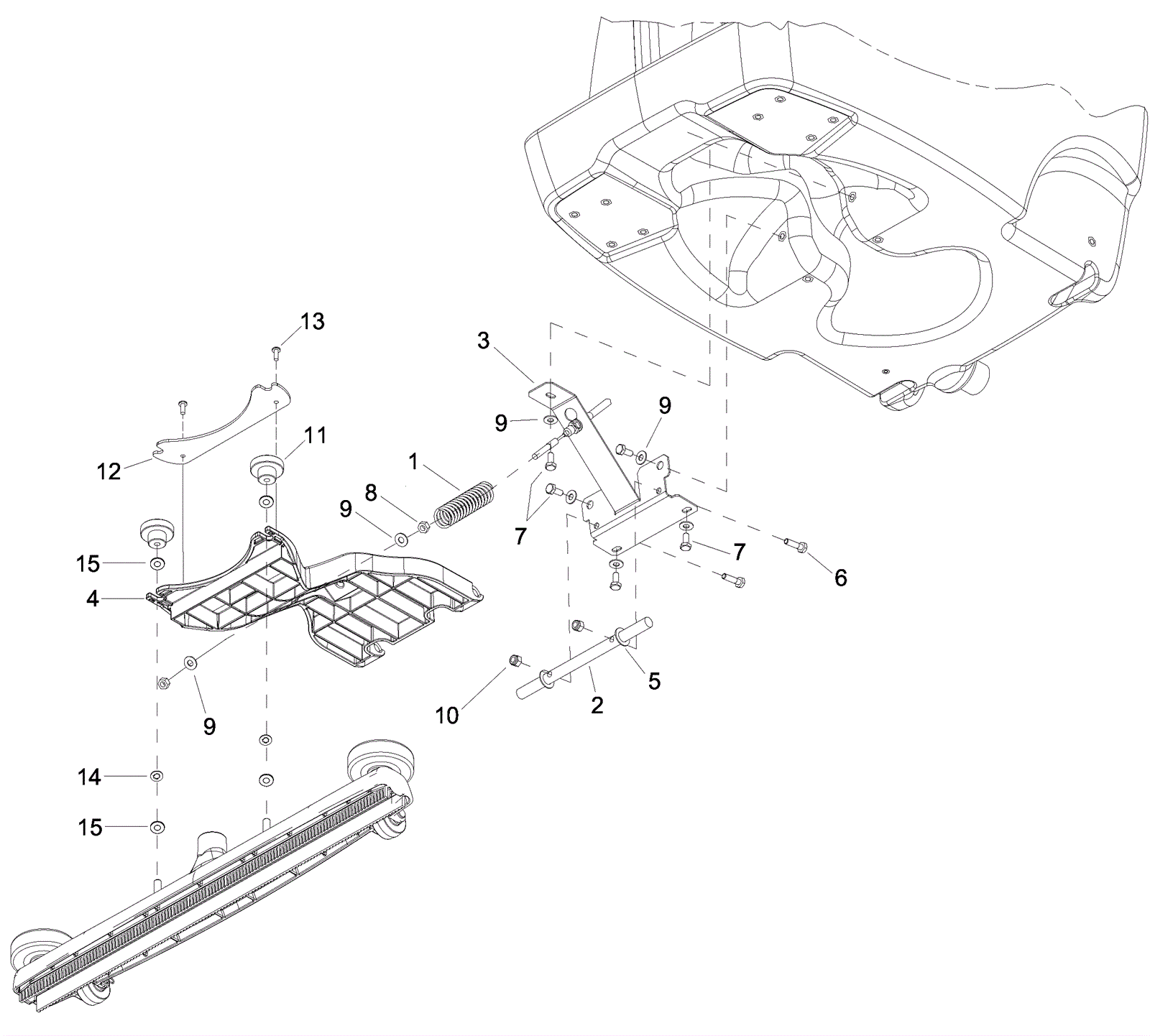

RECOVER 18 (GRAY) Squeegee Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6812 Spring $14.90 1 usually ships 7-19 days
2 273-6813 Shaft $17.80 1 usually ships 1-5 days
3 273-6814 Retainer bracket $34.00 1 usually ships 7-19 days
4 273-6790 Squeegee pivot arm $53.51 1 ships same day
5 173-2581 Washer flat $0.94 2 usually ships 7-19 days
6 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 2 ships same day
7 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 5 ships same day
8 999-0651 Nut 1/4-28 hex stainless steel $0.99 2 ships same day
9 999-0123 Washer 1/4 SAE flat zinc plated $0.99 7 ships same day
11 173-3184 Knob $43.90 2 usually ships 7-19 days
12 273-6815 Plate $11.90 1 usually ships 7-19 days
13 173-2566 Screw #10 x 1/2 pan head $0.94 2 ships same day
14 999-0548 Washer 5/16 external star lock stainless steel $0.99 2 ships same day
15 173-3985 Washer 7/16 flat stainless steel $1.10 4 usually ships 7-19 days
