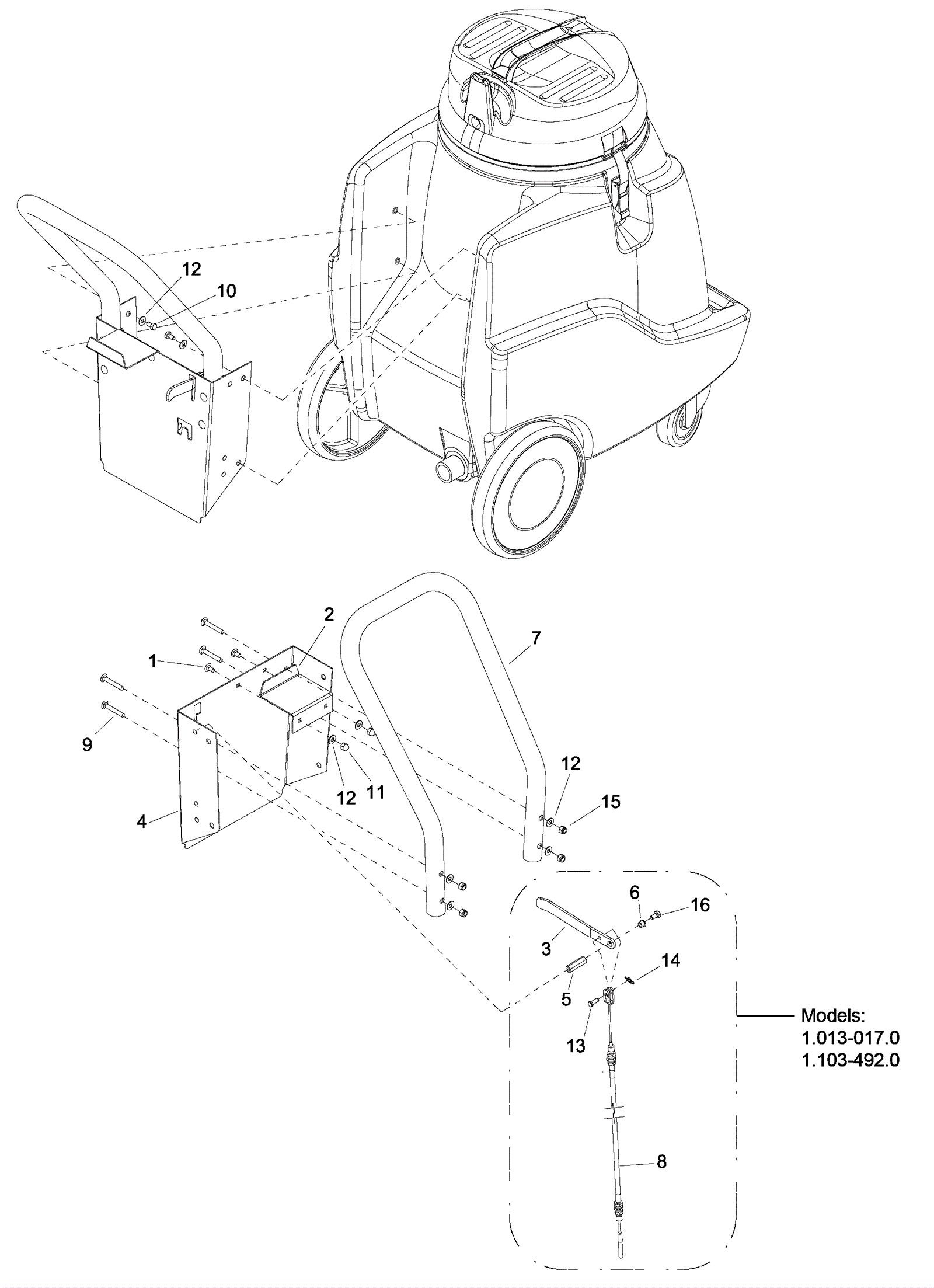

Handle Assembly

#PartDescription ReqNotesAvailability
1 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 2
2 273-6792 Sign holder plate 1
3 273-6793 Squeegee lift handle 1 Except model 1.013-019.0
4 273-6794 Back panel plate 1
5 273-6795 Standoff 1 Except model 1.013-019.0
6 273-6796 Flanged bearing 1 Except model 1.013-019.0
7 273-6797 Vacuum handle 1
8 273-6798 Squeegee lift cable 1 Except model 1.013-019.0
9 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 4
10 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
11 999-1344 Nut 1/4-20 acorn stainless steel 2
12 999-0123 Washer 1/4 SAE flat zinc plated 12 Except model 1.013-019.0
13 173-3153 Clevis pin 1 Except model 1.013-019.0
14 173-1130 Cotter ring 1 Except model 1.013-019.0
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6 Except model 1.013-019.0
