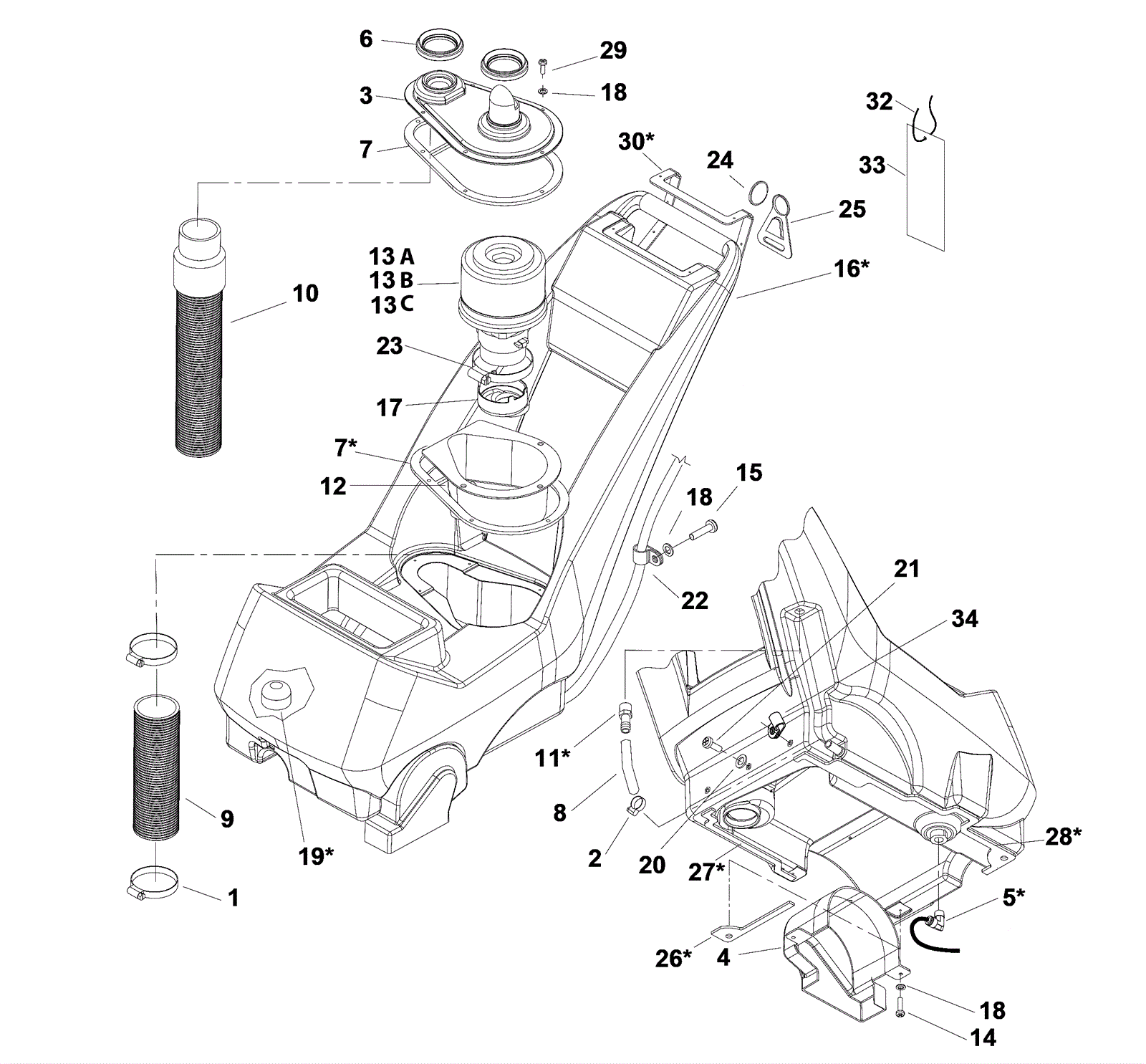

CADET CDT7 (GRAY) Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5693 Hose clamp $2.84 3 ships same day
2 173-1821 Hose clamp $6.39 1 ships same day
3 173-2230 Vacuum motor cover $78.11 1 usually ships 7-19 days
4 173-2231 Belt cover $41.47 1 usually ships 7-19 days
5 189-4166 Elbow 3/8 x 3/8 inch $42.68 1 usually ships 11-24 days
6 173-2233 Gasket $24.20 2 ships same day
7 173-2234 Gasket $48.51 2 ships same day
8 173-2235 Hose 1/2 x 12 inch (clear) $21.12 1 usually ships 7-19 days
9 173-0626 Hose 1 1/2 x 3 inch (black) $24.20 1 usually ships 7-19 days
10 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 11-24 days
11 173-5214 Hosebarb 3/8 x 1/2 inch nylon $14.41 1 usually ships 7-19 days
12 173-2238 Vacuum motor housing $25.41 1 usually ships 7-19 days
13a 173-2239 120V vacuum motor assembly $742.50 1 usually ships 7-19 days
14 173-2454 Screw 10-3/4 polyfast $1.40 2 ships same day
15 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 After SN 1000032156 ships same day
16 173-5215 Solution tank $569.80 1 usually ships 1-5 days
17 173-0629 Cooling vent $50.71 1 usually ships 7-19 days
18 999-0998 Washer #10 flat stainless steel $0.99 10 ships same day
19 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
20 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
21 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
22 173-2094 P clamp $1.40 2 usually ships 1-5 days
23 173-2242 Hose clamp $15.07 1 usually ships 7-19 days
24 173-2182 2 inch split ring $1.40 1 usually ships 1-5 days
26 173-2243 Front left tank gasket $7.32 1 usually ships 7-19 days
27 173-2244 Rear left tank gasket $9.35 1 usually ships 7-19 days
28 173-2245 Right tank gasket (OBSOLETE) $24.20 1 ships same day
29 173-0627 Screw 10 x 1 pan head phillips self tapping type b $4.18 6 usually ships 7-19 days
30 173-5216 Panel gasket $38.06 1 usually ships 7-19 days
31 173-5217 Soltuion tank assembly $664.40 1 Includes 5, 7, 11, 16, 19, 26-28, 30 usually ships 1-5 days
32 173-3412 Cord 1/8 x 12 inch $13.09 1 usually ships 7-19 days
33 273-4013 Instruction card $5.12 1 usually ships 1-5 days
34 273-4014 Cable clamp 1/2 x 1/4 inch $5.17 1 usually ships 1-5 days
