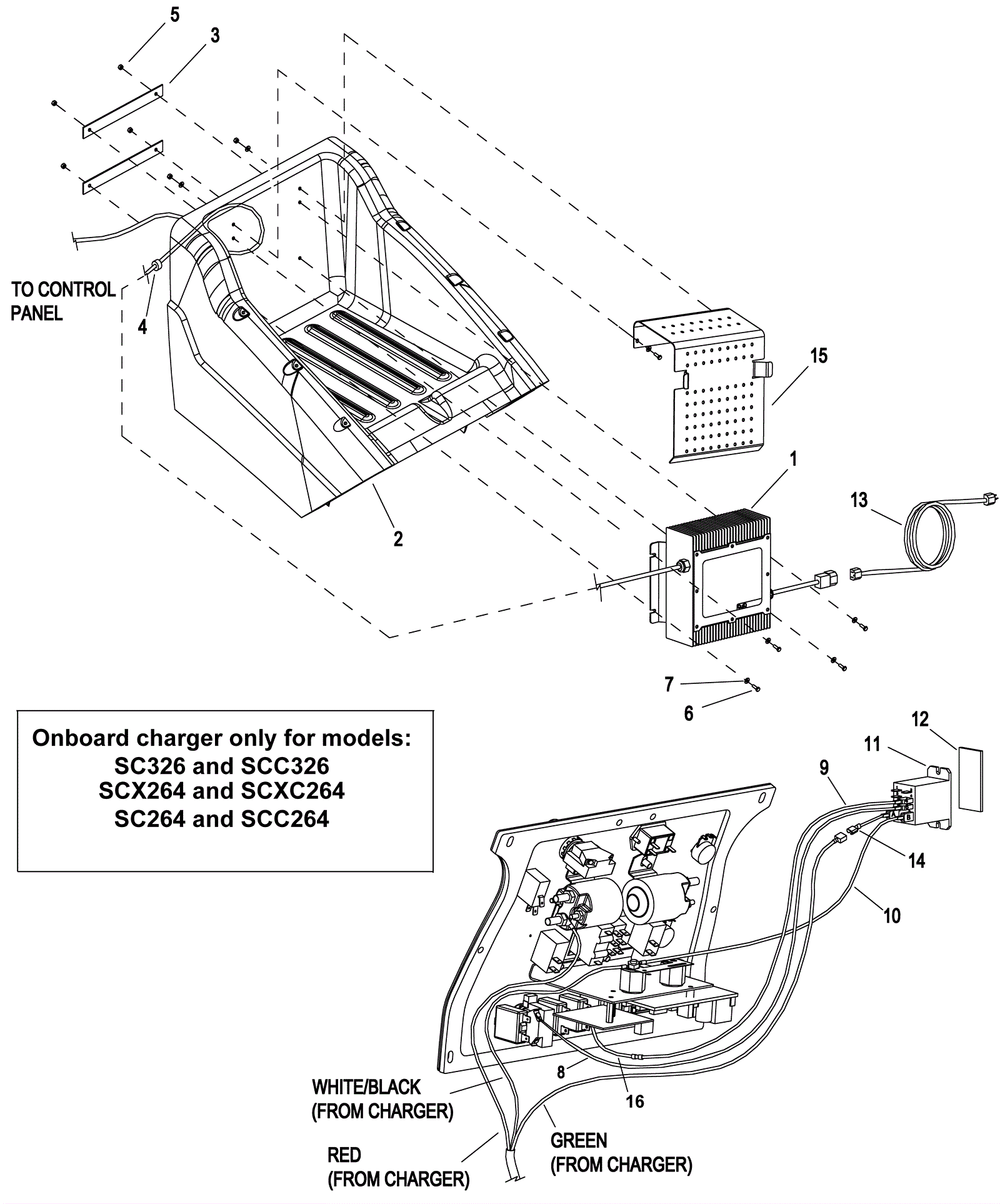

SABER CUTTER 32 Onboard Battery Charger - 24V and 36V

#PartDescription ReqNotesAvailability
1a 173-8618 24V Delta Q onboard charger 1 (24V) usually ships 14-20 days
1b 173-6127 36V Delta Q onboard charger 1 (36V) usually ships 1-5 days
2a 173-6128 Top cover 1 (24V) usually ships 1-5 days
2b 173-6129 Top cover 1 (36V) usually ships 1-5 days
3 173-6136 Delta Q charger bracket 2 usually ships 1-5 days
4 173-0686 Grommet 1 usually ships 14-20 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6 usually ships 11-14 days
6 173-6130 Screw 1/4-20 x 1 button head 6 usually ships 1-5 days
7 999-0016 Washer 1/4 flat plain finish 8 usually ships 11-14 days
8 173-6131 20 inch wire (red) 1 usually ships 1-5 days
9 173-6132 12 inch wire (red) 1 usually ships 1-5 days
10 173-6133 20 inch wire (black) 1 usually ships 1-5 days
11a 173-8697 Relay 1 (24V) usually ships 14-20 days
11b 273-0032 Relay 1 (36V) usually ships 14-20 days
12 N/A Not available 1 Tape usually ships 3-26 days
13 173-5940 16/3 onboard charger extension cord 1 usually ships 14-20 days
14 173-6134 2 inch wire (green) 1 usually ships 1-5 days
15 173-6135 Charger cover 1 usually ships 1-5 days
16 173-1532 16 inch strip wire (red) 1 usually ships 1-5 days
