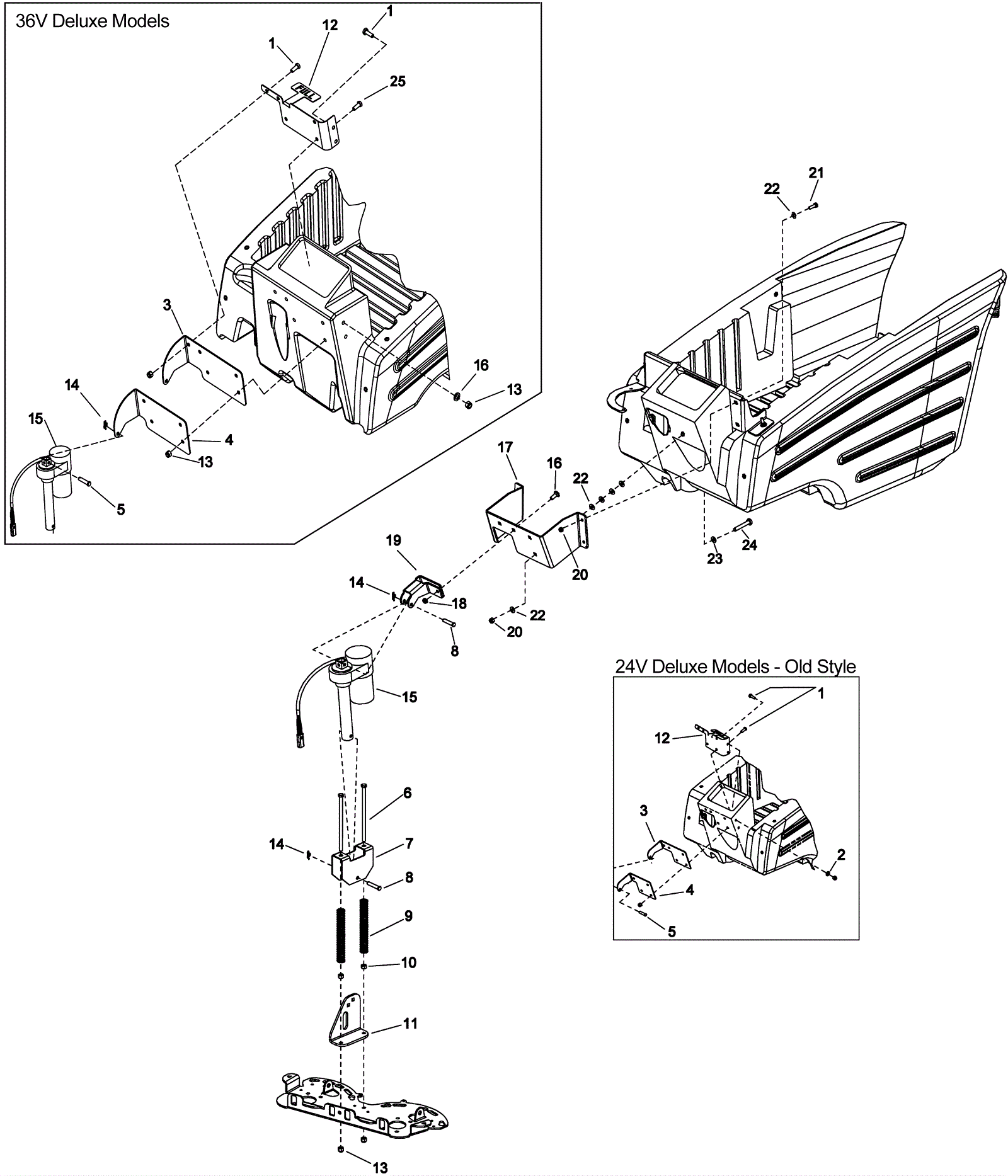

SABER CUTTER 32 Actuator Assembly - 24V and 36V Deluxe

#PartDescription ReqNotesAvailability
1a 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 7 (24V deluxe) usually ships 11-14 days
1b 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 5 (36V deluxe) usually ships 11-14 days
2 189-1562 Washer 3/8 x 3/4 sealing outer diameter 2 usually ships 13-20 days
3a 173-2814 Rear actuator mounting bracket (OBSOLETE) 1 (24V deluxe) usually ships 1-5 days
3b 173-4352 Rear actuator mounting bracket 1 (36V deluxe) usually ships 1-5 days
4a 173-2817 Front actuator mounting bracket (OBSOLETE) 1 (24V deluxe) usually ships 1-5 days
4b 173-4353 Front actuator mounting bracket 1 (36V deluxe) usually ships 1-5 days
5 173-3732 Clevis pin 1 usually ships 1-5 days
6 173-2818 Screw 3/8-16 x 7 hex head cap stainless steel 2 usually ships 1-5 days
7 173-2819 Actuator tube bracket 1 usually ships 14-20 days
8 173-1595 Clevis pin (OBSOLETE) 1 usually ships 16-21 days
9 173-2820 Compression spring 2 usually ships 1-5 days
10 999-0170 Nut 3/8-16 hex plain finish 2 usually ships 11-14 days
11 173-2821 Deck mounting bracket 1 usually ships 1-5 days
12a 173-8318 Solution fill bracket 1 (24V deluxe) usually ships 1-5 days
12b 173-4305 Solution fill bracket 1 (36V deluxe) usually ships 1-5 days
13a 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 7 (24V deluxe) usually ships 11-14 days
13b 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 9 (36V deluxe) usually ships 11-14 days
14 173-1593 Cotter ring (OBSOLETE) 2 usually ships 14-20 days
15a 173-1598 24V actuator 1 (24V deluxe) usually ships 14-20 days
15b 273-0091 36V actuator 1 (36V deluxe) usually ships 14-20 days
16 999-1242 Screw 3/8-16 x 1 oval head stainless steel 2 usually ships 1-5 days
17 173-9851 Tank brace bracket 1 usually ships 1-5 days
18 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2 usually ships 11-14 days
19 173-6126 Actuator mounting bracket 1 usually ships 1-5 days
20 999-0423 Nut 5/16-18 nylon insert lock stainless steel 5 usually ships 11-14 days
21 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4 usually ships 11-14 days
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 9 usually ships 11-14 days
23 999-1094 Washer 5/16 bonded sealing stainless steel 1 (after SN 1000141108) usually ships 11-14 days
24 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 1 (after SN 1000141108) usually ships 11-14 days
