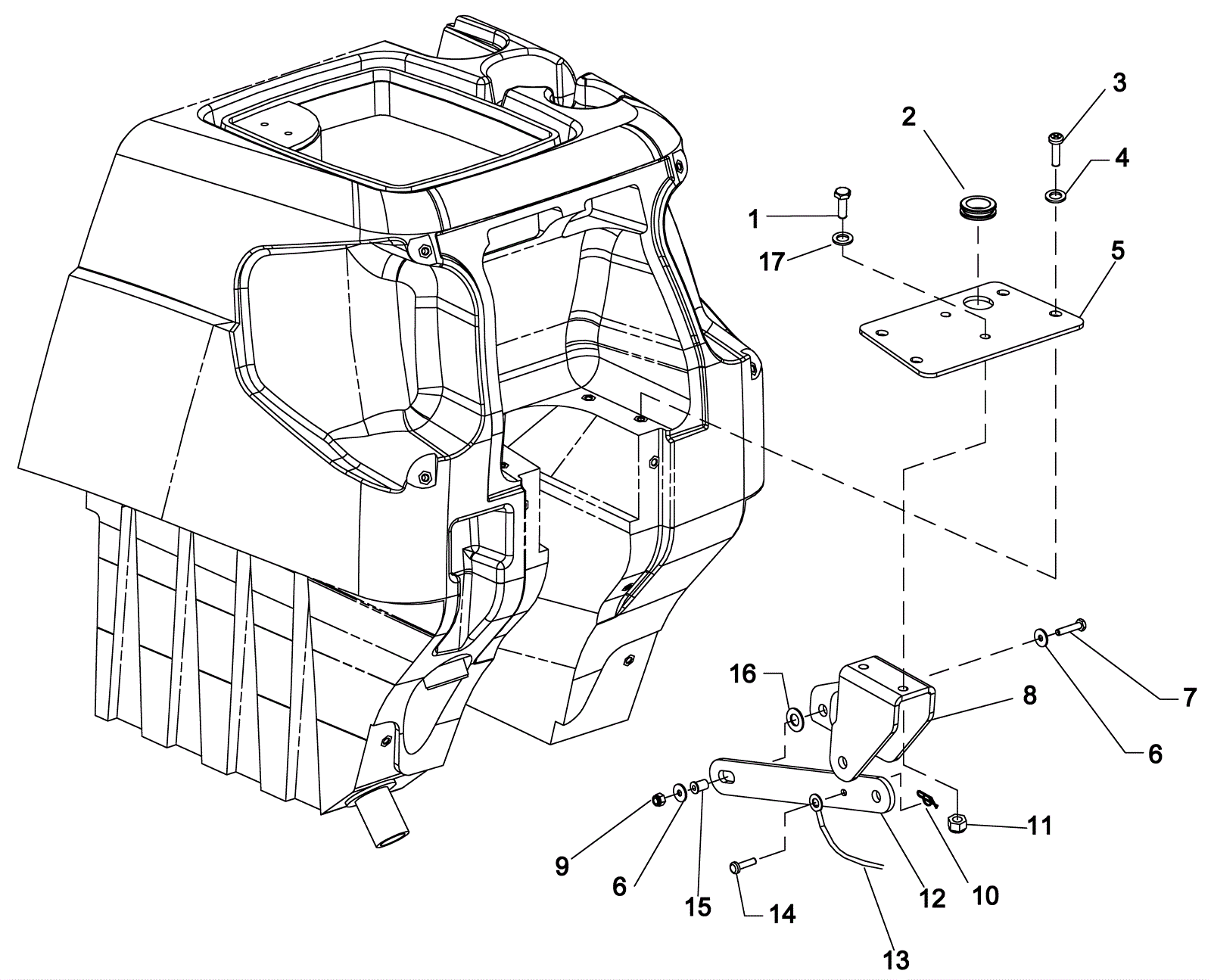

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
2 |
|
ships same day |
2 |
173-1681
|
Grommet |
$0.99
|
1 |
|
usually ships 7-19 days |
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
5 |
173-8256
|
Pivot plate |
$51.70
|
1 |
|
usually ships 1-5 days |
6 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
2 |
|
ships same day |
7 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
8 |
173-8257
|
Scrub deck pivot bracket |
$122.10
|
1 |
|
usually ships 7-19 days |
9 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
1 |
|
ships same day |
10 |
173-1130
|
Cotter ring |
$2.42
|
1 |
|
ships same day |
11 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
$3.96
|
2 |
|
ships same day |
12 |
173-8260
|
Squeegee lift linkage |
$29.59
|
1 |
|
usually ships 7-19 days |
13 |
173-2848
|
Squeegee lift cable |
$108.35
|
1 |
|
usually ships 7-19 days |
14 |
173-3153
|
Clevis pin |
$6.38
|
1 |
|
usually ships 7-19 days |
15a |
173-8258
|
Flanged bearing |
$11.33
|
3 |
(26 inch - 24V standard) |
ships same day |
15b |
173-8258
|
Flanged bearing |
$11.33
|
1 |
(26 inch - 24V deluxe) |
ships same day |
16a |
173-3963
|
Washer 1/2 thrust |
$7.32
|
3 |
(26 inch - 24V standard) |
usually ships 7-19 days |
16b |
173-3963
|
Washer 1/2 thrust |
$7.32
|
1 |
(26 inch - 24V deluxe) |
usually ships 7-19 days |
17 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
2 |
|
ships same day |
