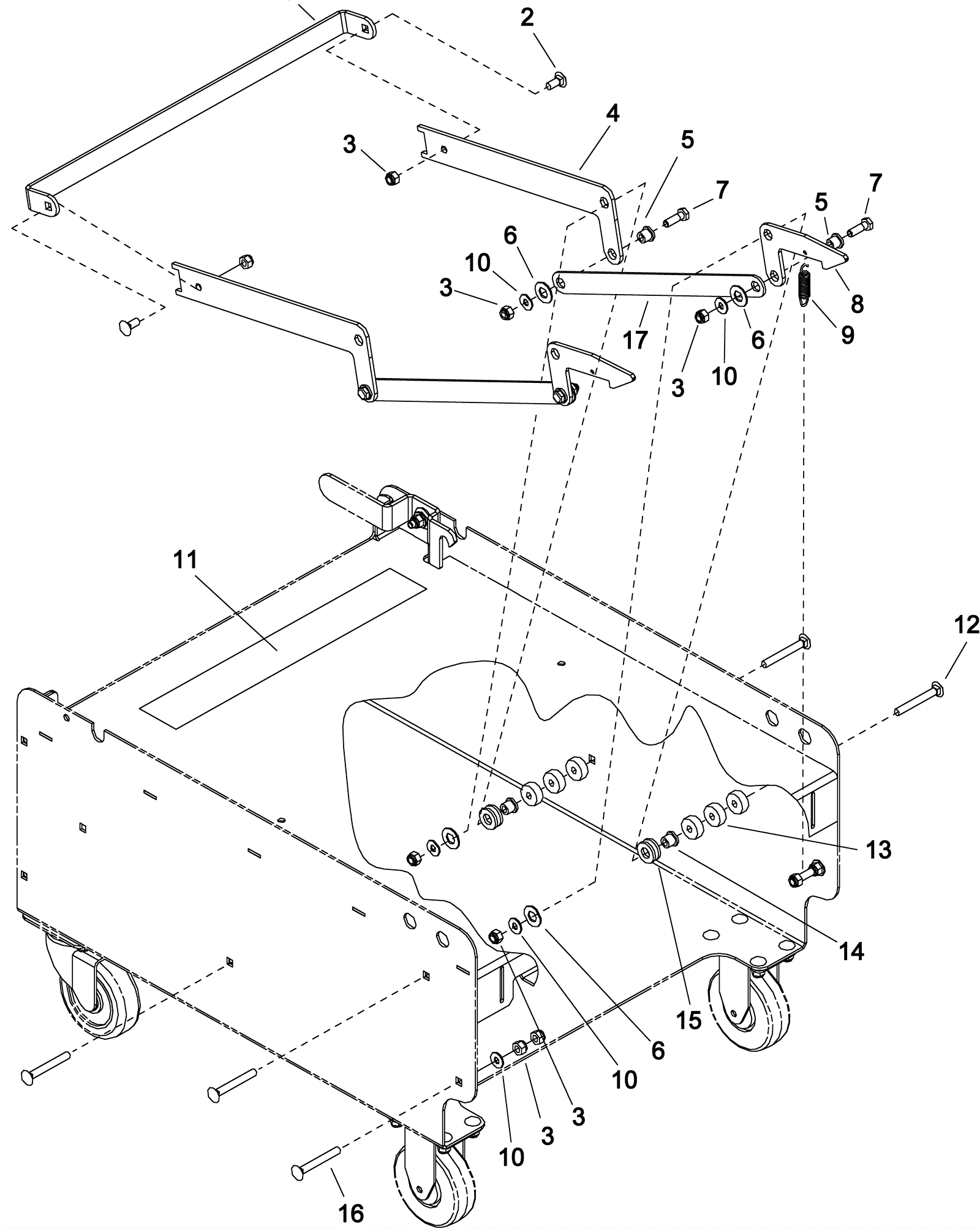

CHARIOT IVACUUM Battery Cart Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 173-5626 Battery cart pedal $58.30 1 usually ships 1-5 days
2 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 12 ships same day
4 173-5627 Battery cart pedal $35.97 2 usually ships 1-5 days
5 173-3116 Flanged bearing $8.47 4 usually ships 7-19 days
6 173-3964 Thrust washer $6.44 6 ships same day
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
8 173-5628 Battery cart latch $21.89 2 usually ships 1-5 days
9 173-8442 Extension spring $27.45 2 usually ships 7-19 days
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
11 173-5629 Battery cart operation decal $110.00 1 usually ships 1-5 days
12 173-5630 Screw 5/16-18 x 2 1/2 carriage head grade 5 $3.84 4 usually ships 1-5 days
13 173-5480 Spacer $3.63 12 usually ships 1-5 days
14 273-0024 Flanged bearing $9.02 4 usually ships 7-19 days
15 173-3963 Washer 1/2 thrust $7.32 8 usually ships 7-19 days
16 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 16 ships same day
17 173-5631 Latch linkage $27.17 2 usually ships 1-5 days
