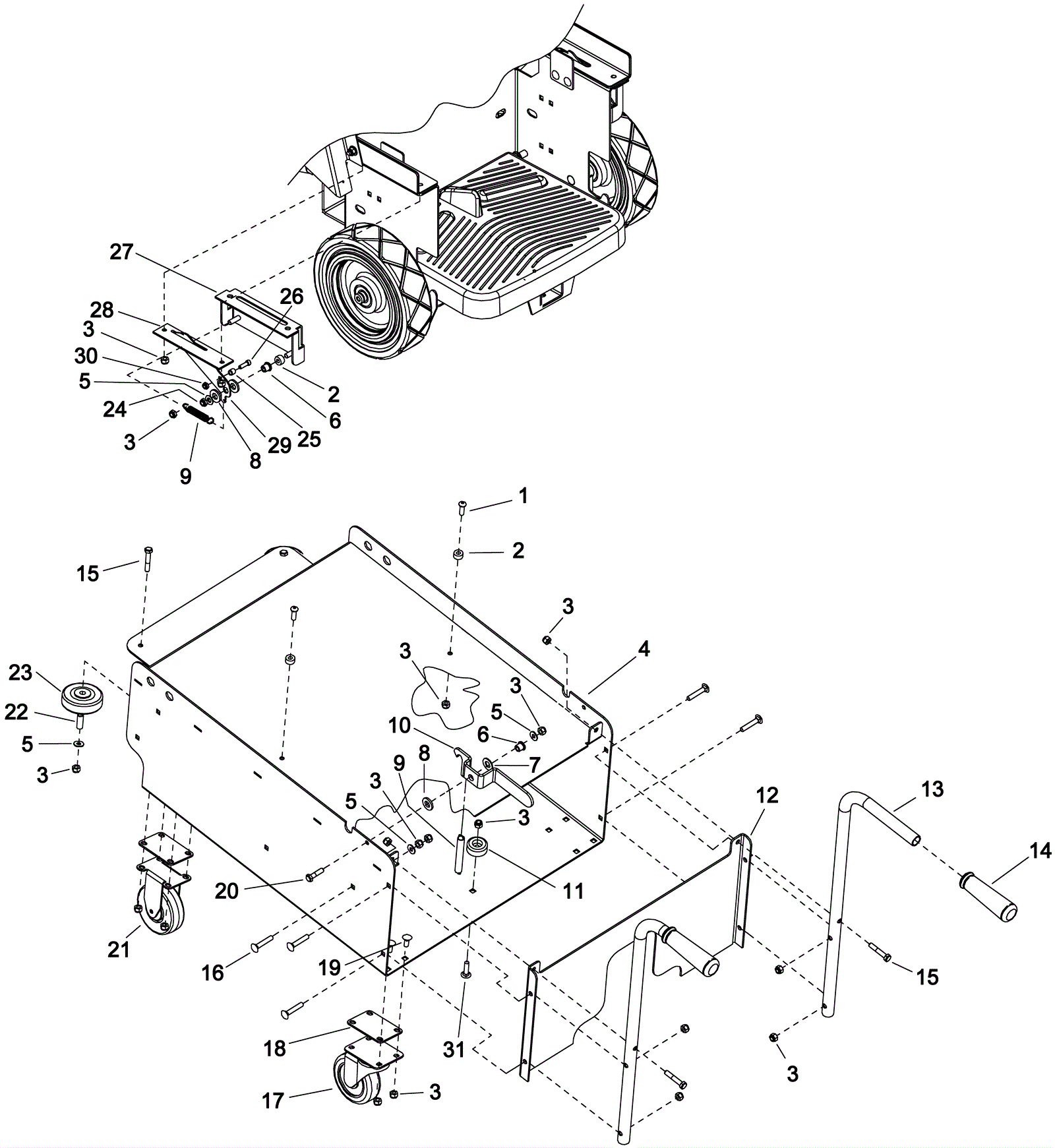

CHARIOT IVACUUM Battery Cart Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 2 ships same day
2 173-5615 Spacer $15.29 4 usually ships 1-5 days
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 33 ships same day
4 173-5616 Battery cart housing $597.30 1 usually ships 7-19 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
6 173-3116 Flanged bearing $8.47 3 usually ships 7-19 days
7 173-3964 Thrust washer $6.44 1 ships same day
8 173-5480 Spacer $3.63 4 usually ships 1-5 days
9 173-5617 Spring $106.70 3 usually ships 1-5 days
10 173-5618 Bracket $75.35 1 usually ships 1-5 days
11 173-3703 Rubber bumper $18.04 1 usually ships 1-5 days
12 173-5619 Back plate $132.00 1 usually ships 1-5 days
13 173-5620 Battery cart handle $108.35 2 usually ships 1-5 days
14 173-0371 Handle grip $12.56 2 usually ships 7-19 days
15 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 4 ships same day
16 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 7 ships same day
17 173-0557 4 inch swivel caster wheel $62.15 2 usually ships 7-19 days
18 173-5621 Spacer plate $13.20 8 usually ships 1-5 days
19 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 16 ships same day
20 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
21 173-5622 4 inch caster wheel $59.40 2 usually ships 7-19 days
22 173-1634 Bushing $11.55 2 usually ships 7-19 days
23a 173-1630 3 inch rubber wheel $5.50 2 ships same day
24 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
25 189-4140 Spacer $2.38 2 usually ships 11-24 days
26 173-9529 Bolt 1/4-20 x 3/4 socket cap $0.99 2 usually ships 1-5 days
27 173-5623 Mounting bracket $68.75 2 usually ships 1-5 days
28 173-5624 Latch guide spacer $16.50 2 usually ships 1-5 days
29 173-5625 Locking bracket $35.97 2 usually ships 1-5 days
30 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
31 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 ships same day
