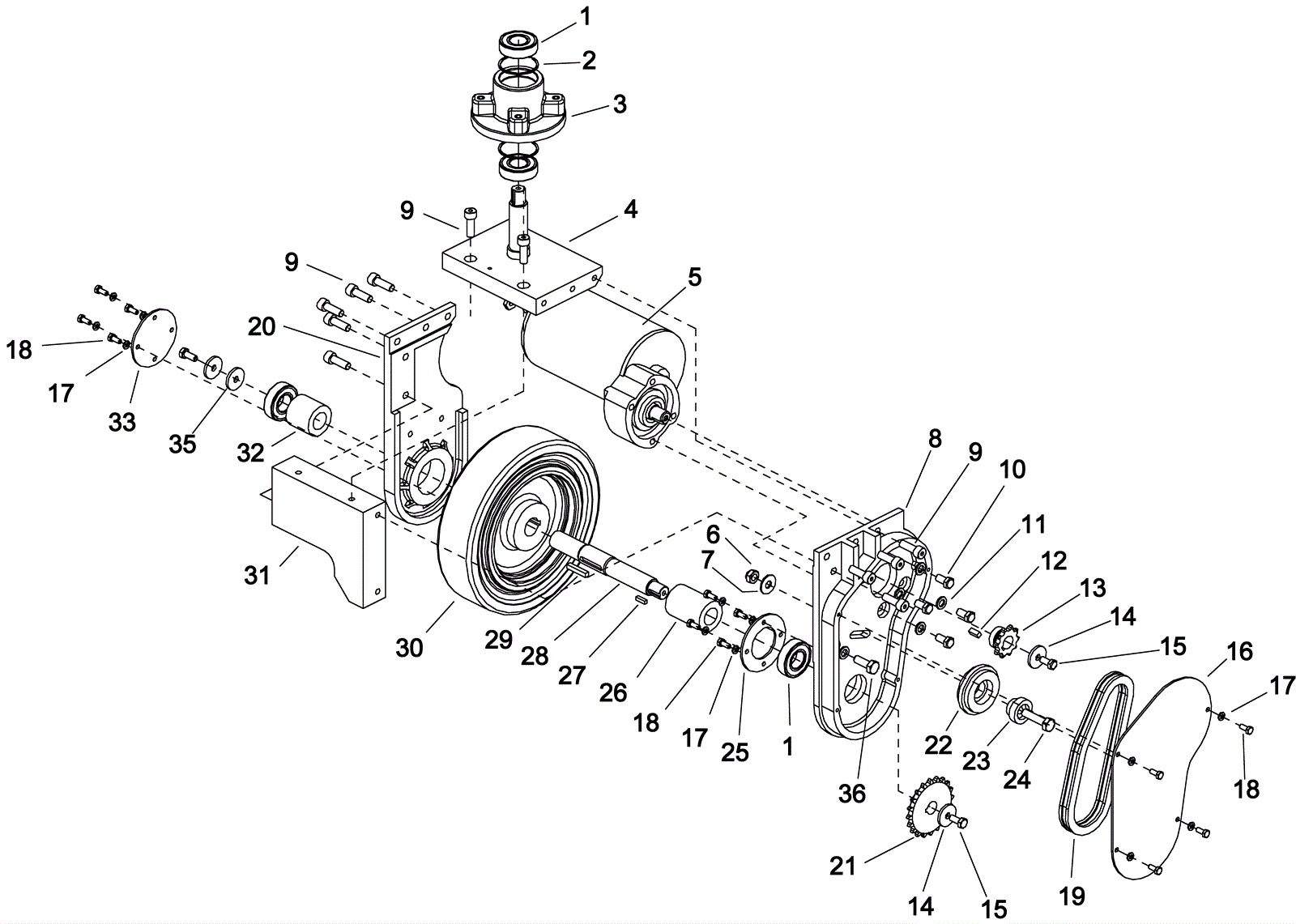

CHARIOT IVACUUM Front Wheel Drive Assembly - Chain

#PartDescriptionPriceReqNotesAvailability
1 173-4756 Bearing $42.90 4 usually ships 7-19 days
2 173-4746 Internal snap ring $11.11 2 usually ships 7-19 days
3 173-5567 Steering hub $210.10 1 usually ships 7-19 days
4 173-5568 Shaft assembly $354.20 1 usually ships 7-19 days
5a 173-5569 36V drive gear motor (OBSOLETE) $981.20 1 usually ships 7-19 days
5b 273-6270 Carbon brush set (OBSOLETE) $184.80 usually ships 7-19 days
5c 173-5571 Motor armature $209.00 usually ships 1-5 days
6 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
7 173-2548 Washer M10 x 30mm plated $3.70 1 ships same day
8 173-5527 Drive wheel yoke plate $134.20 1 usually ships 1-5 days
9 999-1420 Screw M10-1.5 x 30mm socket head stainless steel $4.15 11 ships same day
10 173-9286 Screw 3/8-24 x 3/4 hex cap plated $0.99 4 usually ships 1-5 days
11 999-1262 Washer M10 flat $1.47 5 ships same day
13 173-5294 Motor shaft sprocket (OBSOLETE) $49.28 1 usually ships 7-19 days
14 999-1267 Washer M8 flat zinc $0.99 3 ships same day
15 999-0972 Washer M14 flat $2.75 2 ships same day
16 173-5576 Chain cover plate $50.38 1 usually ships 1-5 days
17 999-0876 Washer M6 split lock plain finish $0.99 12 ships same day
18 173-5577 Screw M6-1 x 15mm hex head $2.00 12 usually ships 1-5 days
19a 173-8638 Chain $77.55 1 usually ships 7-19 days
19b 173-5566 12.7mm off-set link chain $32.34 (service only) usually ships 7-19 days
19c 173-5565 Master link $22.33 (service only) usually ships 7-19 days
20 173-5578 Right hand drive plate $341.00 1 usually ships 1-5 days
21 273-0088 Drive wheel sprocket $78.10 1 usually ships 7-19 days
22 173-5290 Chain tensioner $318.13 1 usually ships 7-19 days
23 173-5291 Chain tensioner sleeve $51.22 1 usually ships 7-19 days
24 999-1347 Screw M10-1.5 x 45mm hex head cap $1.90 1 ships same day
25 173-5579 Bearing retainer plate $33.66 1 usually ships 1-5 days
26 273-0085 Spacer $55.55 1 usually ships 1-5 days
27 173-5580 Square keyway (OBSOLETE) $8.36 1 usually ships 7-19 days
28 273-0087 Drive axle $244.20 1 usually ships 7-19 days
29 273-0084 Square keyway $15.62 1 usually ships 7-19 days
30 173-5334 Drive wheel $383.76 1 ships same day
31 173-5581 Front drive yoke plate $65.45 1 usually ships 1-5 days
32 273-0086 Spacer $50.05 1 usually ships 1-5 days
33 173-5582 Bearing cover plate $34.43 1 usually ships 1-5 days
34 173-5583 Drive motor assembly (OBSOLETE) $2,519.00 (complete) usually ships 7-19 days
35 273-6240 Chain drive axle spacer $5.72 1 usually ships 1-5 days
36 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 1 ships same day
