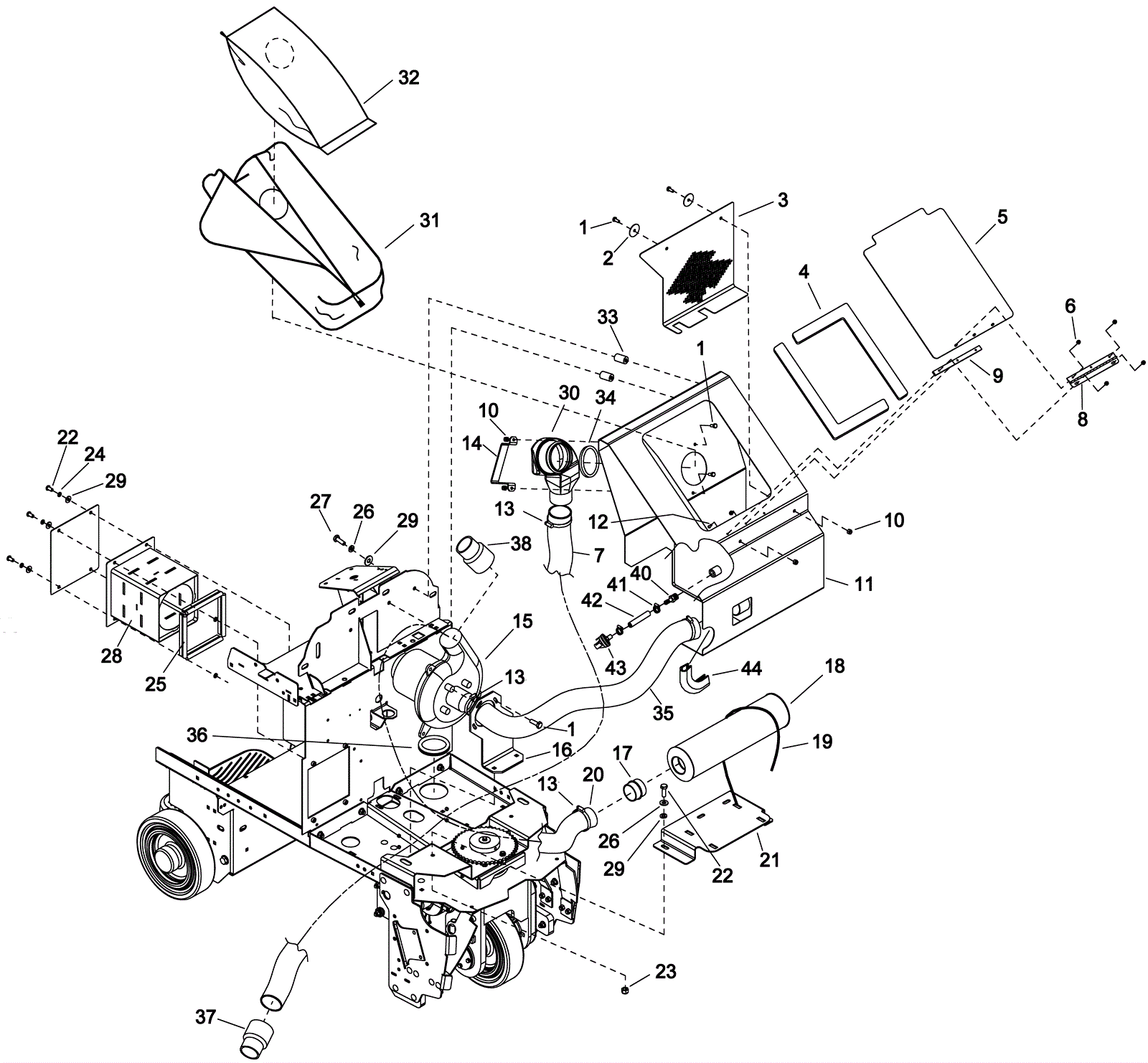

CHARIOT IVACUUM Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
2 273-6214 Washer 1/4 x 1 1/2 fender plated $2.11 2 usually ships 1-5 days
3 273-6215 Vacuum intake screen $67.78 1 usually ships 7-19 days
4 273-6216 Vacuum box lid gasket (OBSOLETE) $28.60 2 usually ships 7-19 days
5 273-6217 Vacuum box lid (OBSOLETE) $66.55 1 usually ships 7-19 days
6 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 5 ships same day
7 173-5288 Vacuum hose 2.5 x 36 inch (gray) $157.30 1 usually ships 7-19 days
8 173-8674 Access plate hinge $18.51 1 usually ships 7-19 days
9 273-6219 Vacuum box lid spacer $11.44 1 usually ships 1-5 days
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
11 273-6220 Vacuum box $710.92 1 usually ships 1-5 days
13a 173-0988 2 inch hose clamp $13.09 3 (basic only) usually ships 7-19 days
13b 173-0988 2 inch hose clamp $13.09 4 (deluxe only) usually ships 7-19 days
14 273-6222 Chute strap $38.61 1 usually ships 1-5 days
15a 173-4365 36V 1 stage vacuum motor $1,289.57 1 usually ships 7-19 days
15b 273-6223 Carbon brush (pkg 2) $25.08 usually ships 7-19 days
16 273-6224 Vacuum motor mounting bracket $64.35 1 usually ships 1-5 days
17 273-6225 Muffler adapter fitting $6.16 1 (deluxe only) usually ships 1-5 days
18 273-6226 Sound muffler $46.86 1 (deluxe only) usually ships 7-19 days
19 173-3305 Cable tie $11.66 2 (deluxe only) usually ships 1-5 days
20 273-6227 Vacuum hose $65.45 1 (deluxe only) usually ships 7-19 days
21 273-6228 Vacuum box mounting bracket $84.70 1 usually ships 1-5 days
22 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 6 ships same day
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
24 999-1049 Washer 1/4 split lock zinc plated $0.99 6 ships same day
25 273-6229 Grip edging (OBSOLETE) $15.84 2 usually ships 7-19 days
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
28 273-6230 Vacuum motor cover $179.30 1 (deluxe only) usually ships 1-5 days
29 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
30 273-6231 Debris chute $144.10 1 usually ships 1-5 days
31 173-5282 Cloth bag $156.22 1 usually ships 7-19 days
32a 273-6146 HEPA paper bag (pkg of 5) $75.90 1 ships same day
32b 173-8640 Paper bag (pkg of 10) $124.30 1 (optional) OEM ships same day
32c 991-9037 Paper vacuum bags (pkg of 10) $22.40 1 NON-OEM ships same day
33 273-5866 Spacer $31.46 2 usually ships 1-5 days
34 273-6232 Gasket $22.99 1 usually ships 1-5 days
35 273-6233 Vacuum hose $65.45 1 usually ships 7-19 days
36 173-5474 Grooved grommet $29.04 1 usually ships 7-19 days
37 173-7409 Hose cuff $52.25 1 usually ships 7-19 days
38 173-3716 Hose cuff $67.65 1 usually ships 1-5 days
39 273-6234 Vacuum cover plate $28.60 1 (basic only) usually ships 1-5 days
40 173-7033 Plastic hosebarb 1/8 x 3/8 $15.51 1 usually ships 1-5 days
41 173-1571 Nylon hose 3/8 x 2 inch $63.80 1 usually ships 1-5 days
42 173-2741 Hose clamp $2.37 2 usually ships 7-19 days
43 173-9856 Vacuum switch $214.53 1 usually ships 7-19 days
44 173-4636 Bumper $7.43 1 usually ships 1-5 days
