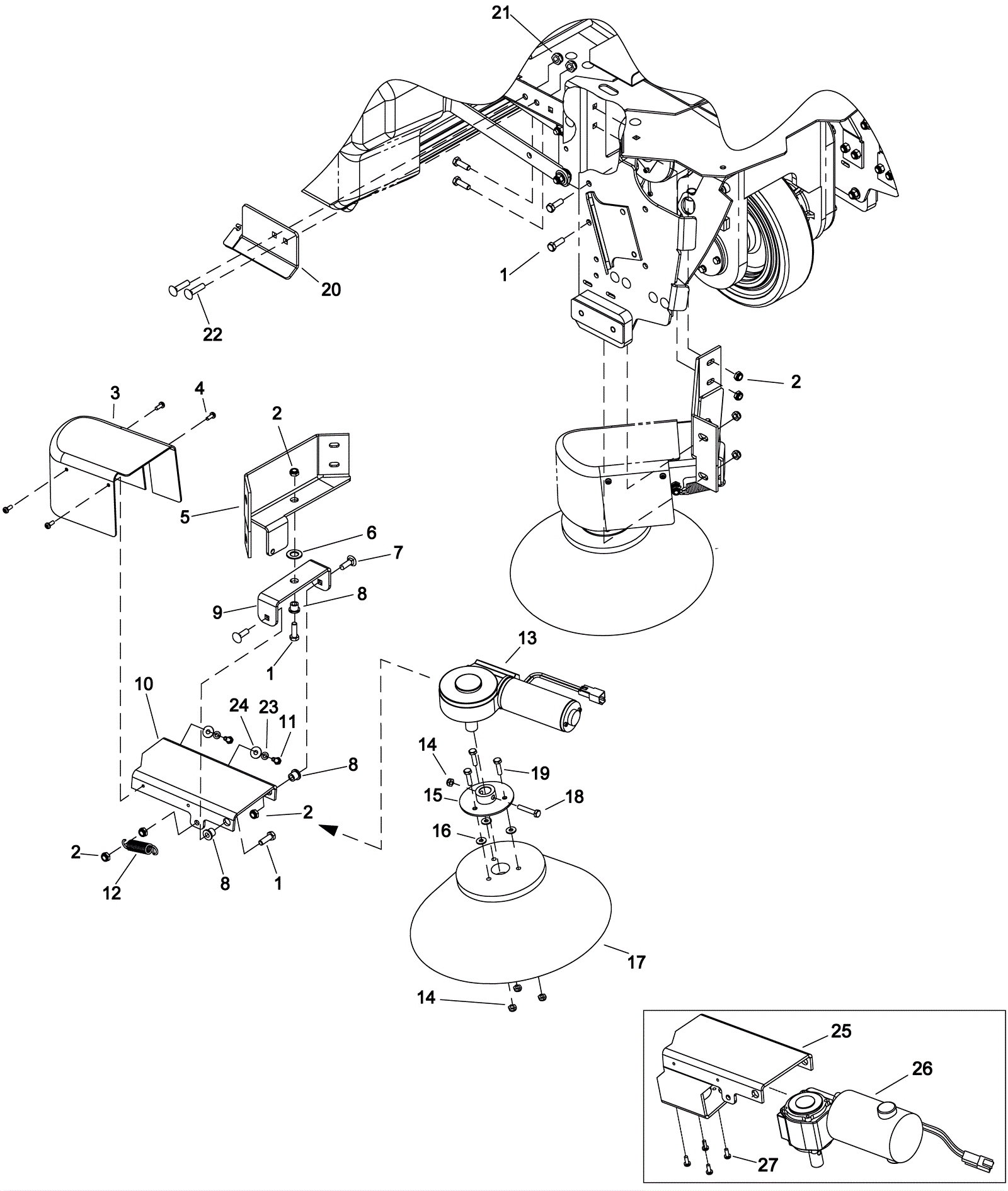

CHARIOT IVACUUM Side Broom Assembly - Deluxe

#PartDescriptionPriceReqNotesAvailability
1 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 7 ships same day
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 9 ships same day
3 273-6201 Side broom cover $89.10 1 usually ships 1-5 days
4 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 4 ships same day
5 273-6202 Side brush mounting bracket $103.95 1 usually ships 1-5 days
6 173-3964 Thrust washer $6.44 1 ships same day
7 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
8 173-3116 Flanged bearing $8.47 3 usually ships 7-19 days
9 273-6203 Side brush swivel bracket $40.70 1 usually ships 1-5 days
10 273-6204 Side brush mounting arm $114.40 1 usually ships 1-5 days
11 273-6205 Screw M6-1 x 16mm hex head cap screw $3.03 2 usually ships 1-5 days
12 173-8442 Extension spring $27.45 1 usually ships 7-19 days
13a 273-6206 36vdc motor $601.81 1 usually ships 7-19 days
13b 273-6207 Carbon brush set $151.80 usually ships 1-5 days
14 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
15 273-6208 Collar assembly shaft plate $180.40 1 usually ships 7-19 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
17 173-5339 13 inch black nylon side broom $144.12 1 usually ships 7-19 days
18 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 1 ships same day
19 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 3 ships same day
20 273-6209 Side broom cable mounting bracket $43.56 1 usually ships 1-5 days
21 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
22 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
23 999-0876 Washer M6 split lock plain finish $0.99 2 ships same day
24 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
25 273-6210 Side brush mounting arm $102.30 1 usually ships 1-5 days
26a 273-6211 Side broom motor and bracket assembly $563.20 1 usually ships 1-5 days
26b 273-6212 Carbon brush $345.40 usually ships 1-5 days
27 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
