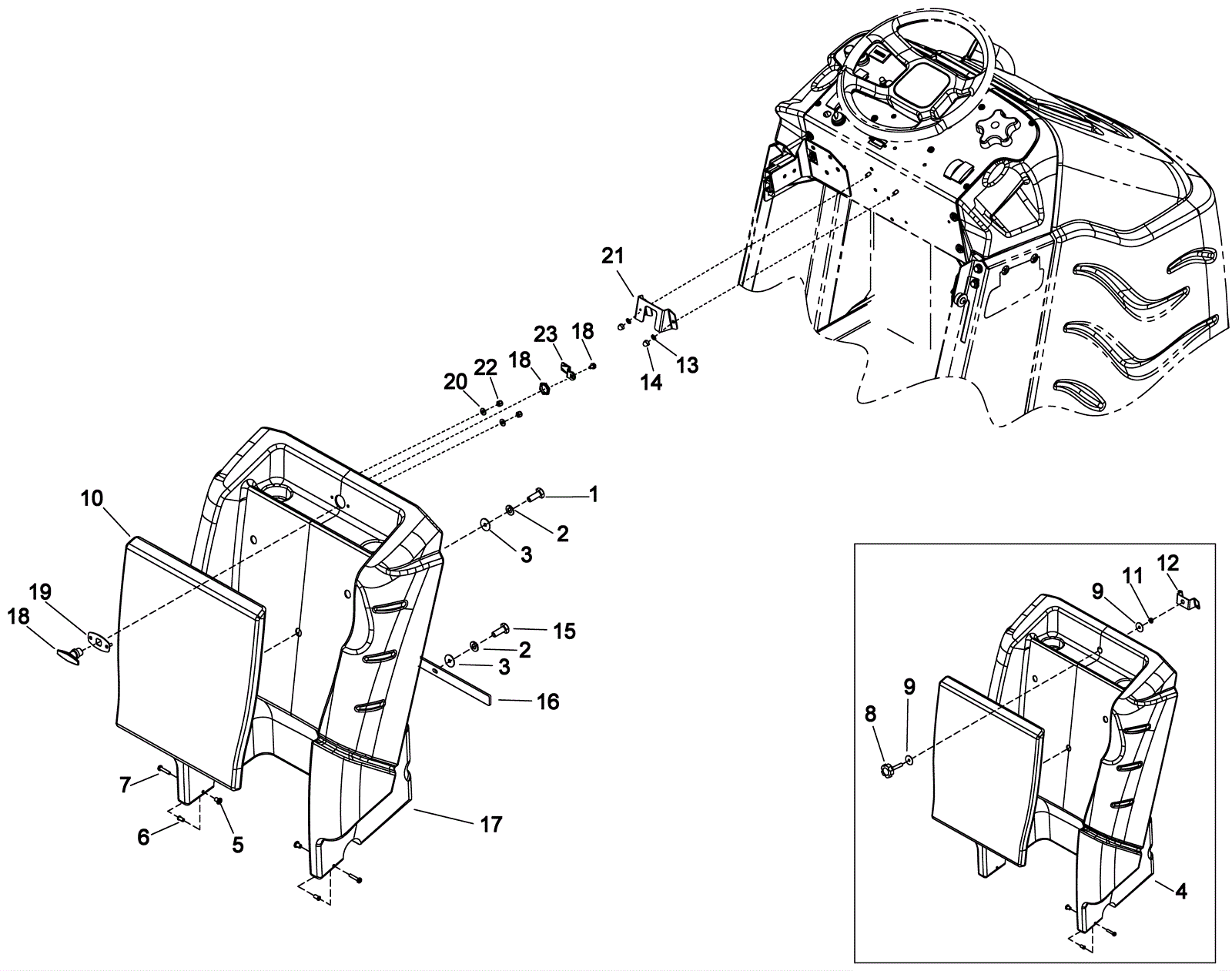

CHARIOT IVACUUM Rear Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
2 999-0028 Washer 5/16 split lock plain finish $0.99 5 ships same day
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
4 N/A Not available Call for price 1 Rear cover usually ships 3-26 days
5 173-8380 Nut 1/4-20 x 12 hex barrel (OBSOLETE) $5.89 2 usually ships 7-19 days
6 173-5520 Flanged bearing $13.86 2 usually ships 7-19 days
7 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
8 173-7402 Knob $37.62 1 usually ships 1-5 days
9 999-1416 Washer 7/16 flat stainless steel $0.99 2 ships same day
10 173-5521 Leaning pad $343.20 1 usually ships 7-19 days
11 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
12 173-7403 Bracket $55.55 1 usually ships 1-5 days
13 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
14 999-1344 Nut 1/4-20 acorn stainless steel $1.38 2 ships same day
15 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
16 173-5523 Bar $80.85 1 usually ships 7-19 days
17 273-6200 Basic rear cover $551.10 1 usually ships 1-5 days
18 273-5802 Handle cam latch $68.21 1 usually ships 7-19 days
19 273-5803 Latch plate $8.64 1 usually ships 7-19 days
20 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
21 273-5804 Rear cover bracket $53.79 1 usually ships 1-5 days
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
23 273-5805 Handle pawl $10.45 1 usually ships 7-19 days
