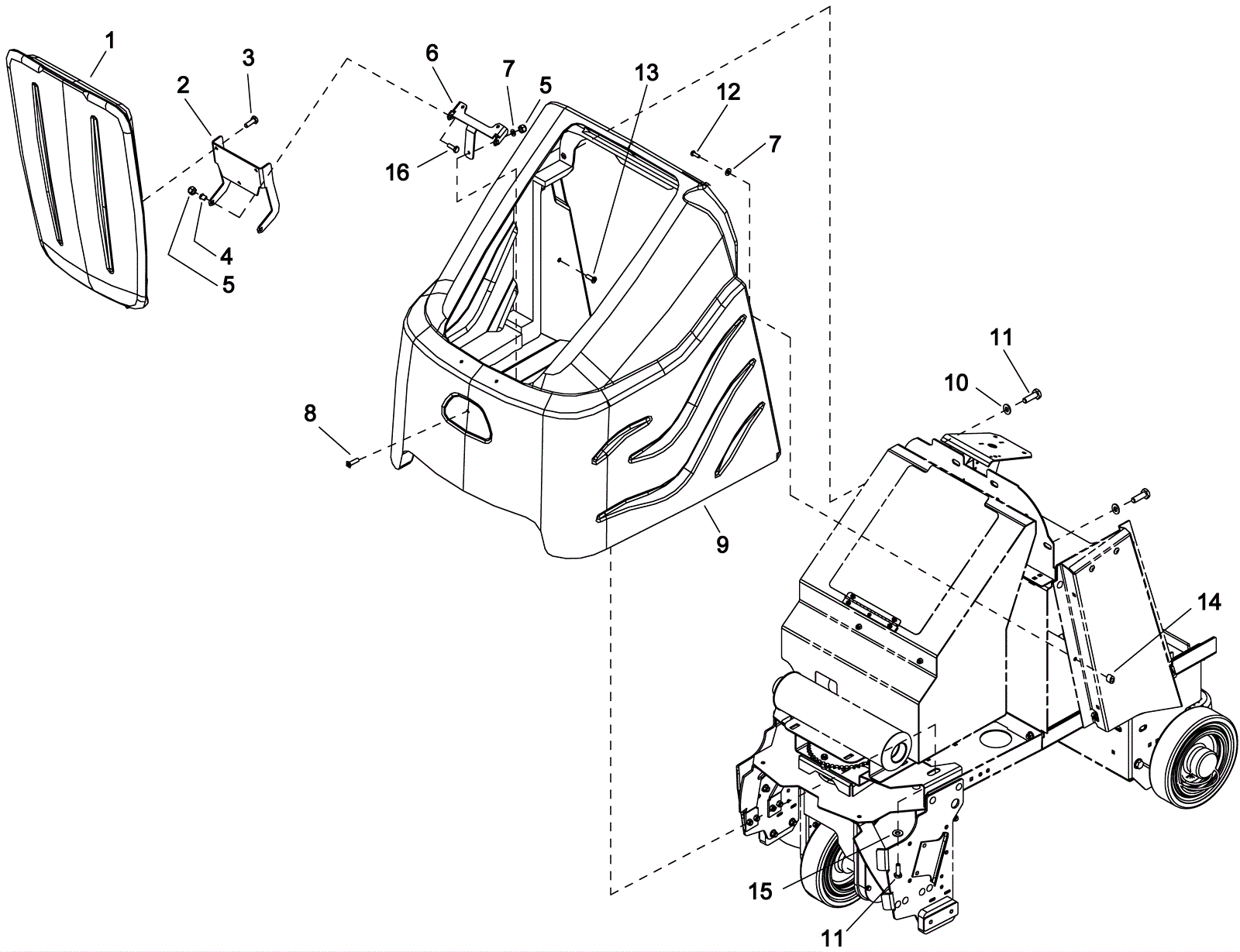

CHARIOT IVACUUM Hood Assembly

#PartDescriptionPriceReqNotesAvailability
2 173-5478 Lid hinge $39.13 1 usually ships 1-5 days
3 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 3 ships same day
4 173-5125 Flanged bushing $6.16 2 usually ships 7-19 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
6 173-5477 Tank hinge $39.13 1 usually ships 1-5 days
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
8 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 3 ships same day
9 173-5476 Tank cover $1,007.60 1 usually ships 1-5 days
10 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 4 ships same day
11 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 6 ships same day
12 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
13 173-5481 Plus nut 1/4-20 flat head $11.77 2 usually ships 1-5 days
14 173-5480 Spacer $3.63 2 usually ships 1-5 days
15 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
16 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
