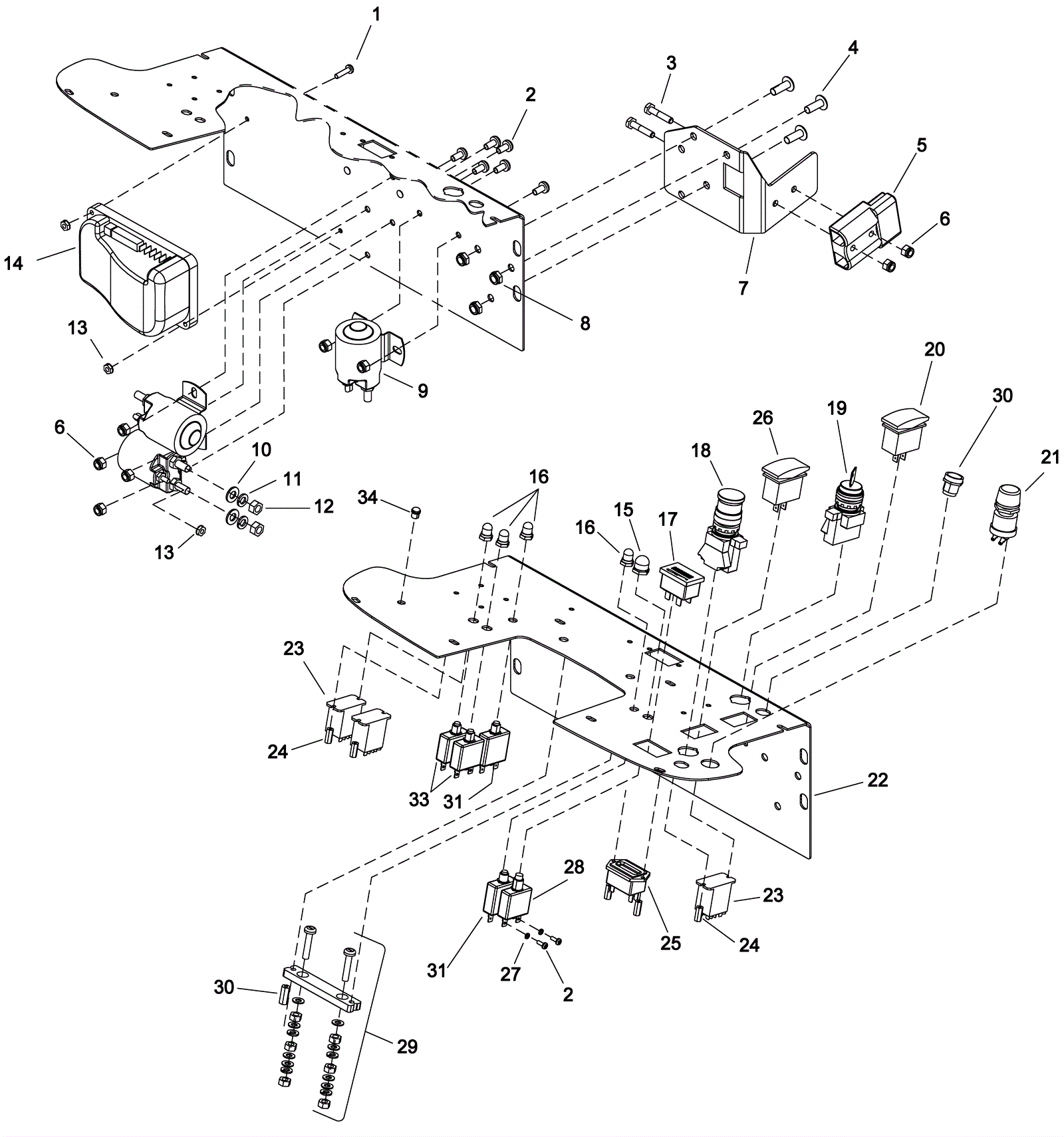

CHARIOT IVACUUM Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
2 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 6 usually ships 7-19 days
3 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
4 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 3 ships same day
5 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
7 273-5771 Bracket $41.14 1 usually ships 1-5 days
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
9 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 3 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
11 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
12 173-5044 Nut 1/4-28 stop elastic $1.96 6 usually ships 1-5 days
13 173-2472 Nut 10-32 with star washer $0.99 5 usually ships 1-5 days
14a 273-0064 Drive controller $859.10 1 (chain drive only) usually ships 7-19 days
14b 173-4645 Drive controller $773.30 1 (gear drive only) usually ships 7-19 days
15a 173-1522 3/8 inch circuit breaker boot $25.30 1 ships same day
15b 991-5157 3/8 inch circuit breaker boot $2.11 1 (NON-OEM) ships same day
16 189-0312 3/8 inch circuit breaker boot $59.75 4 (basic - 3) (deluxe - 4) usually ships 11-24 days
17 173-4643 36V battery meter $123.20 1 usually ships 7-19 days
18 173-1531 Emergency stop switch $292.60 1 usually ships 1-5 days
19a 173-8560 Master key switch $328.96 1 usually ships 7-19 days
19b 173-3958 Key (pkg of 2) $29.81 1 ships same day
20 173-2277 2 position rocker switch $27.45 1 ships same day
21 173-3502 Momentary switch $77.55 1 usually ships 7-19 days
22 273-6188 Control panel weldment $146.30 1 usually ships 1-5 days
23 273-0032 Relay $71.50 3 usually ships 7-19 days
24 173-1520 Nylon standoff $6.66 10 ships same day
25 173-1160 LED hour meter $213.40 1 usually ships 7-19 days
26 173-4642 Fixed position rocker switch (OBSOLETE) $157.30 1 ships same day
27 999-0051 Washer #6 medium split lock $0.99 2 ships same day
28 991-1629 35amp circuit breaker $11.54 1 ships same day
29 173-4647 Shunt mounting block $29.59 1 usually ships 1-5 days
30 173-4641 Push button switch $97.90 1 usually ships 7-19 days
31 991-1624 3amp circuit breaker $15.51 2 (basic - 1) (deluxe - 2) ships same day
32 273-6189 Dome plug $5.50 1 (basic not shown) usually ships 1-5 days
33 273-6190 22amp breaker $35.53 2 (after SN 1000168552) usually ships 7-19 days
34 273-6191 Indicator light (red) $74.80 1 usually ships 1-5 days
