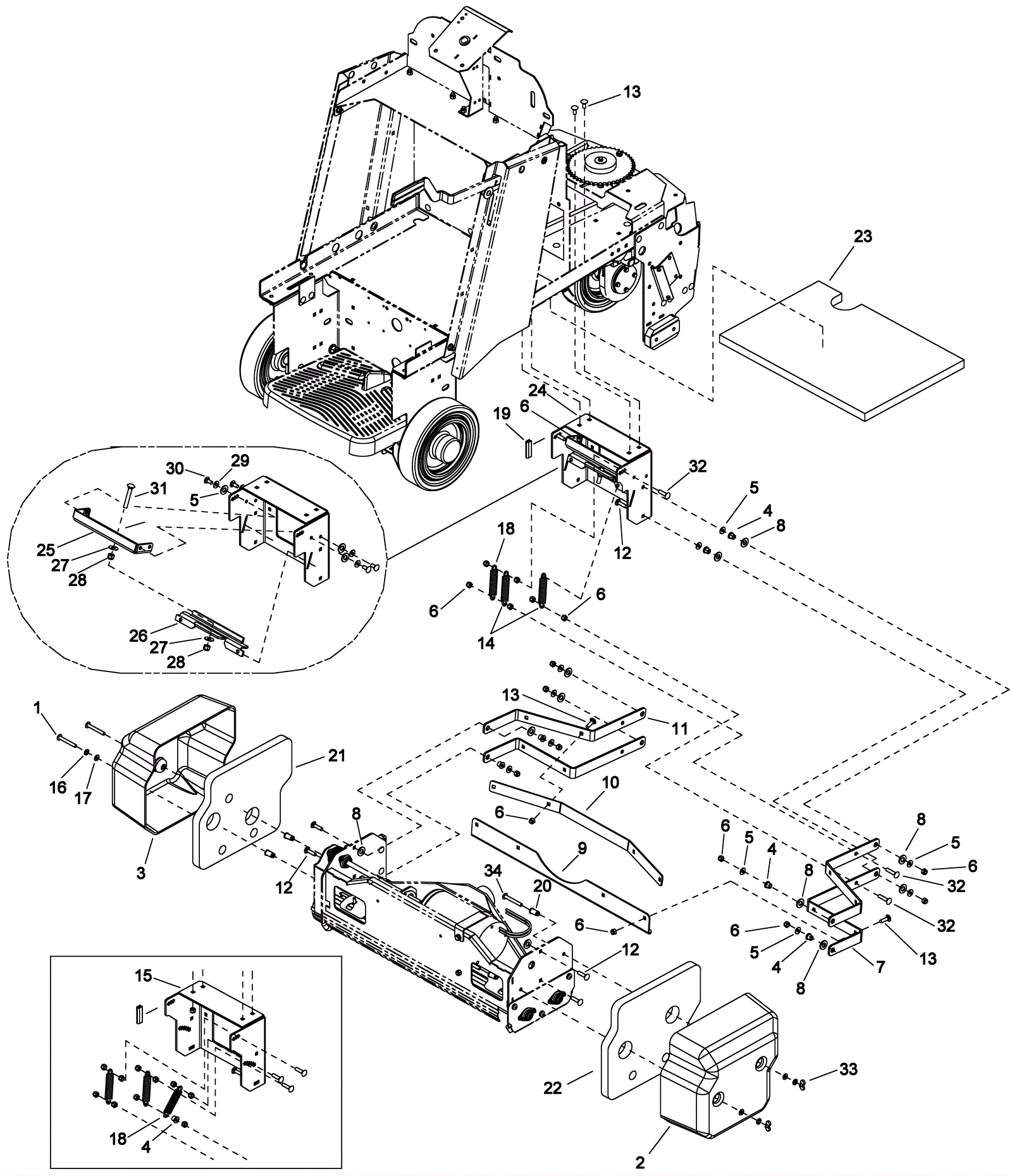

CHARIOT IVACUUM Brush Deck Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 4 ships same day
2 273-6165 Right side deck cover $453.20 1 usually ships 7-19 days
3 273-6166 Left side deck cover (OBSOLETE) $292.60 1 usually ships 7-19 days
4 173-3116 Flanged bearing $8.47 6 usually ships 7-19 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 16 ships same day
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 28 ships same day
7 273-6167 Head attachment bracket $77.55 2 usually ships 1-5 days
8 173-2815 Washer 33/64 x 1 thrust $7.81 10 usually ships 7-19 days
9 273-6168 Angle brace $80.30 1 usually ships 1-5 days
10 273-6169 Deck tie bar $49.28 1 usually ships 1-5 days
11 273-6170 Head attachment bracket $67.10 2 usually ships 1-5 days
12 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 8 ships same day
13 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 8 ships same day
14 273-6171 Extension spring $54.89 4 usually ships 1-5 days
15 273-6172 Scrub deck mounting bracket $185.90 1 usually ships 1-5 days
16 999-1049 Washer 1/4 split lock zinc plated $0.99 4 ships same day
17 999-6684 Washer 1/4 flat stainless steel $0.99 4 ships same day
18 173-8442 Extension spring $27.45 2 usually ships 7-19 days
19 273-6173 3/16inch grip edging $5.50 1 usually ships 1-5 days
20 173-7372 Nut $13.44 4 usually ships 7-19 days
21 273-6174 Left cover sound insulation foam $95.15 1 SN 1000160104 usually ships 7-19 days
22 273-6175 Right cover sound insulation foam $95.15 1 SN 1000160104 usually ships 7-19 days
23 273-6176 Under carriage sound insulation foam $143.00 1 SN 1000160104 usually ships 1-5 days
24 273-6177 Scrub deck mounting bracket $193.60 1 SN 1000166771 usually ships 1-5 days
25 273-6178 Spring tensioner bracket $77.00 1 SN 1000166771 usually ships 1-5 days
26 273-6179 Spring anchor bracket $54.56 1 SN 1000166771 usually ships 1-5 days
27 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
28 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 ships same day
29 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
30 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
31 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.61 1 ships same day
32 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 6 ships same day
33 999-0603 Nut 1/4-20 wing stainless steel $7.33 2 ships same day
34 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 2 ships same day
