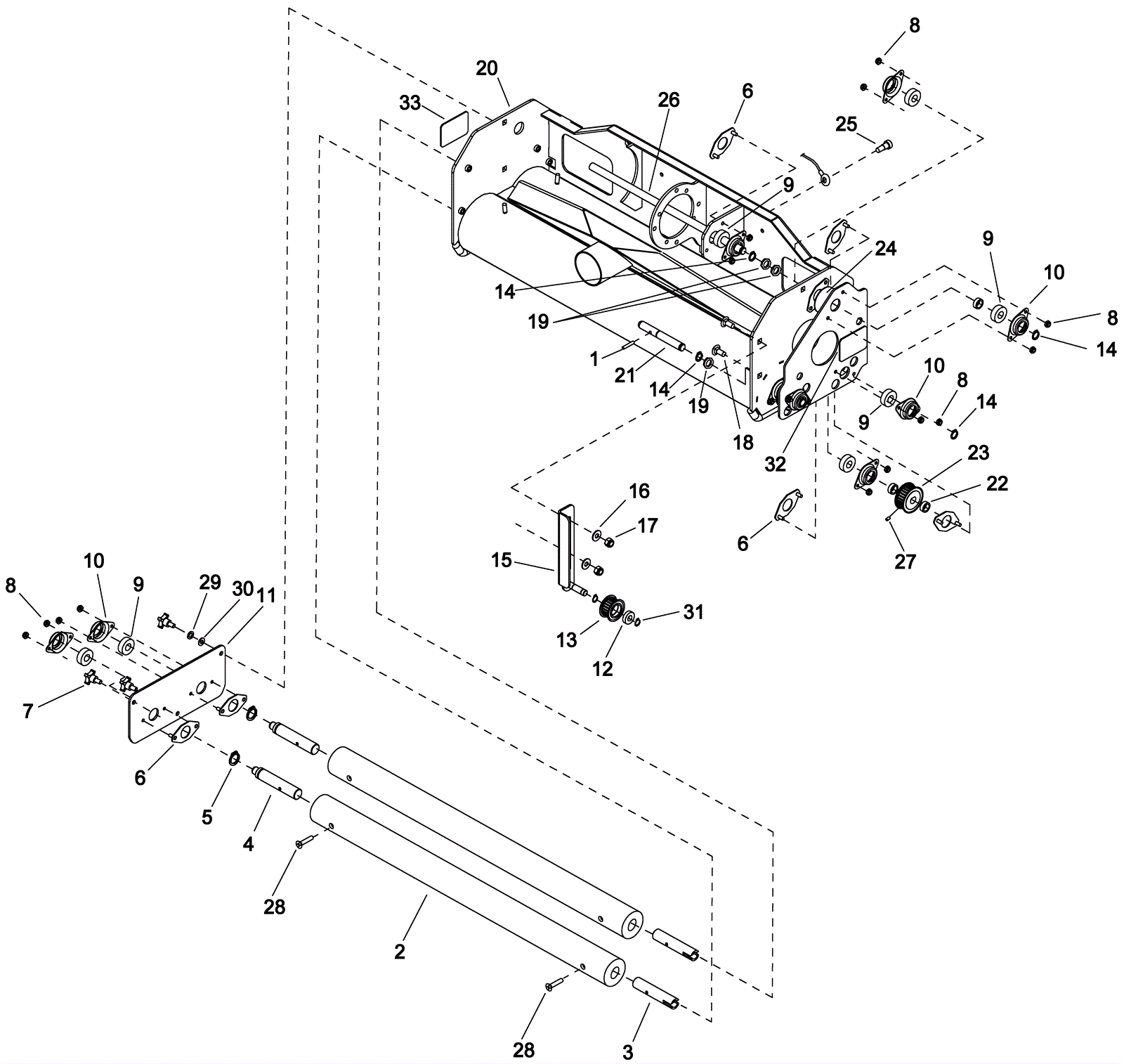

CHARIOT IVACUUM Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0103 Dowel pin $4.18 2 usually ships 7-19 days
2 273-6148 Brush $392.23 2 usually ships 7-19 days
3 273-0060 Axle $203.53 2 usually ships 7-19 days
4 273-0100 Brush bearing stub axle (OBSOLETE) $218.90 2 usually ships 7-19 days
5 173-3286 3/4 inch extended snap ring $5.72 4 usually ships 7-19 days
6 273-0101 Lock plate (OBSOLETE) $41.47 9 usually ships 7-19 days
7 273-6149 Right tank knob (OBSOLETE) $6.60 3 usually ships 7-19 days
8 999-1504 Nut 10-24 jam insert lock stainless steel $0.99 18 ships same day
9 173-2030 Shielded bearing (OBSOLETE) $58.30 9 usually ships 7-19 days
10 173-2011 Flanged bearing $30.36 9 usually ships 7-19 days
11 273-6152 Brush door plate $55.55 1 usually ships 7-19 days
12 273-0104 Bearing $57.20 2 ships same day
13 273-6153 5mm timing pulley $301.40 1 usually ships 7-19 days
14 173-3486 Snap ring $4.16 7 usually ships 7-19 days
15 273-6154 Belt tensioner bracket (OBSOLETE) $257.40 1 usually ships 7-19 days
16 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
17 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
18 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
19 173-2571 Washer 1/2 x .125 wave $3.82 8 usually ships 7-19 days
20 273-6156 Vacuum brush deck $1,485.00 1 usually ships 7-19 days
21 173-5299 Brush stub axle (OBSOLETE) $157.30 2 usually ships 7-19 days
22 273-6157 Spacer (OBSOLETE) $7.33 5 usually ships 7-19 days
23 273-6158 5mm timing pulley 30T $215.64 3 usually ships 7-19 days
24 173-5286 Brush belt (OBSOLETE) $352.70 1 usually ships 7-19 days
25 173-1545 Shoulder bolt $28.93 1 usually ships 7-19 days
26 273-6160 Jack axle $195.80 1 usually ships 7-19 days
27 999-9155 Screw 10-32 x 1/2 socket cup point set $1.10 3 usually ships 11-24 days
28 999-6765 Screw 1/4-20 x 1 1/4 philips flat head stainless steel $1.83 4 ships same day
29 999-1049 Washer 1/4 split lock zinc plated $0.99 3 ships same day
30 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
31 173-3429 3/8 snap ring (OBSOLETE) $2.66 2 usually ships 7-19 days
32 273-3164 Ivacuum belt routing decal $22.66 1 (after SN 10125210000022) usually ships 1-5 days
33 273-6164 Brush orientation decal $86.35 1 (after SN 10125210000022) usually ships 1-5 days
N/S 273-6740 Brush deck assembly (OBSOLETE) $1,188.00 1 (includes 3-6, 8-10, 14, 19, 22-24, 27-28) usually ships 7-19 days
