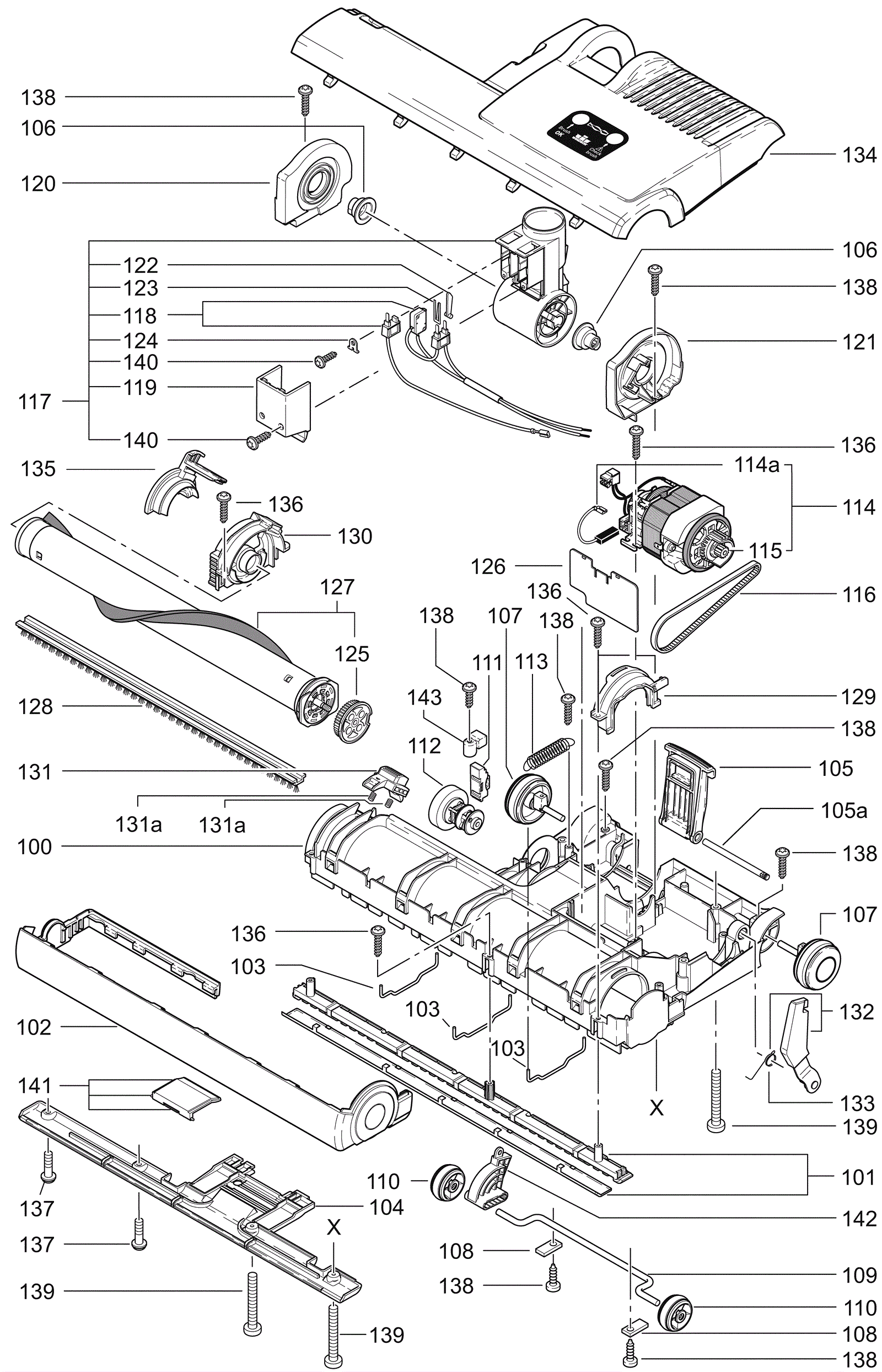

| # | Part | Description |
Req | Notes | Availability |
|---|
100 |
173-7566
|
18 inch chassis (black) |
1 |
|
|
101 |
173-7567
|
Front bottom plate |
1 |
|
|
102 |
173-7568
|
Bumper (black) |
1 |
|
|
103 |
273-0137
|
Retaining bracket |
3 |
|
|
104 |
173-7569
|
Rear bottom plate |
1 |
|
|
105 |
173-7557
|
Foot pedal |
1 |
|
|
106 |
273-0113
|
Swivel neck bearing (pkg of 2) |
1 |
|
|
107 |
173-7559
|
Wheel (black) |
2 |
|
|
108 |
173-0008
|
Axle clamp |
2 |
|
|
109 |
273-0115
|
Pile adjustment axle |
1 |
|
|
110 |
173-7560
|
Pile adjustment wheel |
2 |
|
|
111 |
173-5260
|
Thrust member |
1 |
|
|
112 |
173-7561
|
Adjustment button |
1 |
|
|
113 |
173-0073
|
Spring |
1 |
|
|
114a |
173-5345
|
Brush motor |
1 |
(includes 114b and 115) |
|
114b |
173-6319
|
Carbon brush set |
1 |
|
|
115 |
173-5354
|
Brush motor pulley |
1 |
|
|
116 |
173-5342
|
Belt |
1 |
|
|
117 |
273-0117
|
Swivel neck assembly |
1 |
(includes 118, 119, 122-124 and 140) |
|
118 |
273-0118
|
Wire assembly |
1 |
|
|
119 |
173-0088
|
Swivel neck cover |
1 |
|
|
120 |
273-0119
|
Right side swivel neck support |
1 |
|
|
121 |
273-0120
|
Left side swivel neck support |
1 |
|
|
122 |
173-0085
|
Switch lever |
1 |
|
|
123 |
173-0084
|
Leaf spring |
1 |
|
|
124 |
173-0048
|
Clamp |
1 |
|
|
125 |
273-0121
|
Brush pulley |
1 |
|
|
126 |
173-7570
|
Circuit board |
1 |
|
|
127 |
273-0140
|
18 inch brush assembly |
1 |
(includes 125) |
|
128a |
173-0100
|
18 inch brush strip |
1 |
|
|
128b |
991-5124
|
18 inch brush strip |
1 |
(NON-OEM) |
|
129 |
273-0124
|
Left side bearing block |
1 |
|
|
130 |
173-7562
|
Right side bearing block (black) |
1 |
|
|
131 |
173-7563
|
Brush roller release |
1 |
|
|
132 |
173-0063
|
Support lever with spring |
1 |
(includes 133) |
|
133 |
173-0064
|
Torsion spring |
1 |
|
|
134 |
173-7571
|
Power head cover |
1 |
|
|
135 |
173-7565
|
Side plate (black) |
1 |
|
|
136 |
173-4217
|
Screw M4-.7 x 20mm self-tapping torx |
4 |
|
|
137 |
273-0939
|
Screw M4-.7 x 12mm with washer |
2 |
|
|
138 |
273-0130
|
Screw M4-.7 x 14mm |
1 |
|
|
139 |
999-1518
|
Screw M4-.7 x 30mm pan head phillips zinc plated |
3 |
|
|
140 |
173-0007
|
Screw M3-.5 x 13mm |
2 |
|
|
141 |
273-3546
|
Access door |
1 |
|
|
142 |
273-0131
|
Lever |
1 |
|
|
143 |
273-0132
|
Leaf hinge |
1 |
|
|
144 |
273-0127
|
Spring |
2 |
|
|
145 |
173-7558
|
Foot pedal axle |
1 |
|
|
