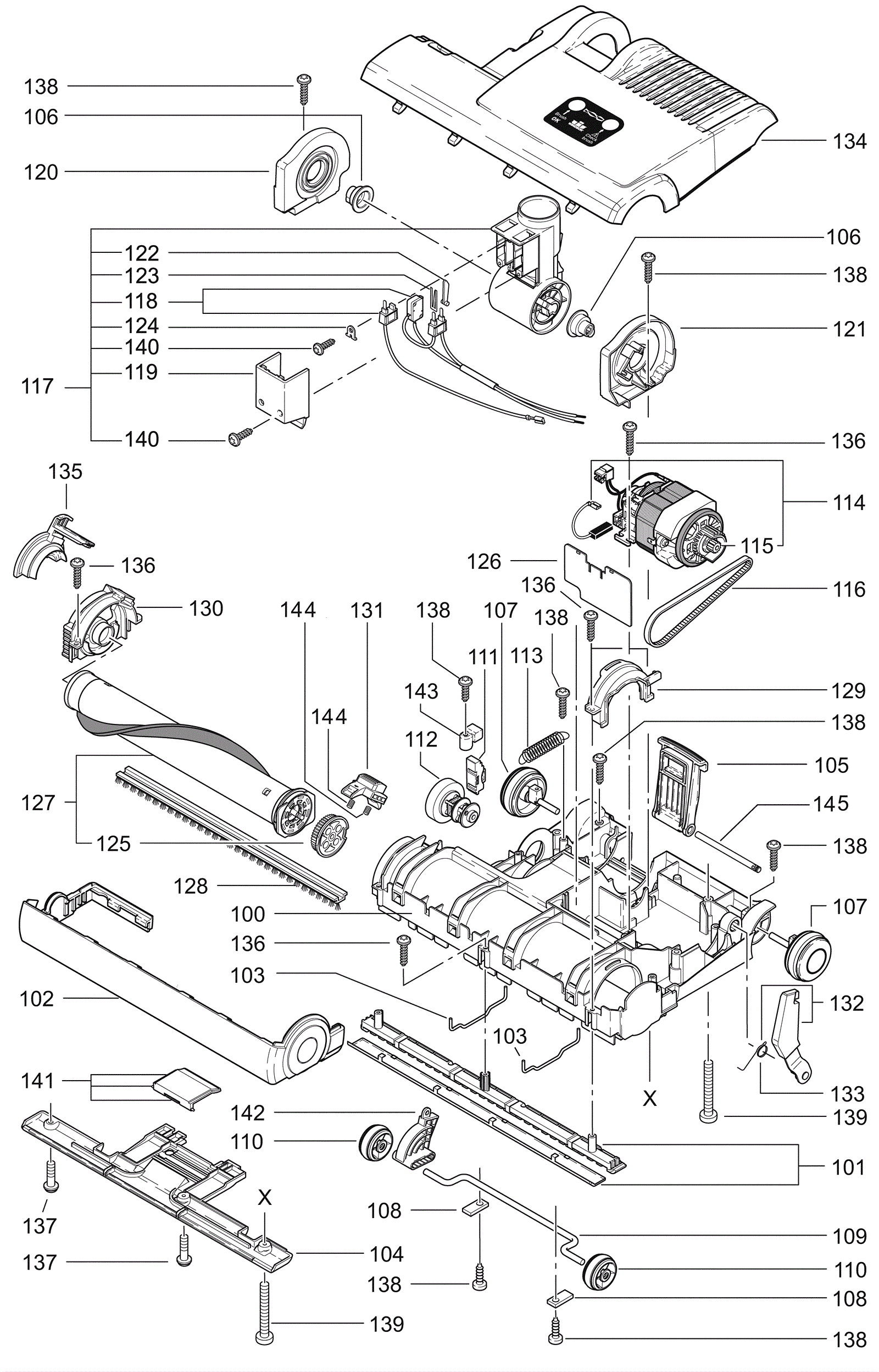

VERSAMATIC 14 Inch Cover head Assembly - After SN 234025101

#PartDescriptionPriceReqNotesAvailability
100 173-7554 14 inch chassis $144.12 1 usually ships 7-19 days
101 273-0135 Rear bottom plate $20.90 1 ships same day
102 173-7555 Bumper (black) $32.12 1 usually ships 7-19 days
103 273-0137 Retaining bracket $5.52 2 ships same day
104 173-7556 Rear bottom plate $15.73 1 usually ships 7-19 days
105 173-7557 Foot pedal $61.42 1 usually ships 7-19 days
106 273-0113 Swivel neck bearing $28.16 1 usually ships 7-19 days
107 173-7559 Wheel (black) $16.83 2 ships same day
108 173-0008 Axle clamp $2.85 2 ships same day
109 273-0115 Pile adjustment axle $50.71 1 usually ships 7-19 days
110 173-7560 Pile adjustment wheel $30.47 2 usually ships 7-19 days
111 173-5260 Thrust member $30.47 1 usually ships 1-5 days
112 173-7561 Adjustment button $31.13 1 usually ships 7-19 days
113 173-0073 Spring $5.39 1 usually ships 7-19 days
114a 173-5345 Brush motor $271.70 1 (includes 114b and 115) ships same day
114b 173-6319 Carbon brush set $52.36 1 usually ships 7-19 days
115 173-5354 Brush motor pulley $26.73 1 usually ships 7-19 days
116 173-5342 Belt $24.09 1 usually ships 7-19 days
117 273-0117 Swivel neck assembly $40.70 1 (includes 118-119, 122-124 and 140) ships same day
118 273-0118 Wire assembly $84.70 1 usually ships 7-19 days
119 173-0088 Swivel neck cover $15.07 1 usually ships 7-19 days
120 273-0119 Right side swivel neck support $55.55 1 usually ships 7-19 days
121 273-0120 Left side swivel neck support $55.55 1 usually ships 7-19 days
122 173-0085 Switch lever $1.87 1 ships same day
123 173-0084 Leaf spring $3.39 1 usually ships 7-19 days
124 173-0048 Clamp $3.39 1 usually ships 7-19 days
125 273-0121 Brush pulley $6.11 1 usually ships 7-19 days
126 273-0122 120V circuit board $156.20 1 usually ships 7-19 days
127 273-0123 14 inch brush assembly $58.31 1 (includes 125) ships same day
128 173-0077 14 inch brush strip $19.14 1 ships same day
129 273-0124 Left side bearing block $36.85 1 ships same day
130 173-7562 Right side bearing block (black) $39.93 1 ships same day
131 173-7563 Brush roller release $23.54 1 usually ships 7-19 days
132 173-0063 Support lever with spring $35.97 1 (includes 133) ships same day
133 173-0064 Torsion spring $10.01 1 ships same day
134 173-7564 Power head cover $151.03 1 usually ships 7-19 days
135 173-7565 Side plate (black) $31.13 1 ships same day
136 173-4217 Screw M4-.7 x 20mm self-tapping torx $16.39 4 usually ships 7-19 days
137 273-0939 Screw M4-.7 x 12mm with washer $2.90 2 ships same day
138 273-0130 Screw M4-.7 x 14mm $0.50 1 ships same day
139 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated $0.99 2 ships same day
140 173-0007 Screw M3-.5 x 13mm $1.91 2 ships same day
141 273-3546 Access door $34.32 1 ships same day
142 273-0131 Lever $21.89 1 usually ships 7-19 days
143 273-0132 Leaf hinge $18.04 1 usually ships 7-19 days
144 273-0127 Spring $28.16 2 usually ships 7-19 days
145 173-7558 Foot pedal axle $17.27 1 usually ships 7-19 days
