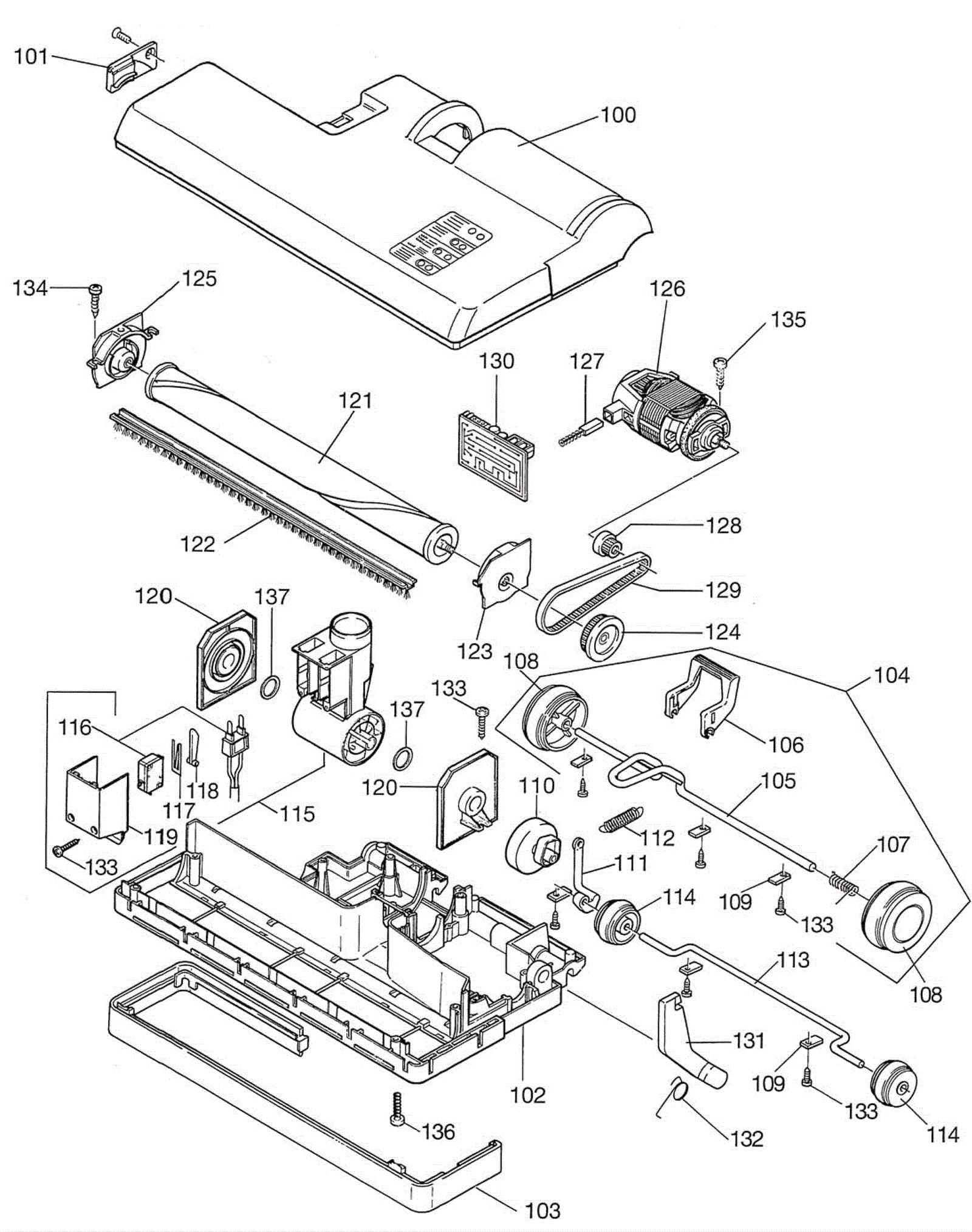

VERSAMATIC 18 Inch Cover Assembly - Before SN 265009211

#PartDescriptionPriceReqNotesAvailability
100 173-0215 Cover assembly $180.40 1 usually ships 7-19 days
101 173-0081 Brush strip cover with screws $18.81 1 usually ships 7-19 days
102 173-0917 18 inch chassis assembly $172.73 1 usually ships 7-19 days
103 173-0140 18 inch bumper $42.35 1 usually ships 7-19 days
104 173-0302 Axle assembly for model VSE-2 $103.96 1 (includes 105-108) ships same day
105 173-0141 Axle $69.30 1 usually ships 7-19 days
106 173-0069 Foot pedal $11.77 1 ships same day
107 173-0009 Axle spring $7.59 1 ships same day
108 273-0942 Wheel $21.89 2 ships same day
109 173-0008 Axle clamp $2.85 2 ships same day
110 173-0119 Pile adjustment knob $19.58 1 usually ships 1-5 days
111 173-0145 Pile adjustment lever $6.77 1 usually ships 7-19 days
112 173-0073 Spring $5.39 1 usually ships 7-19 days
113 173-0143 Pile adjustment axle $27.39 1 usually ships 7-19 days
114 173-0071 Pile adjustment wheel $18.81 2 usually ships 7-19 days
115 173-2892 Swivel neck assembly $118.80 1 (includes 116-119 and 133) usually ships 7-19 days
116 173-0089 Swivel neck wire connector $59.95 1 ships same day
117 173-0084 Leaf spring $3.39 1 usually ships 7-19 days
118 173-0085 Switch lever $1.87 1 ships same day
119 173-0088 Swivel neck cover $15.07 1 usually ships 7-19 days
120 173-0083 Swivel support $25.08 1 ships same day
121 173-0153 18 inch brush assy (no bearing blocks or bearings included) $176.00 1 ships same day
122a 173-0100 18 inch brush strip $25.85 1 ships same day
122b 991-5124 18 inch brush strip $17.98 1 (NON-OEM) ships same day
123 193-0004 12 inch floor tool 1 1/2inch $41.57 1 ships same day
124 173-0080 Brush roller pulley $25.08 1 usually ships 7-19 days
125a 173-0078 Right hand bearing block with bearings $27.39 1 ships same day
125b 991-9172 BEARING BLOCK, VSM/VSE RH $27.63 (NON-OEM) ships same day
126 173-0147 120V brush motor $133.12 1 ships same day
127 173-0920 New style non-spring type carbon brush set $72.05 1 usually ships 7-19 days
128 173-0092 Motor pulley $21.45 1 ships same day
129 173-0002 Drive belt $20.79 1 ships same day
130 173-0152 120V electronic control board $180.40 1 usually ships 7-19 days
131 173-0063 Support lever with spring $35.97 1 ships same day
132 173-0064 Torsion spring $10.01 1 ships same day
133 173-0007 Screw M3-.5 x 13mm $1.91 6 ships same day
134 173-0135 Screw M3-.5 x 16mm $0.99 1 ships same day
135 173-0137 Screw M3-9 x 22mm $1.03 1 usually ships 7-19 days
137 173-0850 Spacer $3.94 2 usually ships 1-5 days
