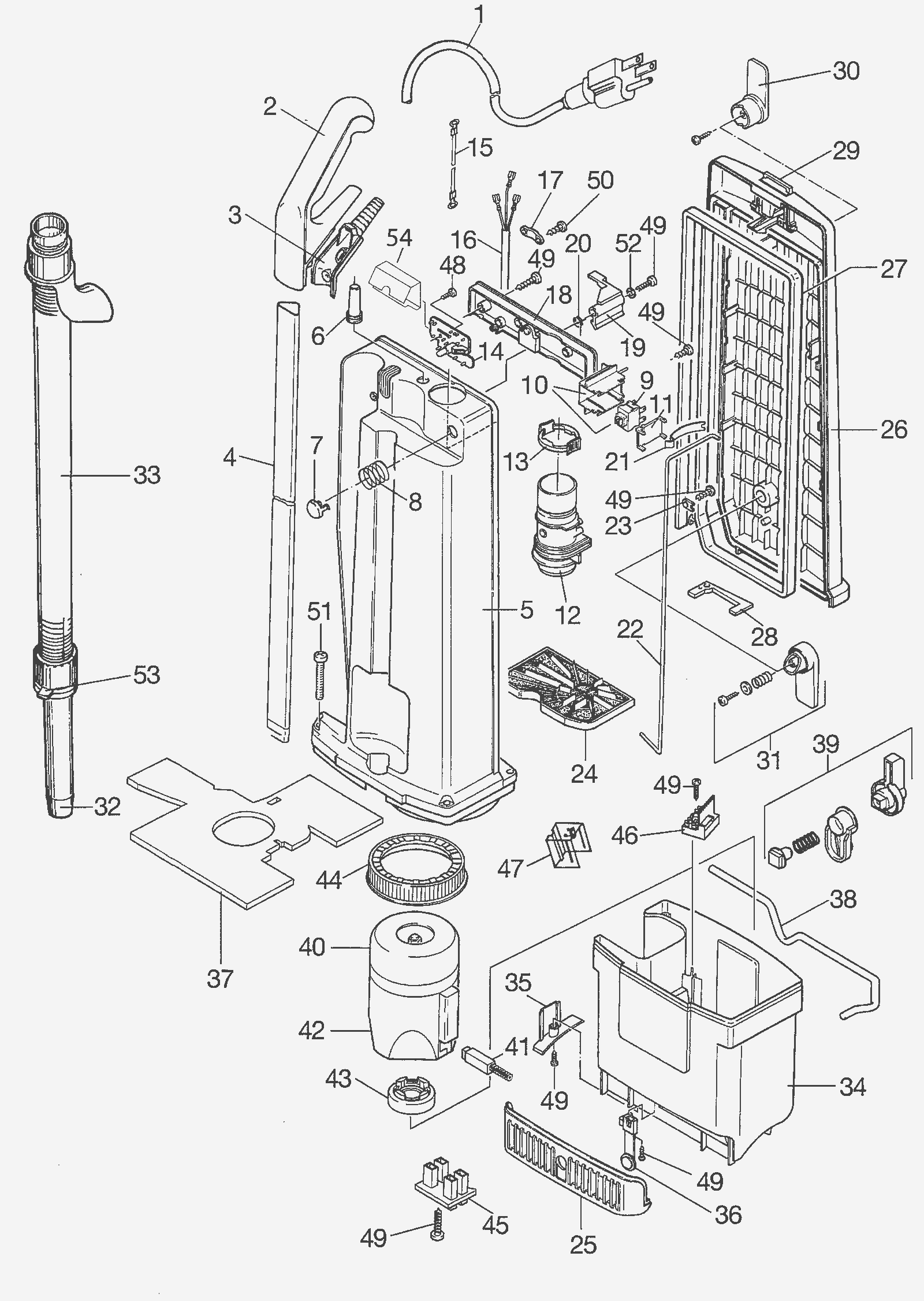

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
273-7614
|
18/3 power cord (yellow) |
1 |
(OEM) |
|
1b |
991-5008
|
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
|
1c |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
2 |
173-0156
|
Handle grip assembly |
1 |
|
|
3 |
173-0157
|
Handle cover |
1 |
|
|
4 |
173-4709
|
Handle |
1 |
|
|
5 |
173-4710
|
Dust bag housing |
1 |
|
|
6 |
173-4711
|
Grommet |
1 |
|
|
7 |
173-4731
|
Switch button |
1 |
|
|
8 |
173-0190
|
Spring |
1 |
|
|
9 |
173-0034
|
Switch kit |
1 |
(The old switch was white and round. The switch is now square and available in kit 173-0034. It will fit even though it is a different shape.) |
|
10 |
173-0043
|
Switch holder |
1 |
|
|
11 |
173-0061
|
Switch cover |
1 |
|
|
12 |
173-0037
|
Connecting tube |
1 |
|
|
13 |
173-4717
|
Retaining ring |
1 |
|
|
14 |
173-0033
|
Printed circuit board |
1 |
|
|
15 |
173-0054
|
Antistatic wire |
1 |
|
|
16 |
173-0031
|
Interconnect cord |
1 |
|
|
17 |
173-0030
|
Cable clamp |
1 |
|
|
18 |
173-0040
|
Switch housing cover |
1 |
|
|
19 |
173-0044
|
Dust bag lever |
1 |
|
|
20 |
173-0045
|
Torsion spring |
1 |
|
|
21 |
173-0046
|
Leaf spring |
1 |
|
|
22 |
173-0047
|
Connecting rod |
1 |
|
|
23 |
173-0048
|
Clamp |
1 |
|
|
24 |
173-0003
|
Vacuum motor filter |
1 |
|
|
25 |
173-7011
|
Exhaust filter |
1 |
|
|
26 |
173-0041
|
Rear cover (blue) |
1 |
|
|
27 |
173-0050
|
Rear cover seal |
1 |
|
|
28 |
173-4718
|
Gasket |
1 |
|
|
29 |
173-0042
|
Latch with spring and pins |
1 |
|
|
30 |
173-0058
|
Upper cord hook (blue) |
1 |
|
|
31 |
173-0059
|
Lower cord hook |
1 |
|
|
32 |
173-0051
|
Hand nozzle |
1 |
|
|
33 |
173-0049
|
Hose |
1 |
|
|
34 |
173-4720
|
Motor housing |
1 |
|
|
35 |
173-4721
|
Housing cover |
1 |
|
|
36 |
173-4722
|
Filter retaining button |
1 |
|
|
37 |
173-4723
|
Sound insulation |
1 |
|
|
38 |
173-4724
|
Locking rod |
1 |
|
|
39 |
173-4725
|
Locking catch |
1 |
|
|
40 |
173-2752
|
120V vacuum motor |
1 |
|
|
41 |
173-4726
|
Carbon brush (pkg of 2) |
1 |
|
|
42 |
173-4727
|
Motor cover |
1 |
|
|
43 |
173-0024
|
Motor support |
1 |
|
|
44 |
173-0029
|
Vacuum motor seal |
1 |
|
|
45 |
373-5050
|
Female contact holder |
1 |
|
|
46 |
173-0052
|
Terminal block (3 wire) |
1 |
|
|
47 |
173-0060
|
Terminal block cover |
1 |
|
|
48 |
173-0134
|
Screw M3-.5 x 5mm |
1 |
|
|
49 |
173-0007
|
Screw M3-.5 x 13mm |
6 |
|
|
50 |
173-0135
|
Screw M3-.5 x 16mm |
1 |
|
|
52 |
999-0985
|
Washer #4 SAE flat |
1 |
|
|
53 |
173-4730
|
Retaining ring |
1 |
|
|
54 |
173-0062
|
PC board cover |
1 |
|
|
