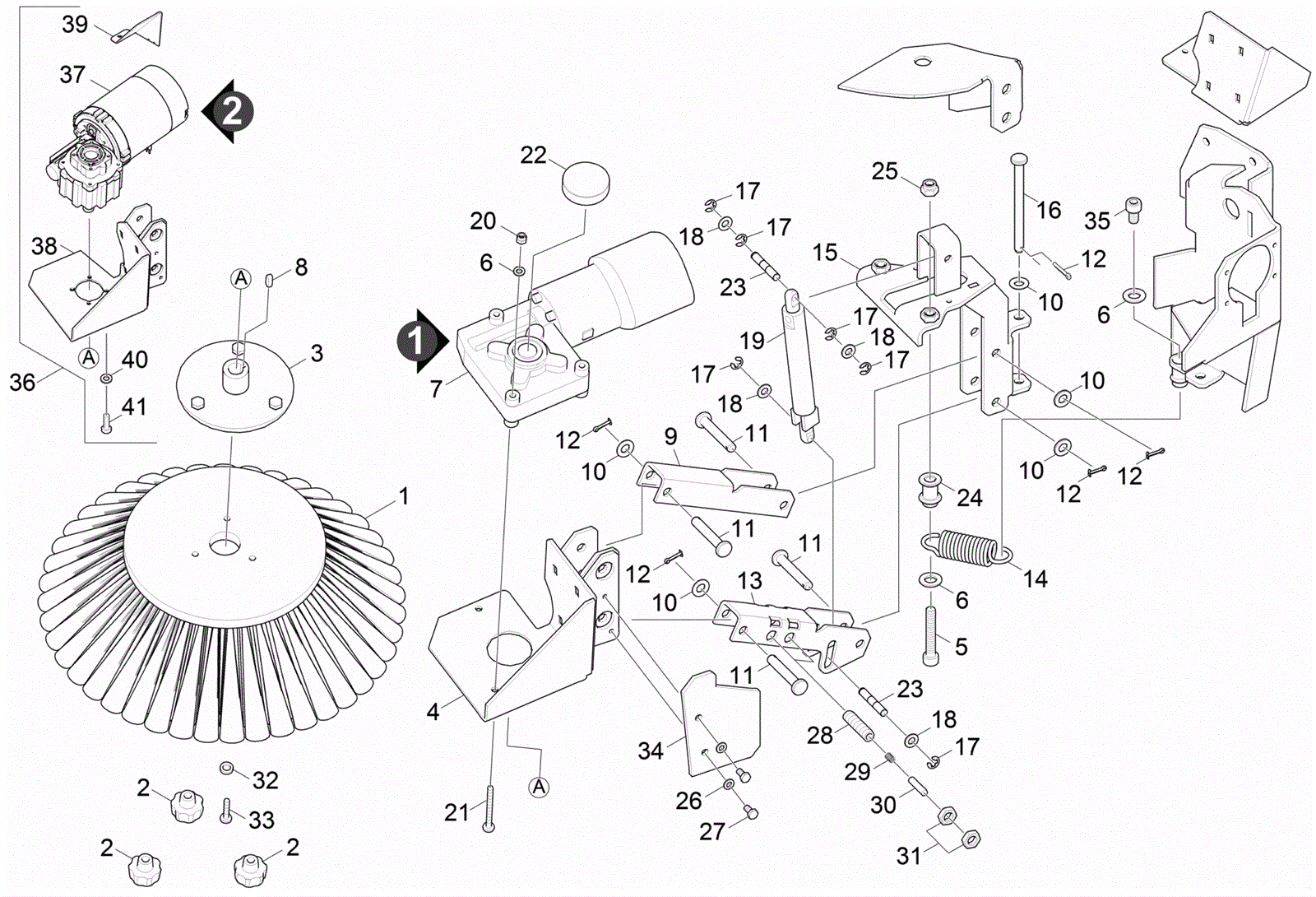

KM 120/150 Right Hand Side Broom - Version 2

#PartDescriptionPriceReqNotesAvailability
1a 273-8273 Side broom hard $523.60 1 usually ships 7-19 days
1b 273-8274 Side broom soft $517.00 1 usually ships 7-19 days
1c 273-7781 Side broom $297.00 1 usually ships 7-19 days
2 273-7782 Star grip $18.70 3 usually ships 7-19 days
3 273-7783 Side broom retainer $130.06 1 usually ships 7-19 days
4 273-8275 Electric motor holder right Call for price 1 usually ships 7-19 days
5 273-8290 Screw M10 x 60 socket head $2.53 3 usually ships 7-19 days
6 173-6333 Washer $2.30 6 usually ships 1-5 days
7 273-3586 Right hand side broom gear motor $1,540.00 1 usually ships 7-19 days
8 273-5818 Parallel key $2.11 1 usually ships 7-19 days
9 273-8291 Upper bracket $114.40 1 usually ships 7-19 days
10 273-6016 Washer $1.94 5 usually ships 1-5 days
11 273-8278 Bolt $22.22 4 usually ships 7-19 days
12 273-8279 Cotter pin $3.82 5 usually ships 7-19 days
13 273-8292 Lower bracket $67.10 1 usually ships 7-19 days
14 273-8293 Extension spring $75.90 1 usually ships 7-19 days
15 273-8282 Brush retainer bracket $281.60 1 usually ships 7-19 days
16 273-8294 Bolt $49.28 1 usually ships 7-19 days
17 173-6209 Lock washer $1.94 8 usually ships 7-19 days
18 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
19 273-8284 Replacement hydraulic cylinder $178.20 1 usually ships 7-19 days
20 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
21 273-8276 Screw M6 x 70 $3.82 3 usually ships 7-19 days
22 273-8295 Protecting cap $7.21 1 usually ships 7-19 days
23 273-8285 Shaft $13.09 1 usually ships 7-19 days
24 273-8296 Sleeve $60.50 1 usually ships 7-19 days
25 273-6031 Nut M10-8 hex $2.78 1 usually ships 7-19 days
26 173-6297 Washer $1.94 2 usually ships 1-5 days
27 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
28 273-8235 Bolt $7.59 2 usually ships 7-19 days
29 273-8297 Pressure spring $3.41 2 usually ships 7-19 days
30 273-8196 Rubber damper $16.39 2 usually ships 7-19 days
31 999-0503 Nut M12-1.75 hex stainless steel $1.91 4 ships same day
32 273-7540 Washer 6 $2.78 1 usually ships 7-19 days
33 183-0093 Screw M6-1 x 16mm $1.43 1 usually ships 7-19 days
34 273-8299 Plate $33.55 1 usually ships 7-19 days
35 273-8300 Screw M10 x 16 socket head $0.99 1 usually ships 7-19 days
36 273-8301 Motor and holder assembly $1,391.50 1 usually ships 7-19 days
37 273-8302 Gear motor $1,798.50 1 usually ships 7-19 days
38 273-8303 Electric motor holder $177.10 1 usually ships 7-19 days
39 273-8304 Closure cap $15.73 1 usually ships 7-19 days
40 273-8124 Washer $0.99 1 usually ships 7-19 days
41 273-7502 Screw M5 x 12 $1.91 1 usually ships 1-5 days
