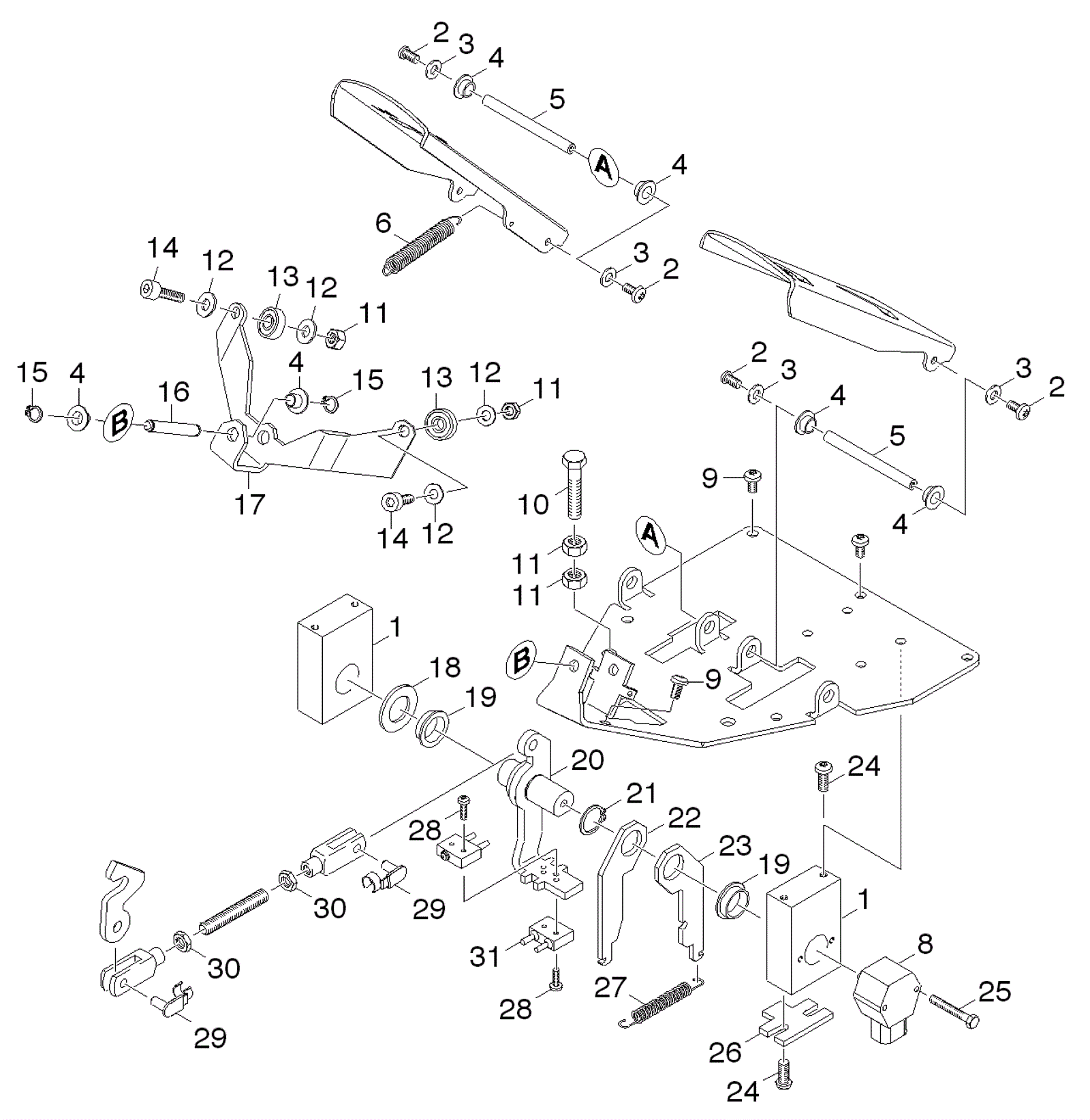

KM 120/150 Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8123 Pedal bearing Call for price 2 usually ships 7-19 days
2 173-6196 Screw M5 x 12mm $4.49 4 ships same day
3 273-8124 Washer $0.99 4 usually ships 7-19 days
4 273-8125 Bushing $6.38 6 usually ships 7-19 days
5 273-8126 Bolt Call for price 2 usually ships 7-19 days
6 273-8127 Extension spring $13.86 2 usually ships 7-19 days
N/S 273-8128 Angle joint Call for price 1 usually ships 7-19 days
8 273-8129 Angle sensor $874.50 1 usually ships 7-19 days
9 273-7023 Screw M6 x 12 $2.61 7 usually ships 1-5 days
10 273-8130 Screw M8 x 45 hex head $6.11 2 usually ships 7-19 days
11 999-1651 Nut M8-1 hex stainless steel $2.83 6 ships same day
12 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
13 173-6208 Ball bearing $22.55 2 usually ships 1-5 days
14 273-8131 Screw M8 x 25 socket cap $1.94 2 usually ships 7-19 days
15 183-4102 Spring clip $1.35 2 usually ships 1-5 days
16 273-8132 Bolt Call for price 1 usually ships 7-19 days
17 273-8133 Bracket $48.40 1 usually ships 7-19 days
18 273-8134 Washer Call for price 1 usually ships 7-19 days
19 273-8135 Plain bearing $24.24 2 usually ships 7-19 days
20 273-8136 Pedal lever assembly Call for price 1 usually ships 7-19 days
21 273-8137 Locking ring $3.94 1 usually ships 7-19 days
22 273-8138 Pedal element Call for price 1 usually ships 7-19 days
23 273-8139 Pedal element Call for price 1 usually ships 7-19 days
24 183-0236 Screw $0.62 6 usually ships 8-21 days
25 273-8140 Screw M4 x 35 hex head Call for price 2 usually ships 7-19 days
26 273-8141 Throttle pedal element $6.93 1 usually ships 7-19 days
27 273-8142 Extension spring $4.62 1 usually ships 7-19 days
28 273-6476 Screw $3.70 4 usually ships 1-5 days
29 273-8143 Bolt $5.50 2 usually ships 7-19 days
30 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
31 273-8145 Micro switch $195.80 1 usually ships 7-19 days
