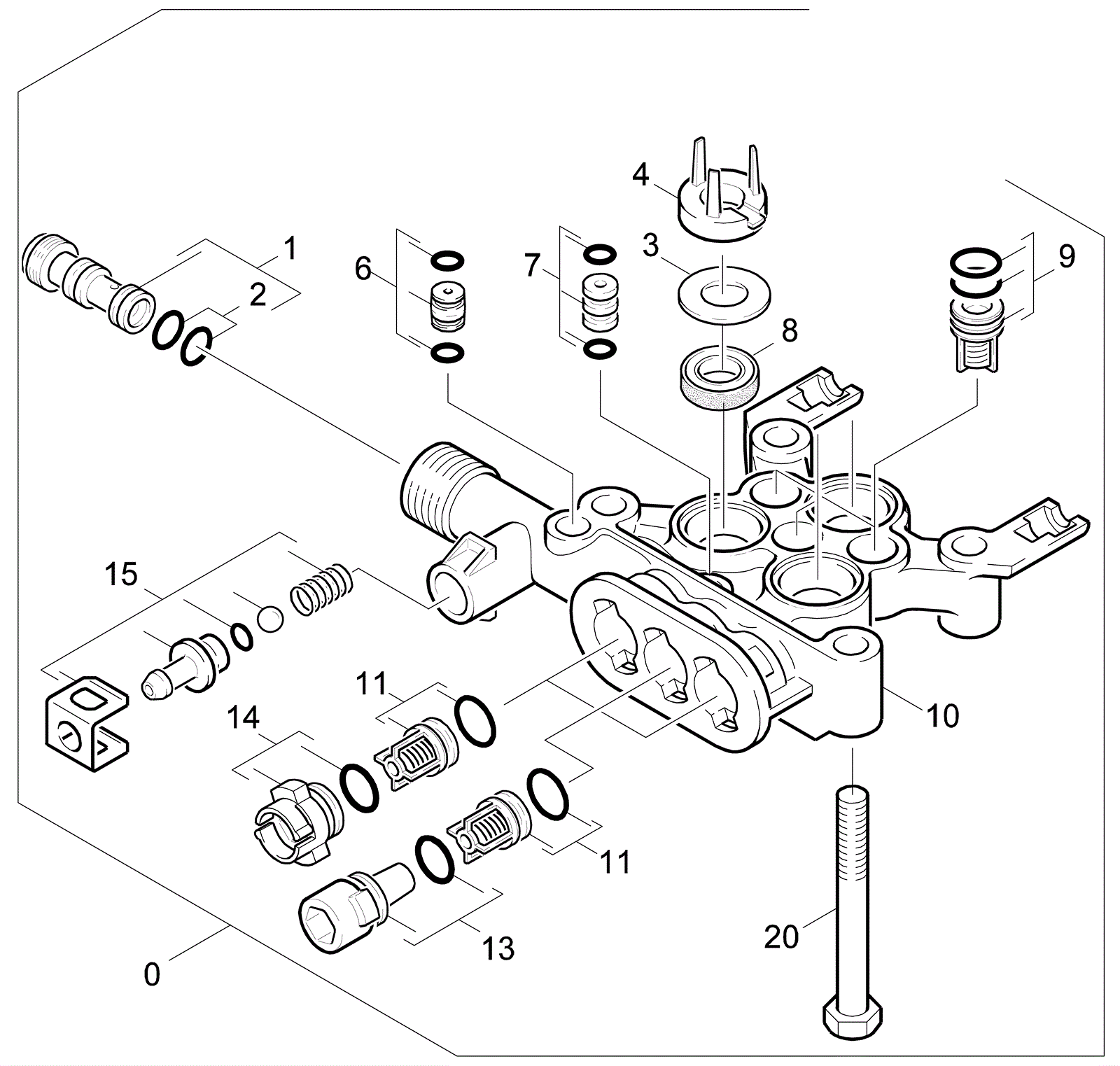

G1800LB Cylinder Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7975 Nozzle insert $14.25 1 usually ships 14-22 days
2 273-7976 Gasket $4.48 2 usually ships 14-22 days
3 273-7977 Washer $1.45 3 usually ships 14-22 days
4 273-7978 Washer (OBSOLETE) $2.06 3 usually ships 14-22 days
6 273-7979 Throttle $21.26 1 usually ships 14-22 days
7 273-7980 Joining piece $24.35 1 usually ships 14-22 days
8 273-7981 Grooved ring $9.11 3 usually ships 14-22 days
9 273-7982 Valve $9.90 3 usually ships 14-22 days
10 273-7983 Cylinder head $62.70 1 usually ships 14-22 days
11 273-7984 Pressure valve $21.63 3 usually ships 14-22 days
13 273-7985 Plug $8.37 1 usually ships 14-22 days
14 273-7986 Plug $8.49 1 usually ships 14-22 days
15 273-7987 Spare part set $22.56 1 usually ships 14-22 days
20 273-7988 Screw M8 x 75-8.8 hex head $5.62 4 usually ships 14-22 days
0 273-7989 Pump assembly $385.00 1 usually ships 14-22 days
