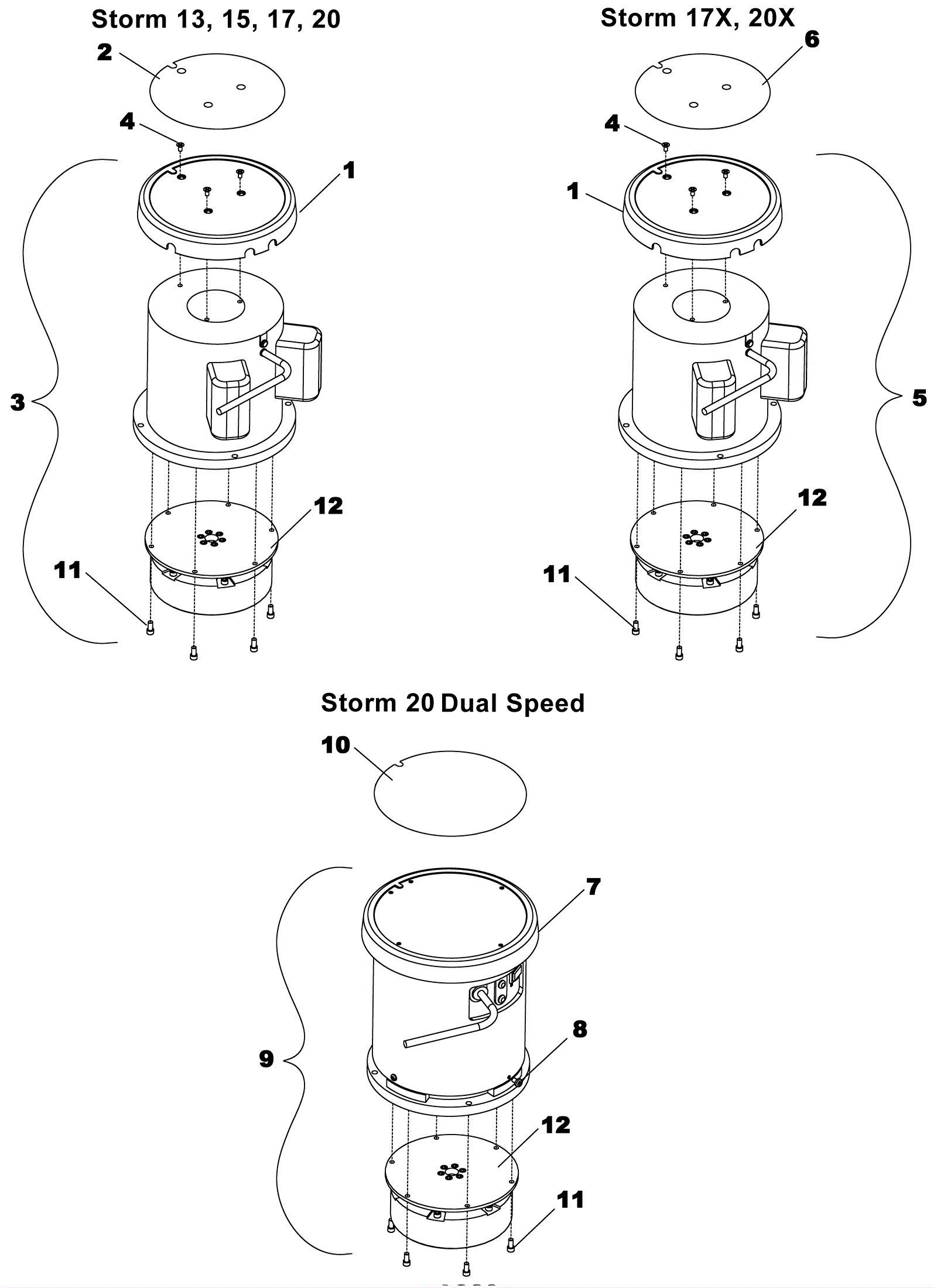

DECATHLON20 U19962 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4665 Motor cover $112.41 1 usually ships 11-15 days
2 173-4190 115V 1 HP motor $1,217.93 1 (includes 1, 3, 5, 9) usually ships 11-15 days
3 173-4668 Screw M5-.8 x 15mm $5.08 3 usually ships 1-5 days
4 173-4191 115V 1.5 HP motor $2,448.16 1 (includes 1, 4, 6, 11, 12) usually ships 11-15 days
5 173-4676 Motor adapter plate (OBSOLETE) $64.35 1 usually ships 11-15 days
6 173-4671 Motor cover assembly $117.12 1 usually ships 11-15 days
8 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 8 (includes 5-7, 9) ships same day
9 173-4675 Screw M5 x .8 x 15mm socket head $4.17 6 usually ships 11-15 days
N/S 991-1611 20amp circuit breaker $27.80 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X) ships same day
N/S 173-4677 30amp circuit breaker $35.08 1 (Storm 20 dual speed) usually ships 11-15 days
N/S 173-4678 50amp bridge rectifier $80.63 1 (Storm 20 dual speed) usually ships 11-15 days
N/S 273-1089 Carbon brush (pkg of 4) (OBSOLETE) $71.50 1 (Storm 20 dual speed) usually ships 11-15 days
N/S 173-0221 25amp fuse $70.04 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X, Storm 20 dual speed) ships same day
N/S 173-2868 Fuse holder $90.63 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X, Storm 20 dual speed) usually ships 11-15 days
N/S 173-2869 Sealed ball bearing $30.02 2 usually ships 11-15 days
N/S 170-0694 Odum coupling $15.85 1 ships same day
N/S 173-4679 Dual speed switch assembly $148.30 1 (Storm 20 dual speed) usually ships 1-5 days
N/S 173-4680 Circuit breaker boot $6.29 1 usually ships 11-15 days
N/S 173-4681 Motor shaft ring $15.30 1 usually ships 1-5 days
N/S 173-4684 Motor armature $566.50 1 (Storm 20 dual speed) usually ships 1-5 days
N/S 173-4194 30 uF run capacitor $99.00 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X) usually ships 11-15 days
N/S 173-4195 340 uF start capacitor $112.41 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X) usually ships 11-15 days
N/S 173-4196 Centrifugal weight assembly $72.97 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X) usually ships 1-5 days
N/S 173-4197 Stationary end cap switch $87.69 1 (Storm 13, Storm 15, Storm 17, Storm 20, Storm 17X, Storm 20X) usually ships 11-15 days
