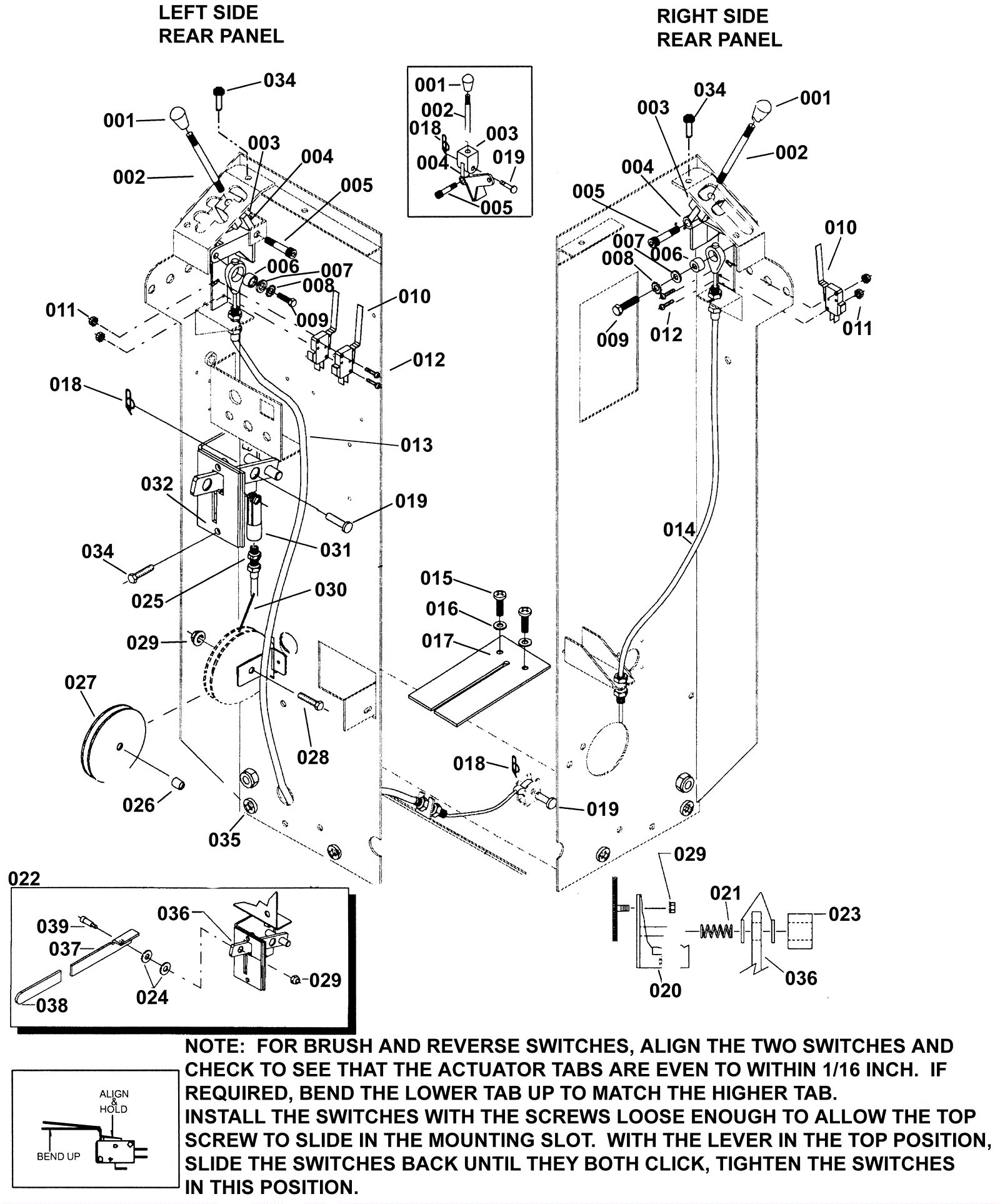

VOYAGER E Rear Tower Mechanical Assemblies

#PartDescriptionPriceReqNotesAvailability
001 173-1901 Solution lever knob $18.70 2 usually ships 1-5 days
002 173-0539 Brush vac control handle $51.92 2 usually ships 1-5 days
003 173-0540 Clevis rod end $154.31 2 usually ships 1-5 days
004 173-0541 Handle pivot lever assembly $133.10 2 usually ships 1-5 days
005 999-1056 Bolt 5/16-18 x 1 shoulder stainless steel $32.63 2 ships same day
006 173-0542 Spacer (OBSOLETE) $18.04 2 usually ships 7-19 days
007 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
008 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
009 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
010 173-0543 Lever bent switch $78.65 3 usually ships 1-5 days
011 173-2579 Nut 4-40 hex star lock $0.99 4 usually ships 1-5 days
012 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
013 173-0544 Brush lift cable $61.42 1 usually ships 1-5 days
014 173-0545 Vac shoe lift cable $78.10 1 usually ships 7-19 days
015 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
016 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
017 173-0546 Splash guard $12.06 1 usually ships 1-5 days
018 173-1130 Cotter ring $2.42 3 ships same day
019 173-1474 Clevis pin $0.99 3 usually ships 1-5 days
020 173-7103 Idler handle pivot bracket assembly $209.00 1 usually ships 1-5 days
021 173-4832 Compression spring 3/4 x 1 1/2 x 5/8 $14.88 1 usually ships 1-5 days
022 N/A Not available Call for price 1 Belt tension handle assembly (product is obsolete) usually ships 3-26 days
023 173-4836 Shaft collar 3/8 $16.72 1 usually ships 7-19 days
024 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
025 999-0952 Nut 1/4-28 hex stainless steel $0.99 2 ships same day
026 173-5123 Tube $15.95 1 usually ships 1-5 days
027 173-5121 Cable pulley $0.99 1 usually ships 1-5 days
028 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 1 ships same day
029 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
030 173-7104 Tension cable $50.70 1 usually ships 1-5 days
031 173-1479 Yoke end clevis $45.74 1 usually ships 1-5 days
032 173-7105 Handle guide plate $15.73 1 usually ships 1-5 days
034 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
035 999-1058 Screw 1/4-20 x 3/4 pan head thread rolling phillips $0.99 4 ships same day
036 173-7106 Belt tension handle $57.31 1 usually ships 1-5 days
037 173-2290 Lift lever handle bracket $73.15 1 usually ships 7-19 days
038 173-1169 Flat bar grip 3/16 x 1 inch $9.08 1 usually ships 1-5 days
039 173-1228 Bolt 5/16 OD x 1/2 long shoulder $4.29 1 usually ships 1-5 days
