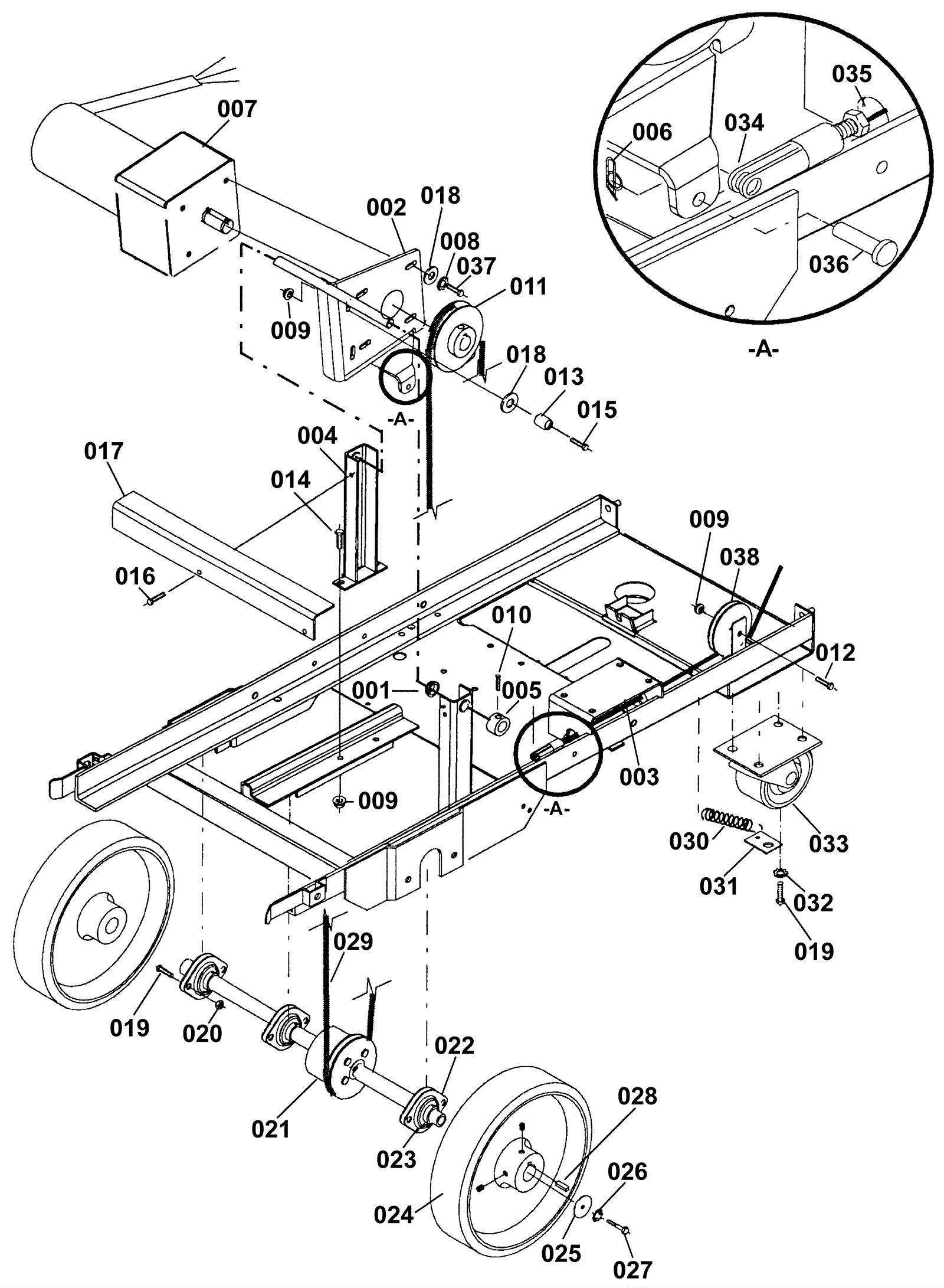

VOYAGER E Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2337 1/2 cylinder bearing $6.16 2 usually ships 7-19 days
002 173-7094 Motor pivot bracket assembly $146.30 1 usually ships 1-5 days
003 N/A Not available Call for price Cable assembly usually ships 3-26 days
004 173-7095 Support motor pivot bracket $89.10 2 usually ships 1-5 days
005 173-3036 Brush pivot axle-steel collar $19.58 2 usually ships 1-5 days
006 173-1130 Cotter ring $2.42 1 ships same day
007 173-7096 Traction motor assembly (OBSOLETE) $1,321.88 1 usually ships 1-5 days
008 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
009 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 9 ships same day
010 999-1051 Screw 1/4-28 x 1/4 knurled point socket set plain finish $0.99 2 usually ships 1-5 days
011 173-7097 V-belt pulley 3-1/2 $99.00 1 usually ships 1-5 days
012 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 1 ships same day
013 173-7098 Spacer 1/2 x /32 x 1-3/8 $32.56 2 usually ships 1-5 days
014 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
015 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 2 ships same day
016 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
017 173-7099 Support bracket $130.90 1 usually ships 1-5 days
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
019 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 14 ships same day
020 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
021 173-7100 Differential $352.70 1 usually ships 1-5 days
022 173-0397 Bearing flangette (pkg of 2) $34.32 3 usually ships 1-5 days
023 173-0398 Bearing 1 inch bore $72.74 3 usually ships 1-5 days
024 173-0396 Wheel 10 x 2 1/2 bore $272.80 2 usually ships 1-5 days
025 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
026 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
027 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
028 173-0518 Key 1/4 x 1/4 x 2 1/2 $2.11 2 usually ships 1-5 days
029 173-7101 Belt $22.98 1 usually ships 1-5 days
030 173-5155 Extension spring $12.76 2 usually ships 7-19 days
031 173-0558 Spring hook plate $13.97 2 usually ships 1-5 days
032 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
033 173-0557 4 inch swivel caster wheel $62.15 2 usually ships 7-19 days
034 173-1479 Yoke end clevis $45.74 1 usually ships 1-5 days
035 999-0952 Nut 1/4-28 hex stainless steel $0.99 1 ships same day
036 173-1474 Clevis pin $0.99 1 usually ships 1-5 days
037 999-1054 Bolt 1/4-28 x 1 hex head stainless steel $0.99 4 ships same day
038a 173-5123 Tube $15.95 1 usually ships 1-5 days
038b 173-5121 Cable pulley $0.99 1 usually ships 1-5 days
