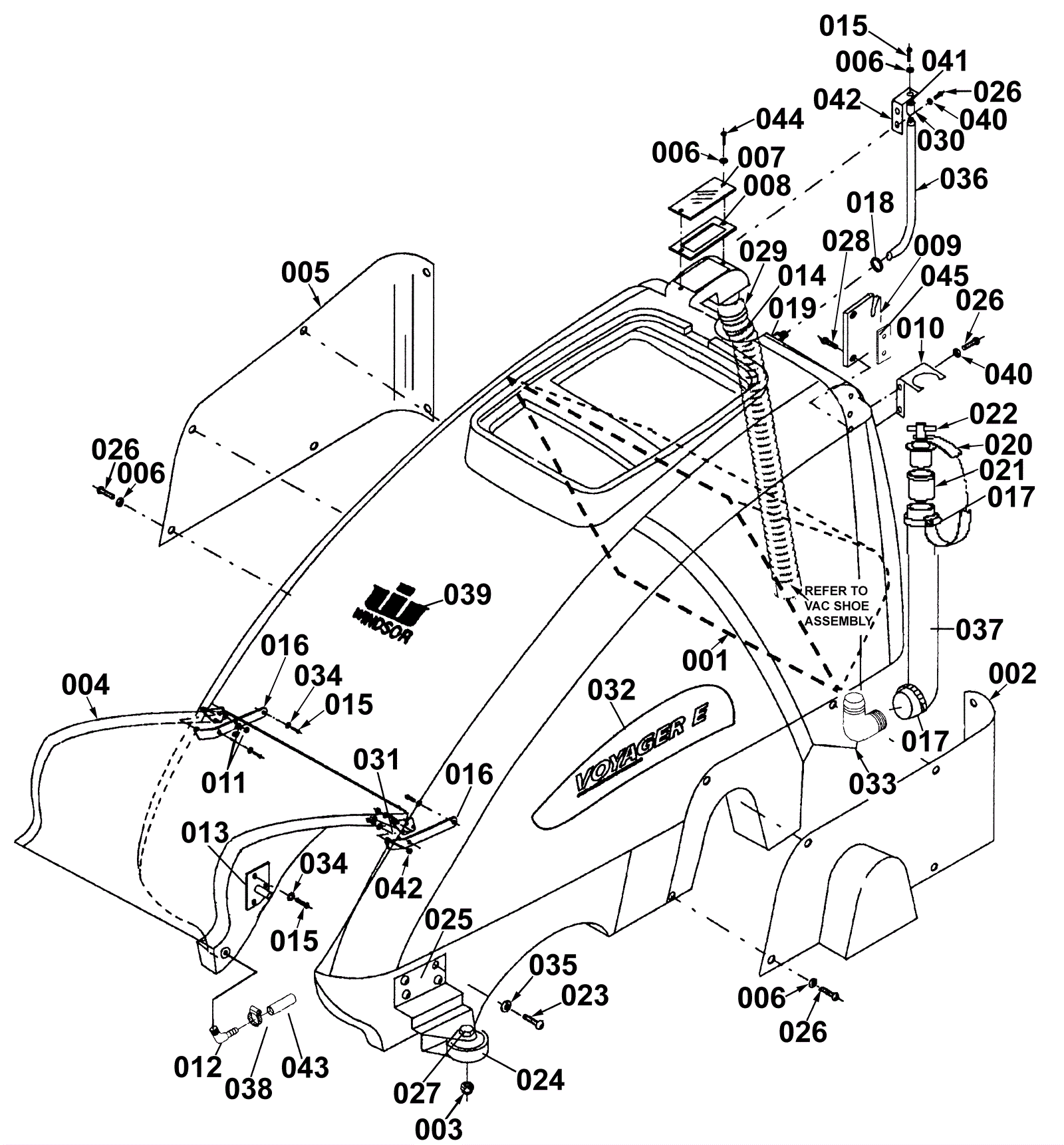

VOYAGER E Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-7082 Tank assembly with diaphragm (OBSOLETE) $1,824.20 1 usually ships 1-5 days
002 173-7083 Left tank cover $126.75 1 usually ships 1-5 days
003 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
004 173-0576 Front tank cover $195.80 1 usually ships 1-5 days
005 173-0577 Right side tank cover $126.75 1 usually ships 1-5 days
006 999-0998 Washer #10 flat stainless steel $0.99 12 ships same day
007 173-0579 Sight window cover $20.35 1 usually ships 7-19 days
008 173-0580 Sight window gasket $25.08 1 usually ships 7-19 days
009 173-0581 Rear frame tank mounting plate $68.20 1 usually ships 1-5 days
010 173-0599 Recovery hose mounting bracket (OBSOLETE) $11.46 1 usually ships 1-5 days
011 173-2472 Nut 10-32 with star washer $0.99 6 usually ships 1-5 days
012 173-7084 Hose barb 45 degree 1/4 x 3/8 $8.75 2 usually ships 1-5 days
013a 173-0583 Right tank pivot assembly $58.85 1 usually ships 1-5 days
013b 173-0584 Left tank pivot assembly $79.20 1 usually ships 1-5 days
014 173-0585 Hose assembly $111.10 1 usually ships 1-5 days
015 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 5 ships same day
016 173-0595 Hinge bracket $33.66 2 usually ships 1-5 days
017 189-0329 Hose clamp $31.44 2 usually ships 1-5 days
018 997-2000 Hose clamp $2.37 1 ships same day
019 173-0613 Hosebarb $18.04 1 usually ships 1-5 days
020 189-4123 Drain plug tether $28.16 1 usually ships 7-19 days
021 189-4130 1/2 inch hosebarb $27.94 1 usually ships 11-24 days
022 173-1213 Drain plug $116.83 1 ships same day
023 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 6 ships same day
024 189-0326 Bumper wheel $29.04 2 usually ships 11-24 days
025 173-7085 Guide wheel bracket assembly (OBSOLETE) $236.19 1 usually ships 1-5 days
026 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 14 ships same day
027 173-0594 Drain hose plug bracket $46.64 1 usually ships 1-5 days
028 173-2753 Screw 1/4-20 x 3/4 flat head cap screw $1.16 4 usually ships 7-19 days
029 997-2007 Hose clamp $2.07 1 ships same day
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
031a 173-0589 Left door hinge $36.85 1 usually ships 1-5 days
031b 173-0590 Right door hinge $40.70 1 usually ships 1-5 days
032a 173-7086 Voyager logo left label $10.51 1 usually ships 1-5 days
032b 173-7087 Voyager logo right label $10.51 1 usually ships 1-5 days
033 173-7088 Hose barb 1-1/2 x 1-1/2 $26.51 1 usually ships 1-5 days
034 999-0017 Washer 1/4 external star lock $0.99 8 ships same day
035 999-1049 Washer 1/4 split lock zinc plated $0.99 6 ships same day
036 173-0593 Solution drain hose with stamp $95.34 1 usually ships 1-5 days
037 173-1216 Drain hose 1 1/2 x 24 inch $104.51 1 usually ships 7-19 days
038 173-1821 Hose clamp $6.39 4 ships same day
039 173-7089 Windsor logo label (OBSOLETE) Call for price 1 usually ships 1-5 days
040 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
041 173-1175 Hosebarb $31.46 1 usually ships 1-5 days
042 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
043 173-7090 Hose 3/8 x 11 nylon braid $25.72 2 usually ships 1-5 days
044 173-2454 Screw 10-3/4 polyfast $1.40 2 ships same day
045 173-7091 Spacer plate $21.89 3 usually ships 1-5 days
