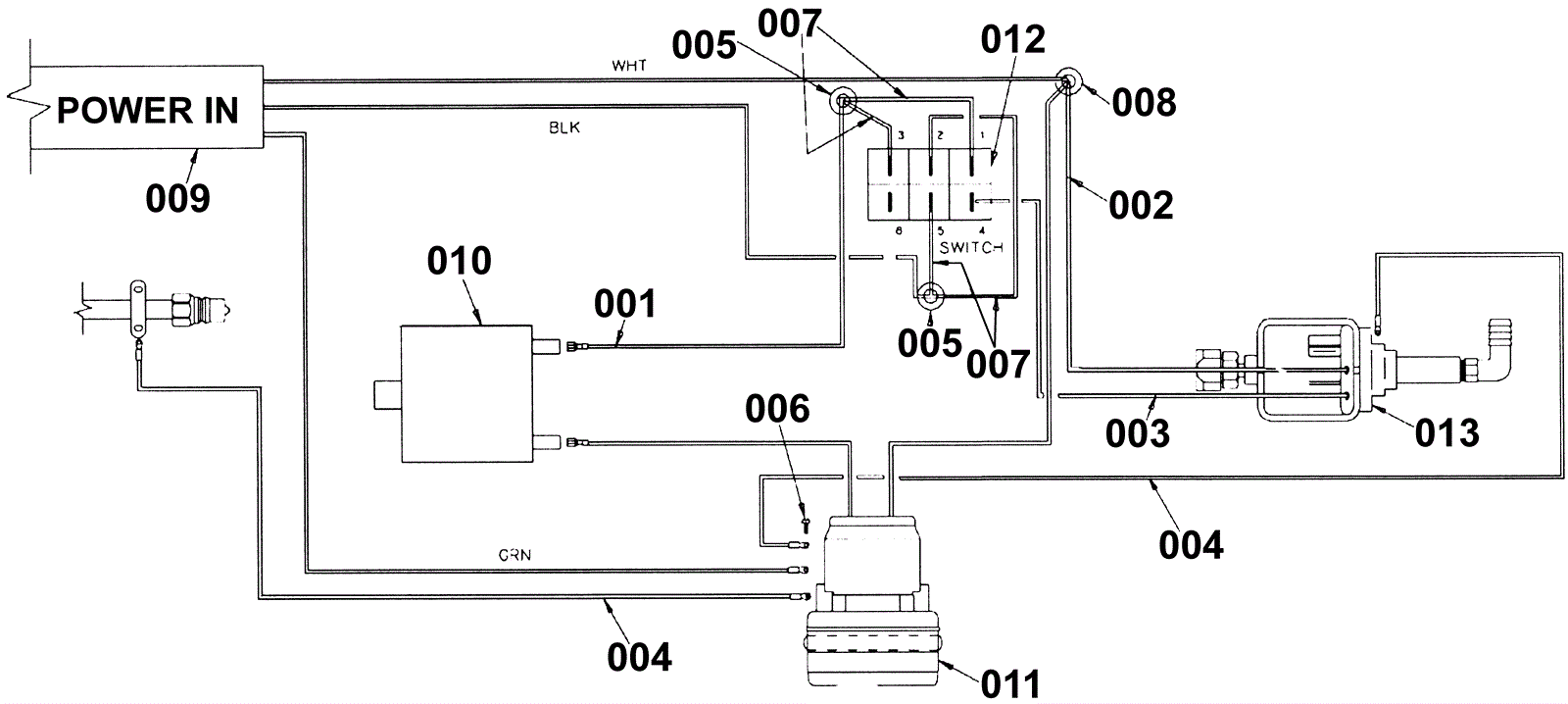

PRESTO Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 173-2730 Wire 8 in black (OBSOLETE) $2.24 usually ships 1-5 days
002 173-2729 Wire 12 in white $18.18 usually ships 1-5 days
003 173-2728 Wire 13 in black (OBSOLETE) $3.61 usually ships 1-5 days
004 173-2038 14 inch wire (green) $0.99 usually ships 1-5 days
005 173-2727 Crimp type wire nut $1.32 usually ships 1-5 days
006 173-2711 Screw 10-32 x 1/2 ground $2.11 usually ships 1-5 days
007 173-2726 3 in Wire black (OBSOLETE) $1.97 usually ships 1-5 days
008 173-2725 Crimp wire nut $3.85 usually ships 1-5 days
009 173-2707 18/3 cord set 25 foot (yellow) $66.11 usually ships 14-22 days
010 173-2053 6amp circuit breaker $47.52 usually ships 14-22 days
011a 173-2694 Vac motor $272.86 (new motor update requires 011b) usually ships 14-22 days
011b 373-5029 Female coupler 18G .25 term $3.23 usually ships 1-5 days
012 173-2724 On-off switch $39.49 usually ships 1-5 days
013a 173-2722 Pump assembly 100v $22.77 usually ships 14-22 days
013b 173-0212 120V Pump (OBSOLETE) $145.20 usually ships 14-22 days
