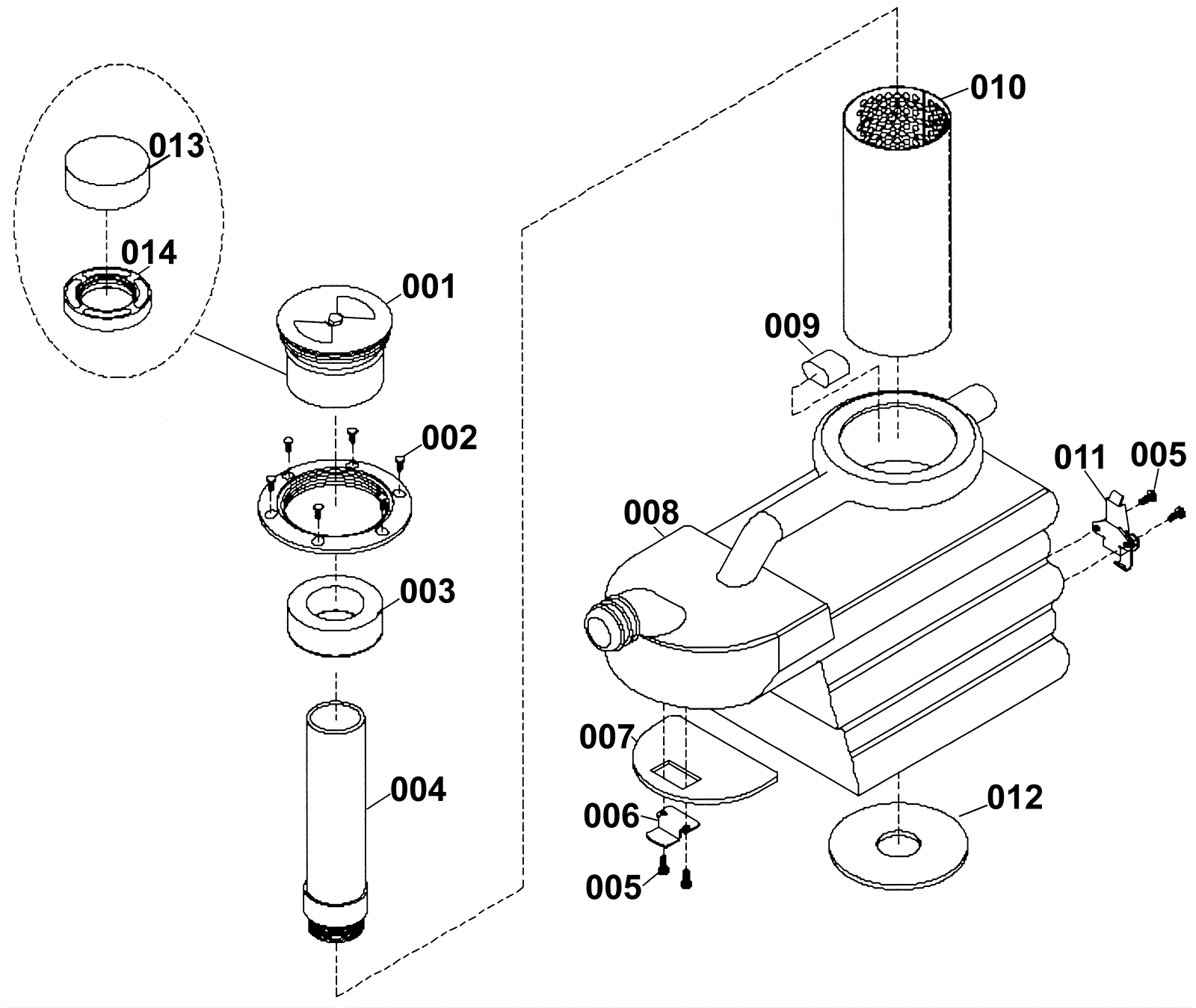

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-7046
|
Access cover assembly (OBSOLETE) |
1 |
|
|
002 |
999-1141
|
Screw 8 x 3/4 pan head phillips zinc plated |
6 |
|
|
003 |
173-7048
|
Spotter floating weight assembly |
1 |
|
|
004 |
173-7049
|
Spotter tube assembly |
1 |
|
|
005 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
006 |
173-7050
|
Recovery/solution tank grip bracket |
1 |
|
|
007 |
173-7051
|
Recovery tank seal gasket |
1 |
|
|
008 |
173-7052
|
Recovery spotter tank (dark blue) |
1 |
|
|
009 |
173-7053
|
Handle recovery tank plug |
1 |
|
|
010 |
173-7054
|
Backsplash shield plate |
1 |
|
|
011 |
173-7055
|
Tension latch |
1 |
|
|
012 |
273-0910
|
Vacuum bracket gasket |
1 |
|
|
013 |
173-7056
|
Spotter foam air filter |
|
|
|
014 |
173-7057
|
PVC plat shutoff bushing 3 inches |
|
|
|
