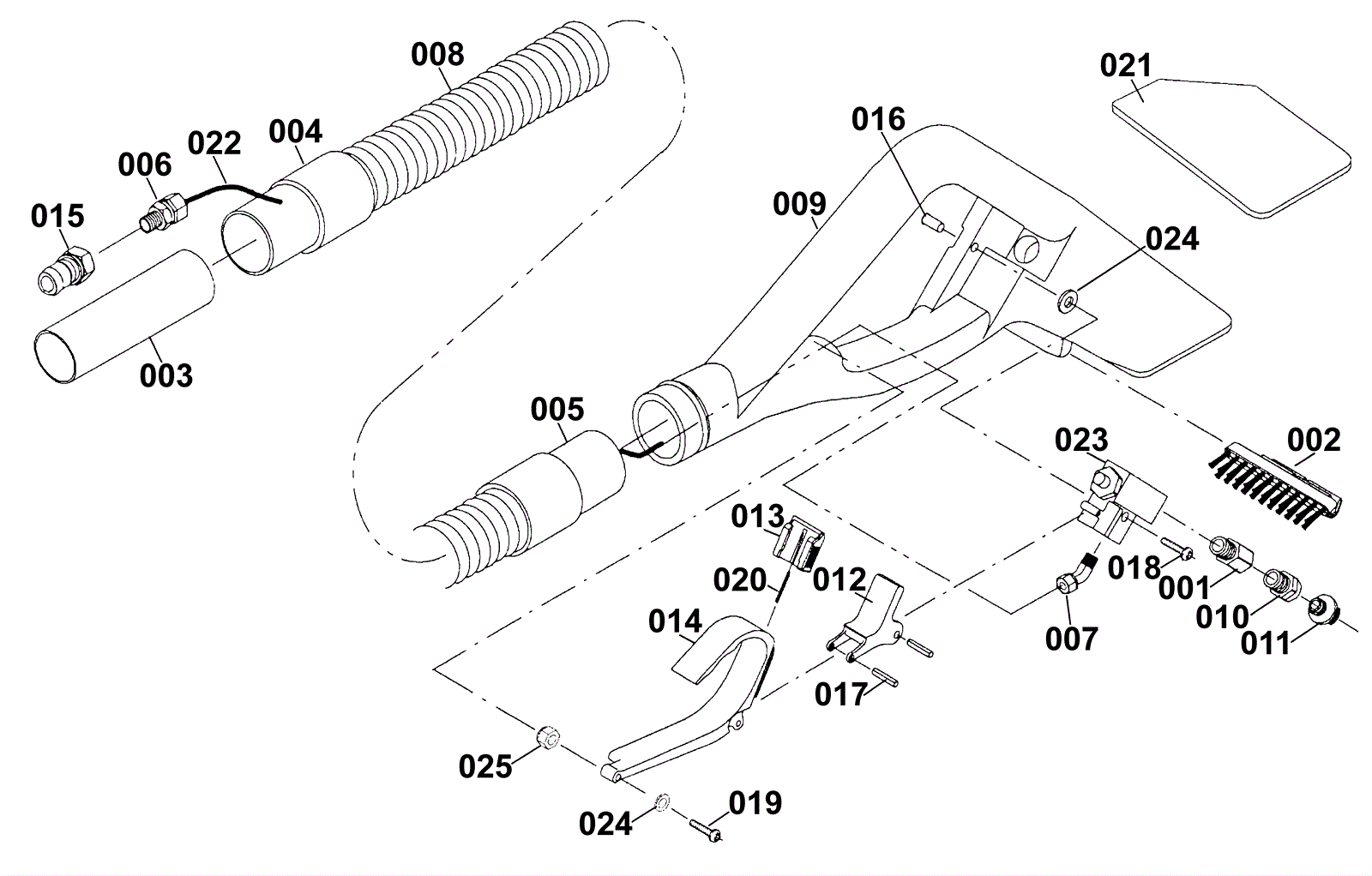

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2672
|
Adapter 1/8 x 1/8 |
|
|
|
002 |
173-2673
|
Brush |
|
|
|
003 |
173-2674
|
Coupler 1.5 vac hose |
|
|
|
004 |
173-2675
|
Cuff |
|
|
|
005 |
173-2676
|
Cuff |
|
|
|
006 |
173-5000
|
Connector 1/4 x 1/8 (OBSOLETE) |
|
|
|
007 |
173-7016
|
45 degree elbow 1/4 x 1/8 |
|
|
|
008 |
173-2678
|
Hose |
|
|
|
009 |
173-2679
|
Housing handtool |
|
|
|
010 |
173-2086
|
Mini-quick jet body with seal |
|
|
|
011 |
173-2680
|
Mini quick replacement jet |
|
|
|
012 |
173-2585
|
Trigger lever |
|
|
|
013 |
173-2586
|
Lever lock |
|
|
|
014 |
173-2587
|
Handle lever |
|
|
|
015 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
|
|
|
016 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
|
|
|
017 |
173-2019
|
Roll pin |
|
|
|
018 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
|
|
|
019 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
|
|
|
020 |
173-2589
|
Compression spring .08D x .75L x .01W |
|
|
|
021 |
173-2683
|
Upholstery shield |
|
|
|
022 |
173-2684
|
Tube 1/4 |
|
|
|
023 |
173-2685
|
Valve 1/8 |
|
|
|
025 |
173-5037
|
Nut 6-32 elastic stop (OBSOLETE) |
|
|
|
