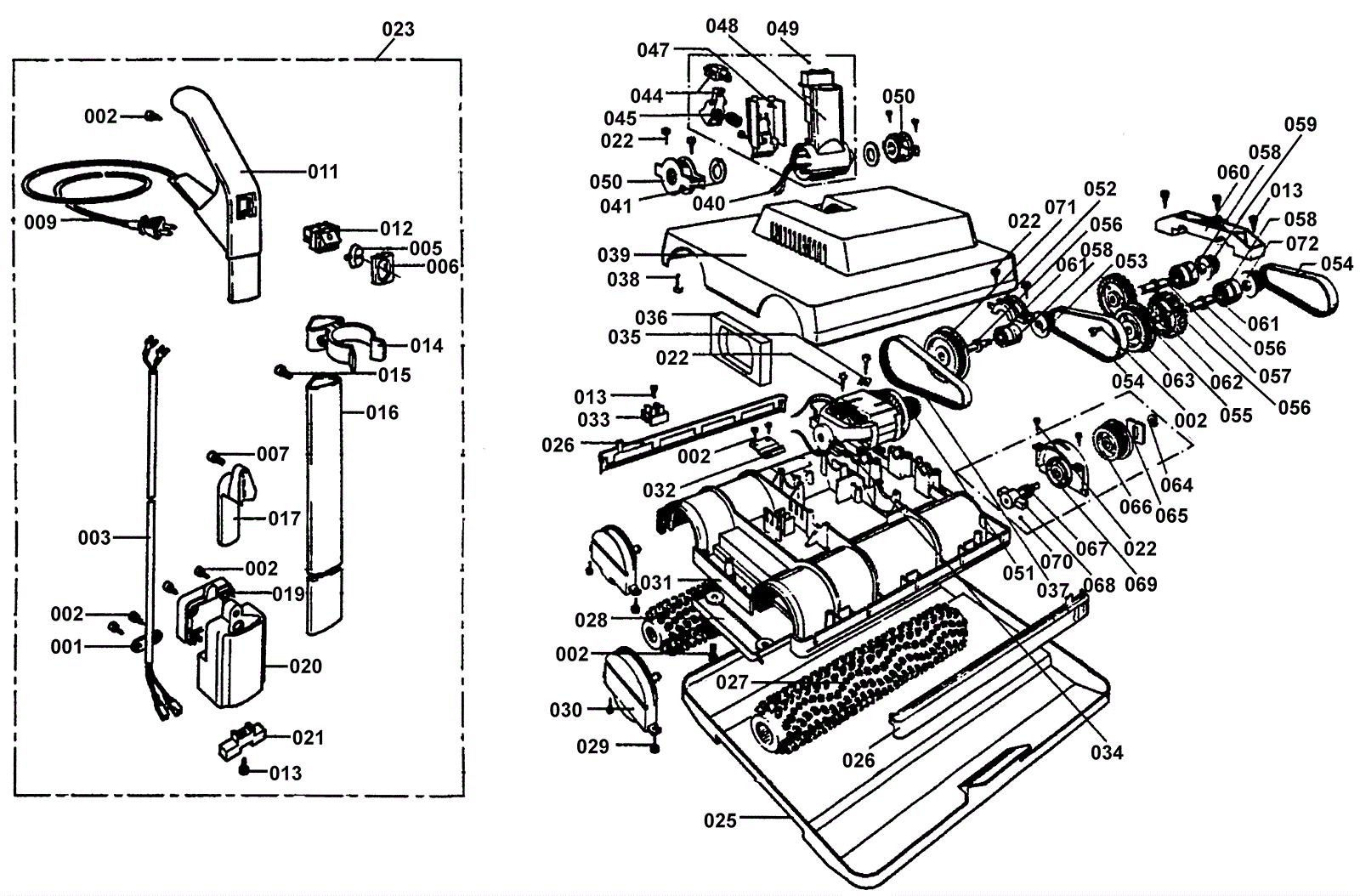

DRIMATIC Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-0030 Cable clamp $3.58 usually ships 7-19 days
002 173-0823 Screw 3.9 x 13 (OBSOLETE) $0.99 usually ships 1-5 days
005 173-0825 Switch cap (OBSOLETE) $50.11 usually ships 1-5 days
006 173-0826 Switch cap holder (OBSOLETE) Call for price usually ships 1-5 days
007 173-0158 Screw $1.64 usually ships 7-19 days
009 173-0825 Switch cap (OBSOLETE) $50.11 usually ships 1-5 days
011 173-0827 Handle grip $73.15 usually ships 1-5 days
012 173-2385 Switch $39.93 ships same day
013 173-0136 Screw M3-9 x 19mm $2.12 usually ships 7-19 days
014 173-0828 Clamp $13.42 usually ships 1-5 days
015 173-2457 Screw M4 x 12mm $1.64 ships same day
016 173-0829 Handle $32.78 usually ships 1-5 days
017 173-0830 Cable hook $29.45 usually ships 1-5 days
019 173-0831 Handle connector cover (OBSOLETE) $8.58 usually ships 1-5 days
020 173-0832 Handle connector (OBSOLETE) $17.35 usually ships 1-5 days
021 173-0833 Contact cover (OBSOLETE) $50.61 usually ships 1-5 days
022 173-0135 Screw M3-.5 x 16mm $0.99 usually ships 7-19 days
023 173-0834 Complete handle $161.61 usually ships 1-5 days
025 173-0835 Storage tray $72.37 usually ships 1-5 days
026 173-0836 Bumper $14.54 usually ships 1-5 days
027 173-0837 Brush assembly $145.20 usually ships 1-5 days
028 173-0838 Base plate (OBSOLETE) $37.11 usually ships 1-5 days
029 173-0839 Screw M4 x 10 A2 $2.97 usually ships 1-5 days
030 173-0840 Bearing block $58.55 usually ships 1-5 days
031 173-0841 Brush housing $130.90 usually ships 7-19 days
032 173-0842 Handle stop spring $3.30 usually ships 1-5 days
033 173-0167 Terminal block (2 wire) (OBSOLETE) $30.47 usually ships 7-19 days
034a 173-0843 Motor 200 with 120 volt $205.70 usually ships 1-5 days
034b 173-0844 Motor 200 with 100 volt $205.70 usually ships 1-5 days
034c 173-0095 Carbon brush with spring (pkg of 2) $47.52 usually ships 7-19 days
035 173-0090 Lock washer $1.40 usually ships 7-19 days
036 173-0845 Motor gasket $5.50 usually ships 1-5 days
037 173-0846 Drive belt $49.28 usually ships 1-5 days
038 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated $0.99 ships same day
039 173-0848 Cover $64.35 usually ships 1-5 days
040 173-0849 Swivel neck wires with contacts $24.53 usually ships 1-5 days
041 173-0850 Spacer $3.94 usually ships 1-5 days
044 173-0851 Plunger button complete $8.64 usually ships 1-5 days
045 173-0852 Spring $0.99 usually ships 1-5 days
047 173-0853 Swivel neck cover $7.87 usually ships 1-5 days
048 173-0854 Swivel neck $22.65 usually ships 1-5 days
049 173-0855 Swivel neck assembly $49.05 usually ships 1-5 days
050 173-0856 Swivel neck support assembly $25.08 usually ships 1-5 days
051 173-0857 Motor pulley $27.17 usually ships 1-5 days
052 173-0858 Clamp $7.37 usually ships 7-19 days
053 173-0859 Pulley $29.59 usually ships 1-5 days
054 173-0860 Drive belt $66.55 usually ships 7-19 days
055 173-0861 Gear wheel $10.62 usually ships 1-5 days
056 173-0862 Spacer $5.50 usually ships 1-5 days
057 173-0863 Shaft (right hand) $9.63 usually ships 1-5 days
058 173-0864 Ball bearing $45.43 usually ships 1-5 days
059 173-0865 Pulley $30.47 usually ships 7-19 days
060 173-0866 Bridge $15.98 usually ships 1-5 days
061 173-0867 Shaft (left hand) $9.74 usually ships 1-5 days
062 173-0868 Gear wheel $43.56 usually ships 1-5 days
063 173-0869 Pulley $9.41 usually ships 1-5 days
064 173-0870 Clip $5.28 usually ships 1-5 days
065 173-0871 End plate $3.63 usually ships 1-5 days
066 173-0872 Pulley $22.66 usually ships 1-5 days
067 173-0873 Spring $3.52 usually ships 1-5 days
068 173-0874 Brush drive coq $33.66 usually ships 1-5 days
069 173-0875 Bearing block $55.02 usually ships 1-5 days
070 173-0876 Bearing block assembly (left hand) $180.40 usually ships 7-19 days
071 173-0877 Pulley $28.60 usually ships 1-5 days
072 173-0878 Pulley $30.47 usually ships 1-5 days
