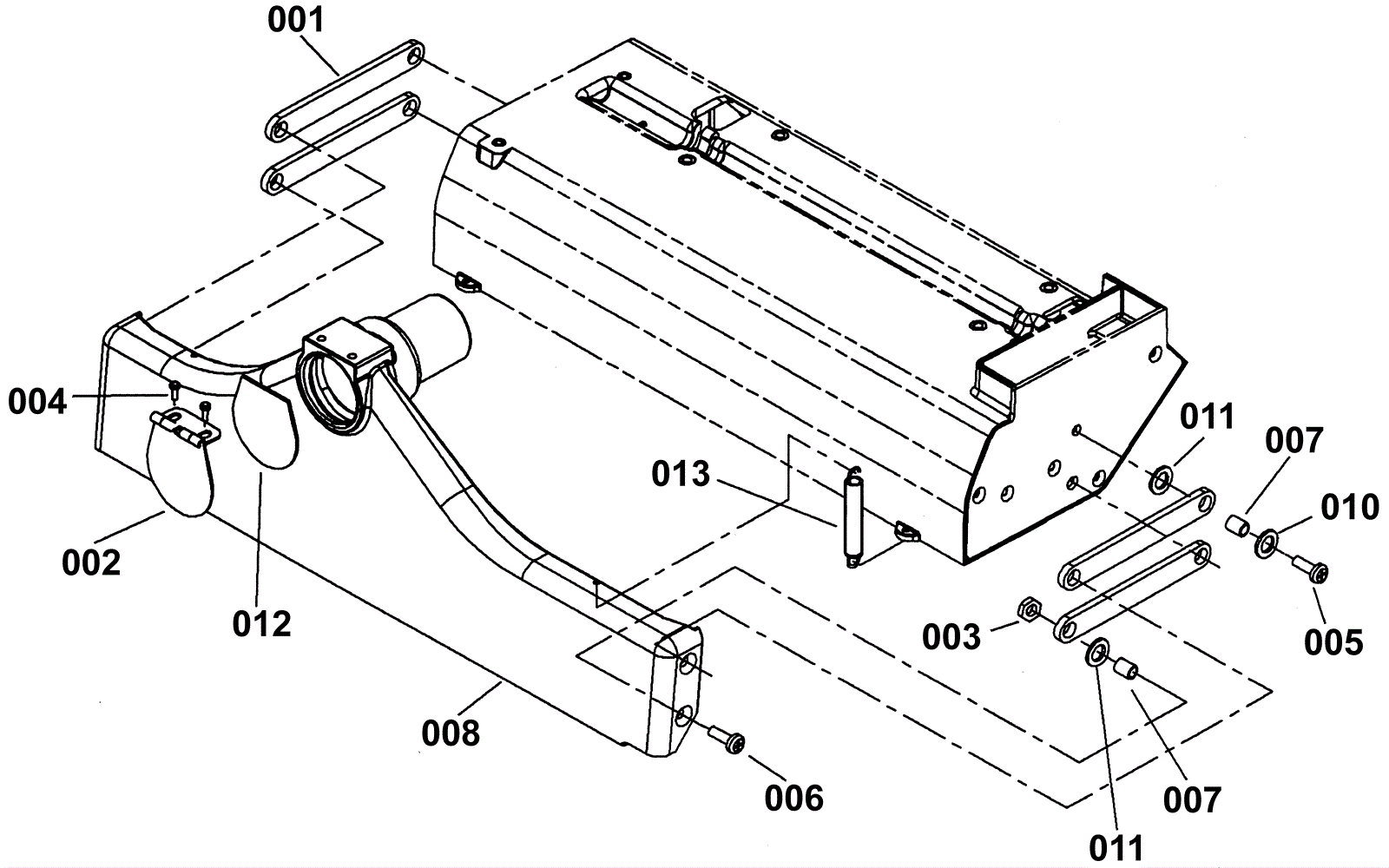

ADMIRAL Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2137 Parallel arm $23.40 4 usually ships 7-19 days
002 189-4204 Accessory port cover $107.03 1 usually ships 11-24 days
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
004 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.90 2 usually ships 7-19 days
005 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
006 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 4 ships same day
007 189-4140 Spacer $2.16 8 usually ships 11-24 days
008 173-0632 15 inch vacuum shoe $505.00 1 usually ships 7-19 days
010 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
011 999-1053 Washer 5/16 internal star lock stainless steel $0.99 8 ships same day
012 189-4141 Accessory port gasket $7.70 1 ships same day
013 173-2255 Extension spring $12.40 2 usually ships 7-19 days
