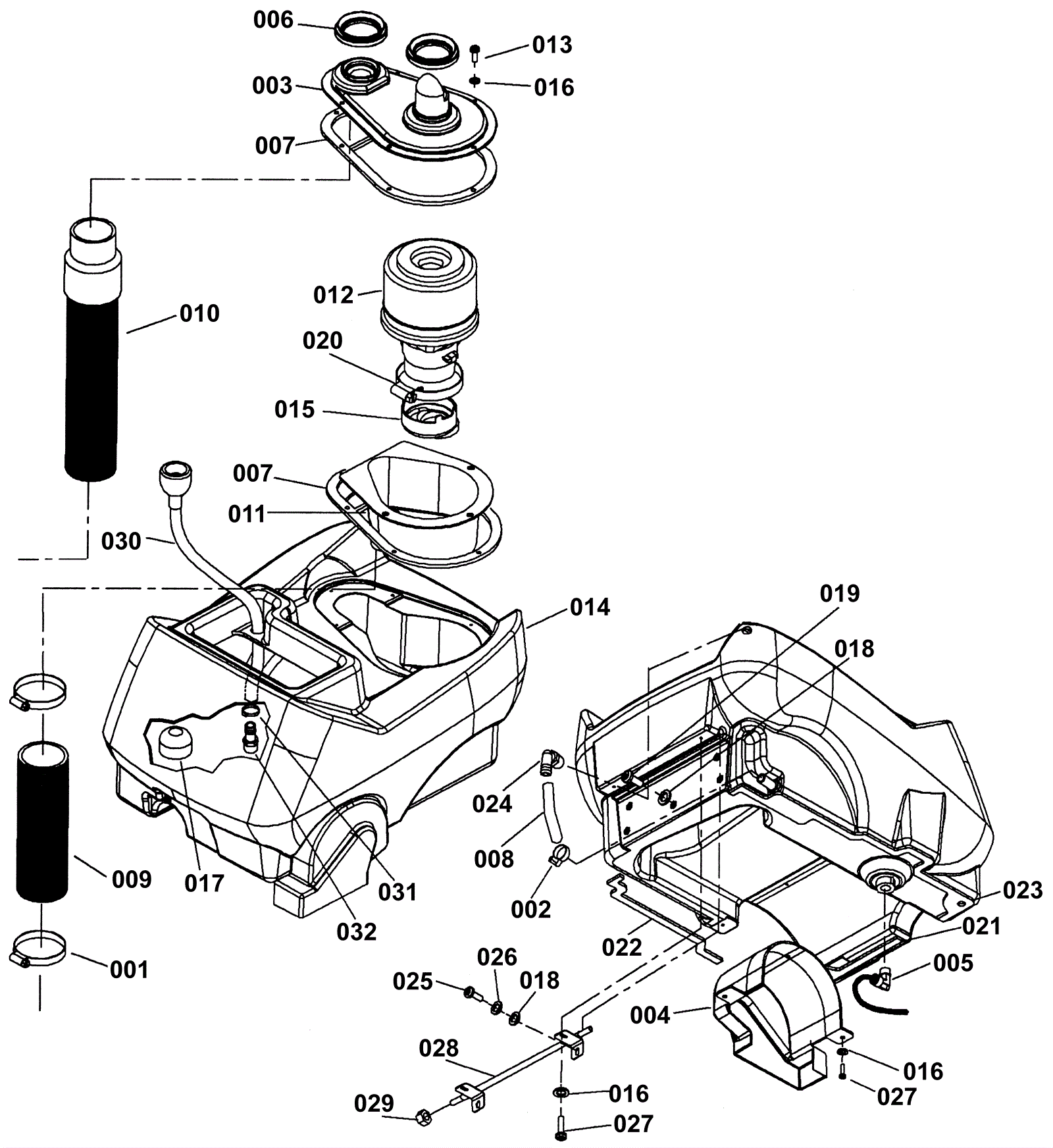

ADMIRAL Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 273-5693 Hose clamp $2.58 2 ships same day
002 173-1821 Hose clamp $5.81 1 ships same day
003 173-2230 Vacuum motor cover $71.01 1 usually ships 7-19 days
004 173-2231 Belt cover $37.70 1 usually ships 7-19 days
005 189-4166 Elbow 3/8 x 3/8 inch $38.80 1 usually ships 11-24 days
006 173-2233 Gasket $22.00 2 ships same day
007 173-2234 Gasket $44.10 2 ships same day
008 173-2235 Hose 1/2 x 12 inch (clear) $19.20 1 usually ships 7-19 days
009 173-0626 Hose 1 1/2 x 3 inch (black) $22.00 1 usually ships 7-19 days
010 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $135.38 1 usually ships 11-24 days
011 173-2238 Vacuum motor housing $23.10 1 usually ships 7-19 days
012a 173-2239 120V vacuum motor assembly $675.00 1 (OEM) usually ships 7-19 days
012b 991-1239 120V 3 stage vacuum motor peripheral $232.66 1 (NON-OEM) usually ships 5-16 days
012c 273-4024 Carbon brush (pkg of 2) $10.50 1 usually ships 7-19 days
012d 173-5227 Vacuum motor gasket $5.55 1 (top) usually ships 7-19 days
012e 273-0910 Vacuum bracket gasket $26.30 1 (bottom) usually ships 7-19 days
013 173-0627 Screw 10 x 1 pan head phillips self tapping type b $3.80 6 usually ships 7-19 days
014a 173-0631 Solution tank assembly $432.00 1 (includes 005, 007, 014, 017, 021-024) usually ships 7-19 days
014b 173-0628 Solution tank $370.07 1 usually ships 7-19 days
015 173-0629 Cooling vent $46.10 1 usually ships 7-19 days
016 999-0998 Washer #10 flat stainless steel $0.99 11 ships same day
017 189-4181 3/8 inch mesh strainer $36.57 1 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
019 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
020 173-2242 Hose clamp $13.70 1 usually ships 7-19 days
021 173-2243 Front left tank gasket $6.65 1 usually ships 7-19 days
022 173-2244 Rear left tank gasket $8.50 1 usually ships 7-19 days
023 173-2245 Right tank gasket $22.00 1 usually ships 7-19 days
024 173-1072 Hosebarb 3/8 x 1/2 inch $8.40 1 usually ships 7-19 days
025 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
026 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
027 173-2454 Screw 10-3/4 polyfast $1.27 5 ships same day
028 173-0630 Handle pivot weldment $164.00 1 usually ships 7-19 days
029 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
030 173-2246 Fill hose assembly $121.00 1 usually ships 7-19 days
031 173-1821 Hose clamp $5.81 1 ships same day
032 173-2247 Hosebarb 1/2 x 3/8 inch $7.70 1 usually ships 7-19 days
