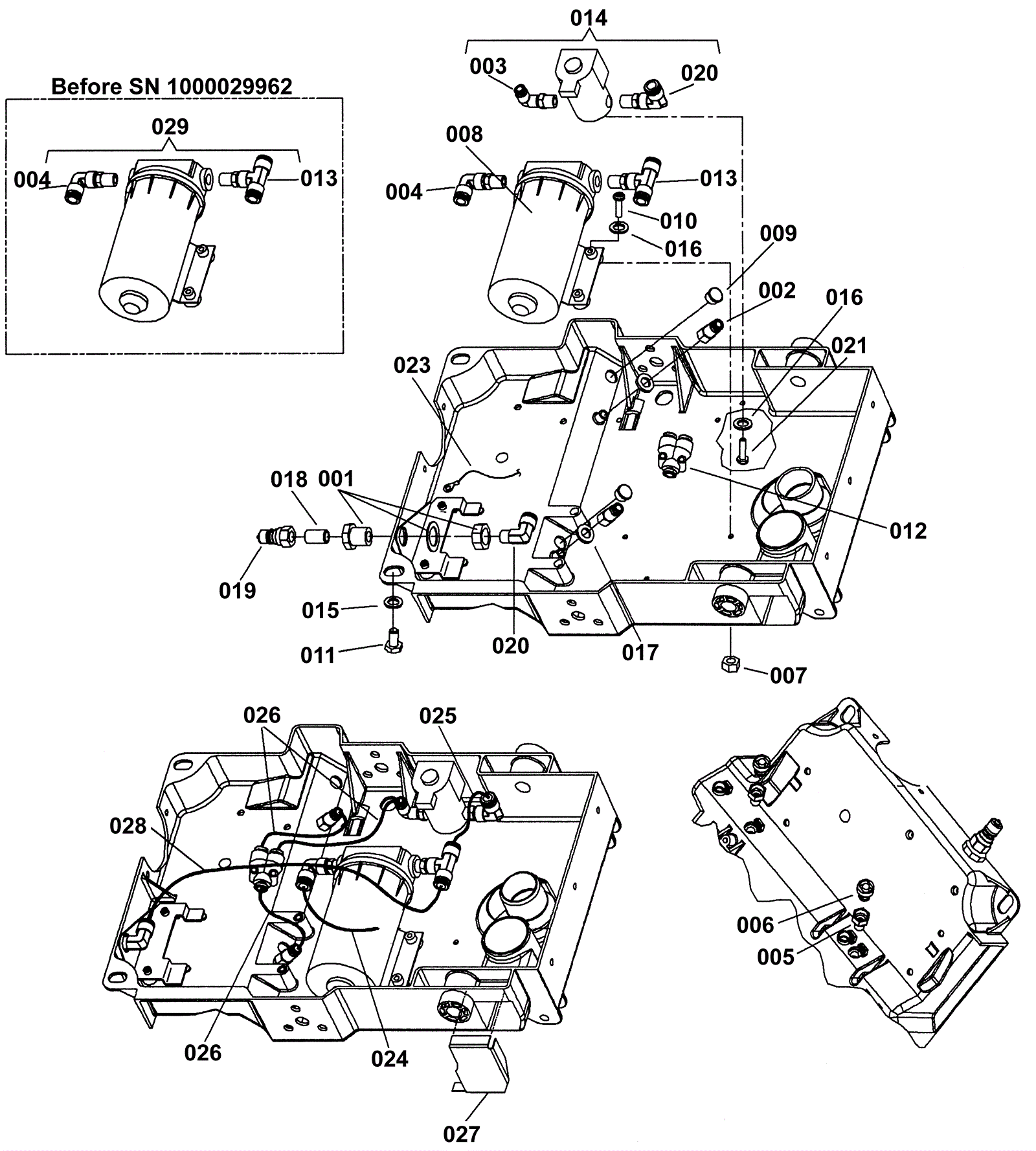

ADMIRAL Pump Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-4207 Anchor coupling $65.45 1 usually ships 11-24 days
002 173-2207 Quick connect $18.80 2 usually ships 7-19 days
003 189-4208 90 degree swivel elbow 1/4 x 1/4 inch $53.43 1 usually ships 11-24 days
004 189-4209 90 degree swivel elbow 3/8 x 3/8 inch $72.60 1 usually ships 11-24 days
005 173-2210 Jet body $7.87 2 ships same day
006 173-0623 Mini promax jet $48.30 2 ships same day
007 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
008 189-4159 Pump assembly $470.09 1 (includes 004 and 013) (after SN 1000029963) usually ships 7-19 days
009 173-2213 Nylon plug (OBSOLETE) $1.92 2 usually ships 7-19 days
010 173-2493 Screw 10-32 x 1 phillips head $0.90 2 usually ships 7-19 days
011 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
012 173-2214 Fitting $48.00 1 usually ships 7-19 days
013 189-4212 Tee fitting 3/8 x 3/8 inch $99.03 1 usually ships 11-24 days
014 173-2216 Solenoid valve assembly $299.05 1 (includes 003 and 020) ships same day
015 999-6684 Washer 1/4 flat stainless steel $0.99 2 usually ships 11-24 days
016 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
017 173-2555 Washer 7/16 x 3/16 inch rubber $15.00 2 usually ships 7-19 days
018 189-4213 1/4 inch nipple $9.95 1 ships same day
019 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 1 usually ships 3-15 days
020 189-4214 90 degree elbow 1/4 x 3/8 inch $57.22 2 usually ships 11-24 days
021 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
023 173-2218 22 inch wire (green) $12.40 1 usually ships 1-5 days
024 189-4161 Urethane hose 3/8 x 29 inch $53.95 1 usually ships 11-24 days
025 189-4217 Nylon hose 3/8 x 6 inch $31.12 1 usually ships 11-24 days
026 189-4162 Urethane hose 1/4 x 6 inch $4.53 3 ships same day
027 173-2222 Intake screen $38.10 1 usually ships 1-5 days
028 192-4468 Hose 1 pair (OBSOLETE) $24.38 1 usually ships 30-75 days
029 189-4159 Pump assembly $470.09 1 (includes 004 and 013) (before SN 1000029962) usually ships 7-19 days
