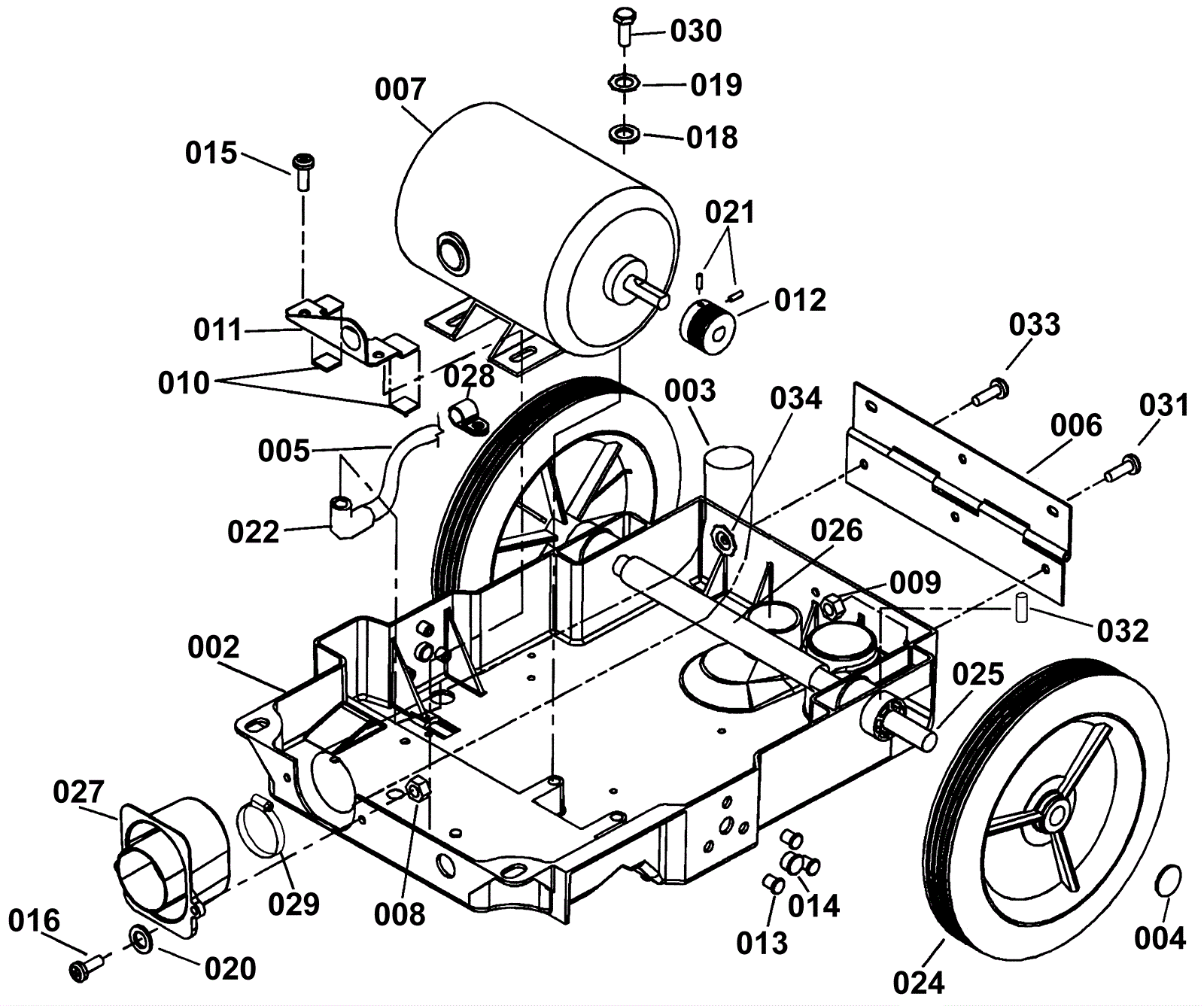

ADMIRAL Frame Assembly

#PartDescriptionPriceReqNotesAvailability
002 173-0617 Frame $293.07 1 usually ships 14-22 days
003 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 14-27 days
004 173-2064 Axle cap $5.50 2 ships same day
005 173-2180 Main harness $258.94 1 usually ships 14-22 days
006 173-2192 Hinge $137.71 1 usually ships 14-22 days
007 189-4148 120V brush motor assembly $519.06 1 usually ships 14-22 days
008 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
009 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
010 173-2194 Foam tape $5.08 2 usually ships 14-22 days
011 173-2195 Clamping plate $24.24 1 usually ships 1-5 days
012 173-2196 Pulley $90.63 1 ships same day
013 173-0622 Plug $0.99 6 usually ships 1-5 days
014 173-2213 Nylon plug (OBSOLETE) $2.11 2 usually ships 14-22 days
015 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
016 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
019 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
020 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
021 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
022 173-2199 90 degree strain relief $1.98 1 usually ships 14-22 days
024 273-4000 10 inch gray wheel $141.24 2 ships same day
025 173-2200 Axle $55.20 1 usually ships 1-5 days
026 173-2201 Heat shrink $10.40 10 usually ships 1-5 days
027 189-4247 Frame and tank seal $189.23 1 usually ships 14-27 days
028 173-2094 P clamp $1.63 1 usually ships 1-5 days
029 273-5693 Hose clamp $3.04 1 ships same day
030 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
031 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 2 ships same day
032 173-2206 Roll pin $1.84 1 usually ships 14-22 days
033 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 ships same day
034 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
