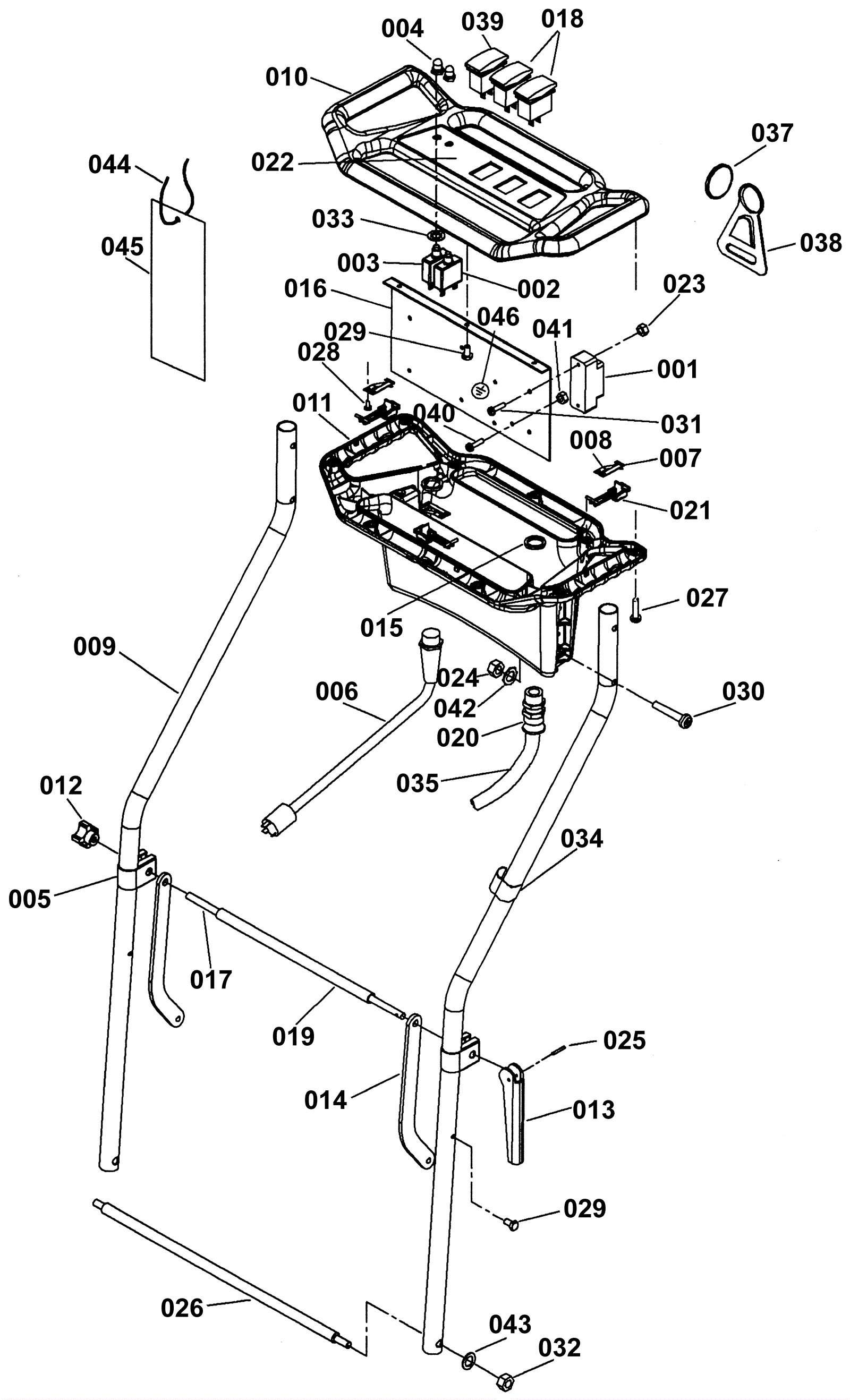

ADMIRAL Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1888 Terminal block $50.50 1 usually ships 7-19 days
002 189-4092 15amp circuit breaker $14.14 1 usually ships 7-19 days
003 173-2053 6amp circuit breaker $43.20 1 usually ships 7-19 days
004 189-0312 3/8 inch circuit breaker boot $54.32 2 usually ships 11-24 days
005 173-2068 Handle adjustment locking clamp $34.90 2 usually ships 7-19 days
006 189-4164 14/3 pigtail cord with twist lock 22 inch $109.25 1 usually ships 11-24 days
007 173-2167 Electrical contact (flat) $39.50 3 usually ships 7-19 days
008 173-2168 Electrical contact (bent) $41.50 3 usually ships 7-19 days
009 173-0169 Carrying handle $30.60 2 usually ships 1-5 days
010 173-2170 Front Handle $82.00 1 usually ships 7-19 days
011 173-2171 Rear Handle $458.09 1 usually ships 7-19 days
012 173-1736 Knob $12.20 1 usually ships 7-19 days
013 173-2072 Handle clamp lever $40.30 1 usually ships 7-19 days
014 173-0620 Handle adjustment link $46.10 2 usually ships 7-19 days
015 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 2 usually ships 7-19 days
016 173-2173 Control panel plate $86.50 1 usually ships 1-5 days
017 173-2069 Handle adjustment locking rod $40.30 1 usually ships 7-19 days
018 189-0319 2 position rocker switch $54.02 2 (vacuum and brush) usually ships 1-5 days
019 173-2056 Sleeve $32.00 1 usually ships 7-19 days
020 173-0682 Strain relief $2.37 1 usually ships 7-19 days
021 173-2176 Trigger switch $13.10 3 (solution) usually ships 7-19 days
022 173-2177 Control panel decal $29.90 1 usually ships 7-19 days
023 173-2522 Nut 6-32 with star washer $0.90 2 usually ships 1-5 days
024 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
025 173-2073 Roll pin $0.90 1 usually ships 7-19 days
026 273-6003 Handle axle $71.50 1 usually ships 7-19 days
027 173-2566 Screw #10 x 1/2 pan head $0.94 9 ships same day
028 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 6 ships same day
029 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.90 5 usually ships 7-19 days
030 173-5054 Bolt 1/4-1-3/4 hex head $2.15 4 usually ships 7-19 days
031 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
033 173-2518 Washer 1/8 interlock $0.90 2 usually ships 1-5 days
034 173-2077 Power cord clip $1.54 2 usually ships 7-19 days
035 173-2180 Main harness $220.00 1 usually ships 7-19 days
037 173-2182 2 inch split ring $1.27 1 usually ships 1-5 days
039 173-2174 3 position rocker switch $58.50 1 (pump) usually ships 7-19 days
040 173-2493 Screw 10-32 x 1 phillips head $0.90 1 usually ships 7-19 days
041 173-2472 Nut 10-32 with star washer $0.90 3 usually ships 1-5 days
042 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
043 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
044 173-3412 Cord 1/8 x 12 inch $11.90 1 usually ships 7-19 days
045 173-0621 Instruction card $5.00 1 usually ships 1-5 days
046 173-2188 Ground symbol decal $4.24 1 usually ships 1-5 days
N/S 173-7516 Hard floor circuit board $483.00 usually ships 1-5 days
