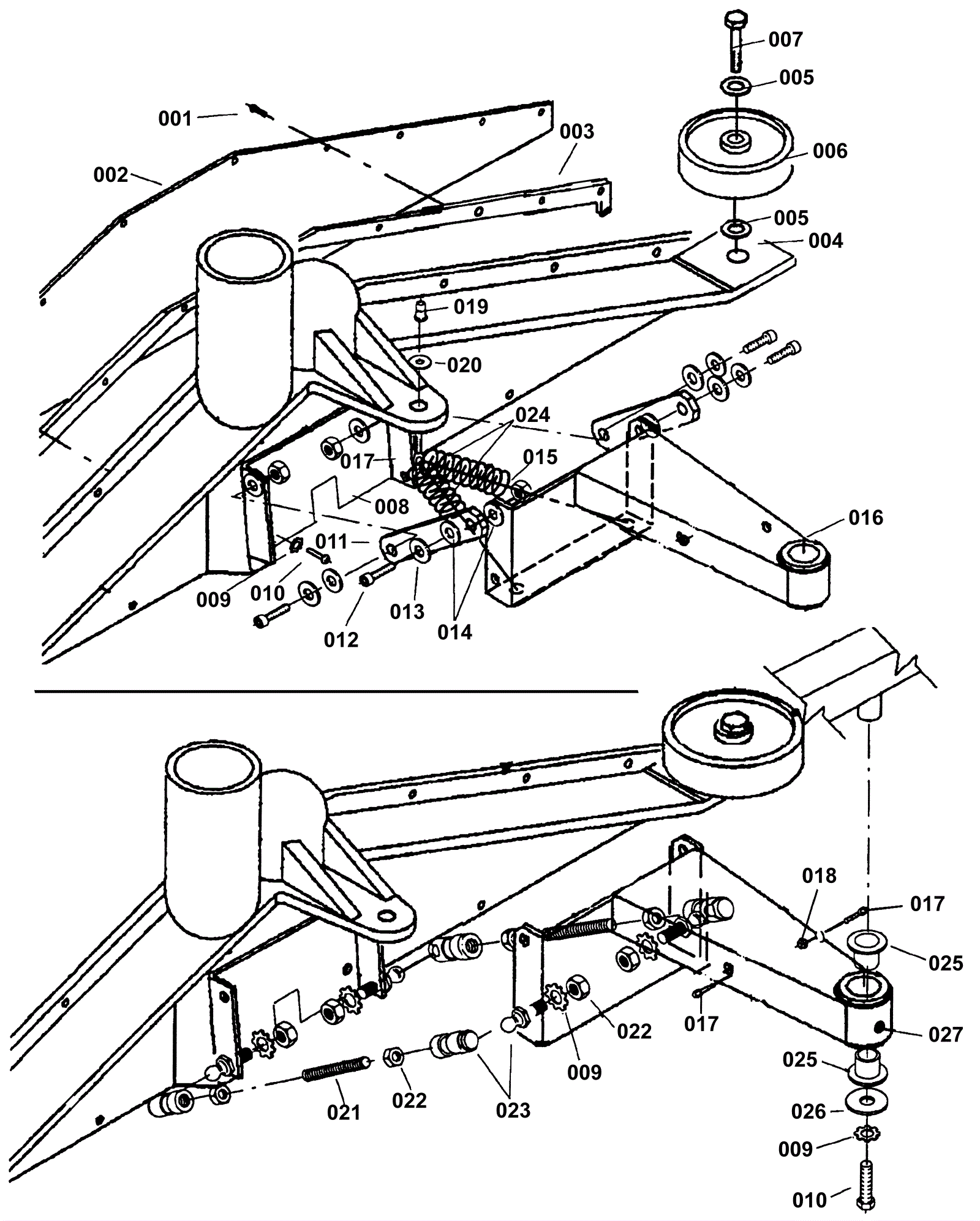

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2549
|
Bolt 10-32 x 3/8 hex head thread rolling with star washer |
13 |
|
|
002 |
173-0601
|
Vacuum shoe cover plate |
1 |
|
|
003 |
173-0602
|
Vacuum shoe plate gasket |
1 |
|
|
004 |
173-0603
|
28 inch vacuum shoe |
1 |
|
|
005 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
006 |
189-0326
|
Bumper wheel |
2 |
|
|
007 |
173-0503
|
Screw 3/8-16 x 1-3/4 hex head cap screw |
2 |
|
|
008 |
173-0604
|
Vac shoe linkage plated bracket |
1 |
|
|
009 |
999-0017
|
Washer 1/4 external star lock |
9 |
|
|
010 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
5 |
|
|
011 |
173-0605
|
Squeegee arm assembly |
2 |
|
|
012 |
173-5107
|
Bolt 5/16 x 3/8 shoulder |
4 |
|
|
014 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
8 |
|
|
015 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
017 |
173-0607
|
Eyebolt 8-32 x 1 |
3 |
|
|
018 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
019 |
173-0608
|
Vacuum shoe adjustment knob (OBSOLETE) |
1 |
|
|
020 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
021 |
173-3277
|
Lower vacuum control arm |
2 |
|
|
022 |
999-0952
|
Nut 1/4-28 hex stainless steel |
12 |
|
|
023 |
173-0609
|
Ball joint assembly (OBSOELTE) |
4 |
|
|
024 |
173-1478
|
Extension spring |
2 |
|
|
025 |
173-0610
|
Flanged bushing |
2 |
|
|
026 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
027 |
173-0611
|
Grease zerk |
1 |
|
|
