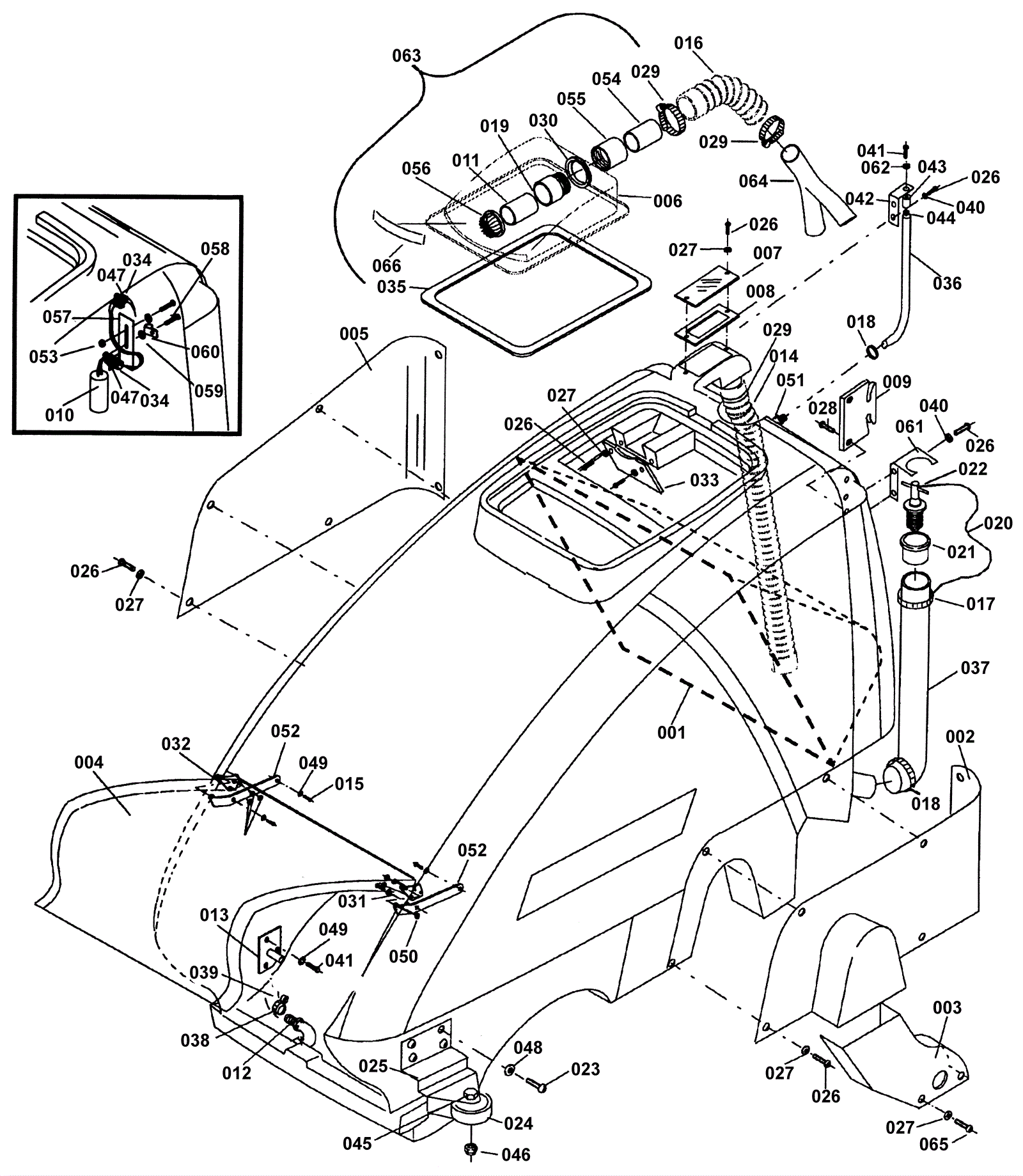

Tank, Cover, and Hardware Assembly

#PartDescription ReqNotesAvailability
001 173-2718 Nut metal 1
002 173-0440 Motor cover 1
003 173-0575 Belt guard cover 1
004 173-0576 Front tank cover 1
005 173-0577 Right side tank cover 1
006 173-0578 Tank dome 1
007 173-0579 Sight window cover 1
008 173-0580 Sight window gasket 1
009 173-0581 Rear frame tank mounting plate 2
010 173-5167 Recovery shut-off float 1
011 173-0582 Tube 1
012 173-1101 1/2 NPT x 3/8 90 diameter hosebarb S/N 4001398 & up 1
013a 173-0583 Right tank pivot assembly 1
013b 173-0584 Left tank pivot assembly 1
014 173-0585 Hose assembly 1
015 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
016 173-0390 Hose vac 1
017 189-4122 Hose clamp 2
018 997-2000 Hose clamp 2
019 173-0586 Adapter 1
020 189-4123 Drain plug tether 1
021 189-4130 1/2 inch hosebarb 1
022 173-1213 Drain plug 1
023 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 8
024 189-0326 Bumper wheel 2
025 173-0587 Guide wheel bracket assembly 2
027 999-0998 Washer #10 flat stainless steel 14
028 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated 4
029 997-2007 Hose clamp 3
030 173-0588 Spacer 1
031 173-0589 Left door hinge 1
032 173-0590 Right door hinge 1
033 173-0591 Recovery tank baffle (OBSOLETE) 1
034 173-1273 Sealed bulkhead fitting 2
035 173-0592 Dome gasket 1
036 173-0593 Solution drain hose with stamp 1
037 173-1216 Drain hose 1 1/2 x 24 inch 1
038 173-1821 Hose clamp 1
039 173-0569 Hose assembly 1
040 999-0311 Washer #10 external star lock zinc plated 4
041 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 5
042 173-0594 Drain hose plug bracket 1
043 173-1175 Hosebarb 1
044 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
045 173-0503 Screw 3/8-16 x 1-3/4 hex head cap screw 2
046 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
047 173-2574 Nut 3/8 hex brass nickel plated thread 2
048 999-0060 Washer 1/4 split lock plain finish 8
049 999-0017 Washer 1/4 external star lock 8
050 999-0086 Nut 10-32 nylon insert lock zinc plated 2
051 173-0613 Hosebarb 1
052 173-0595 Hinge bracket 2
053 173-2472 Nut 10-32 with star washer 8
054 173-0596 Tube 1
055 173-0597 Adapter 1
056 173-3654 Vacuum intake filter 1
057 173-0598 Float bracket 1
058 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated 2
059 999-0006 Washer 3/16 flat zinc plated 2
060 173-1800 5/16 nylon clamp (OBSOLETE) 1
061 173-0599 Recovery hose mounting bracket (OBSOLETE) 1
062 999-0123 Washer 1/4 SAE flat zinc plated 1
063 173-0600 Dome assembly 1
064 173-0389 Y fitting modified adapter 1
065 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
066 173-0253 Warning explosion decal 1
N/S 273-6531 Solution tank (OBSOLETE) 1
