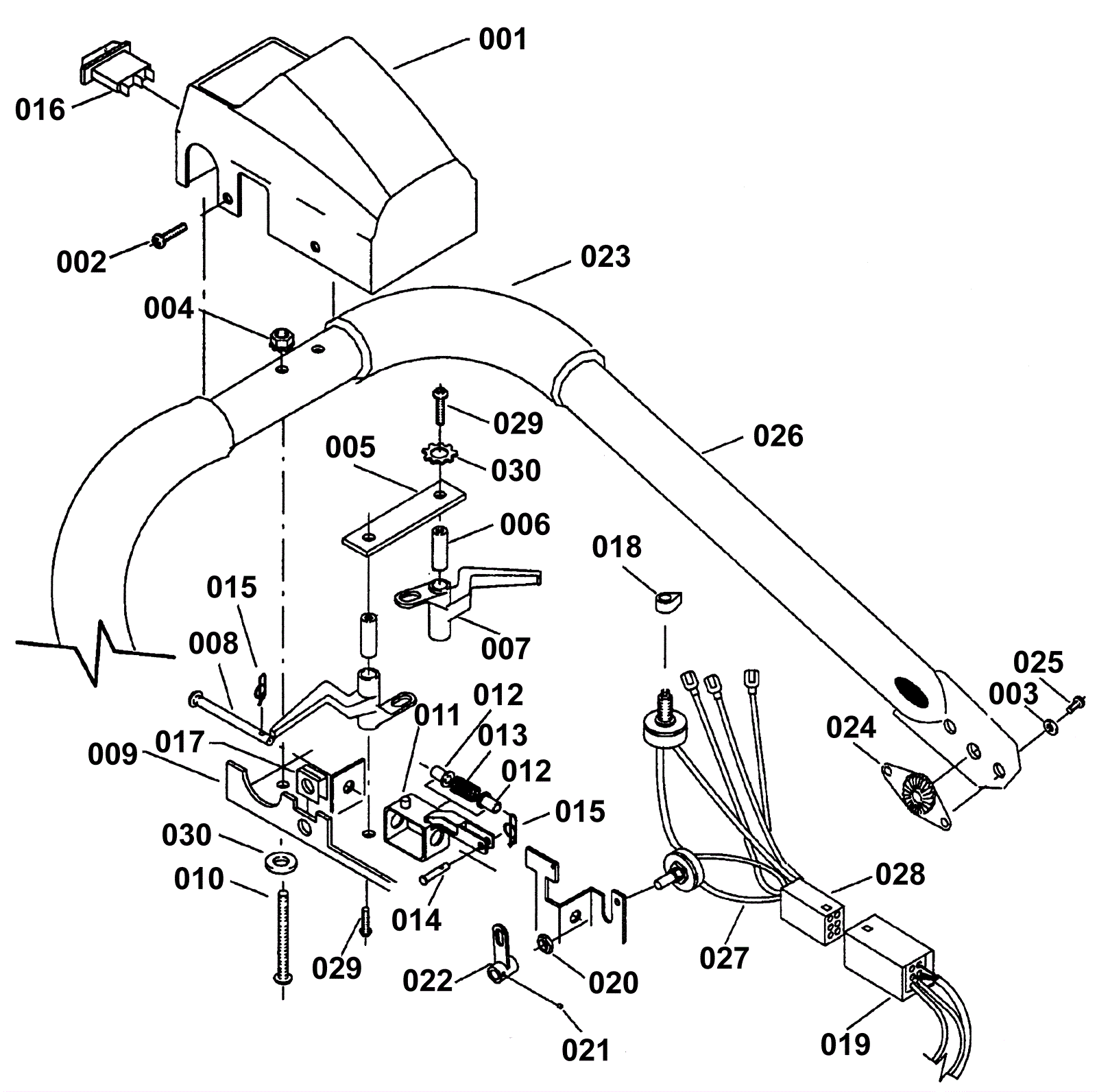

Propel Handle Assembly

#PartDescription ReqNotesAvailability
001 173-1029 Propel Handle Cover (OBSOLETE) 1
002 173-2566 Screw #10 x 1/2 pan head 4
003 999-0998 Washer #10 flat stainless steel 4
004 999-0086 Nut 10-32 nylon insert lock zinc plated 2
005 173-1030 Lever Pivot Support 1
006 173-1031 Handle Lever Pivot Rod 2
007 173-1032 Propel Control Handle Lever 2
008 173-1033 Clevis Pin 1
009 173-1034 Propel Control Plate Assembly 1
010 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated 2
011 173-1035 Lever Centering Guide 1
012 173-1036 Propel control brushing 2
013 173-1037 Comp..36 D x 1.12L x .04W Spring 1
014 173-1038 Pin Clevis 3/16 x 1/12 1
015 173-1130 Cotter ring 2
016 173-1040 36VDC SPST illuminated switch 1
017 173-2576 Nut 10-24 tinnerman (OBSOLETE) 4
018 173-1041 Speed control knob 1
019 173-0549 Handle to power wire assembly 1
020 173-3896 Nut 3/8-27 Pane (OBSOLETE)l 1
021 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
022 173-1042 Potentiometer pivot (OBSOLETE) 1
023 173-1043 Handle x 9.5 inch Grip 2
024 173-5097 Handle adjustment lock 2
025 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel 4
026 173-0550 Main handle 1
027 173-0551 Handle wire assembly 1
028 173-4052 Connector Molex 6 Pin receptacle 1
029 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
030 999-0311 Washer #10 external star lock zinc plated 6
