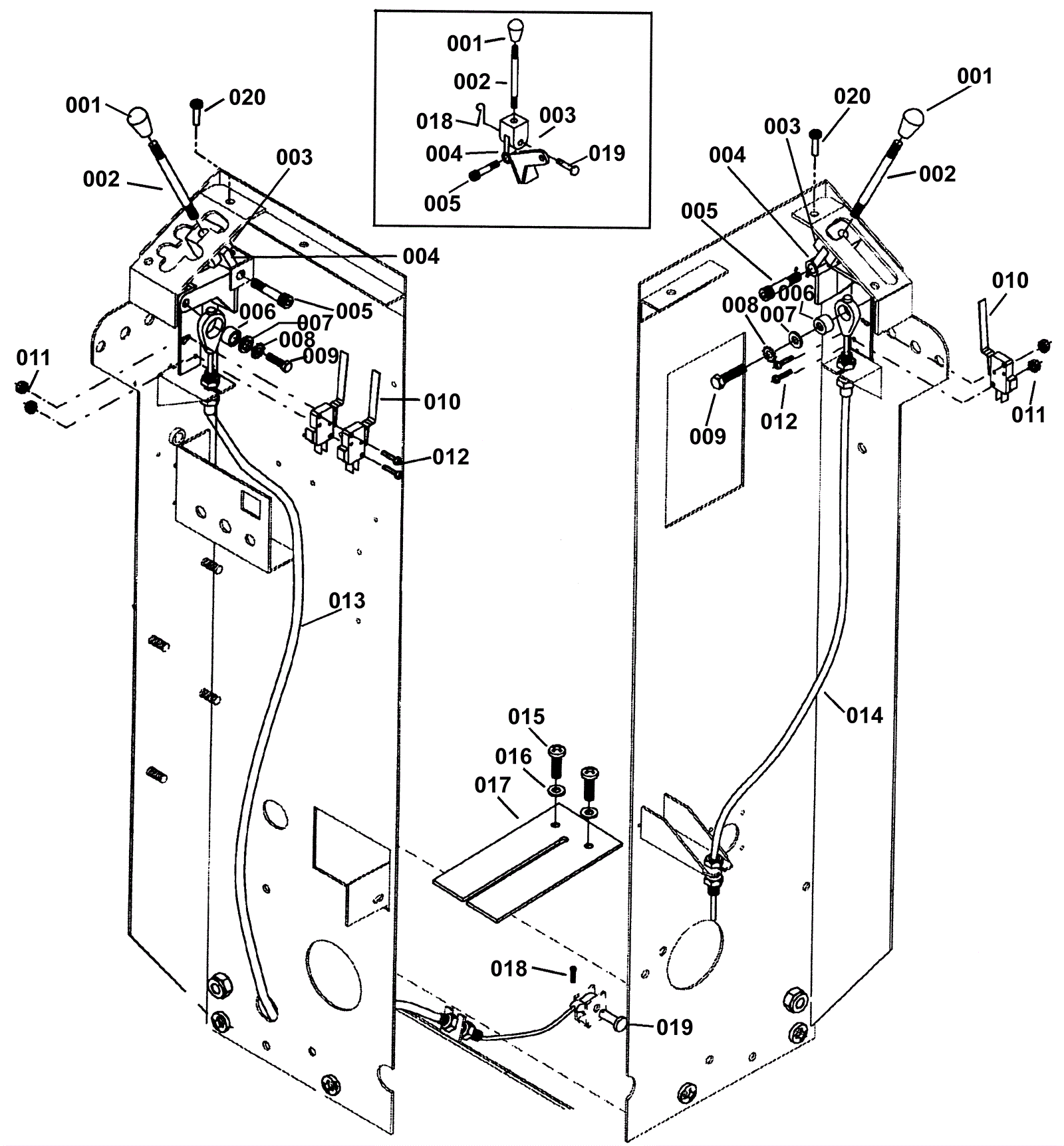

Handle, Microswitch, and Cable Assemblies

#PartDescription ReqNotesAvailability
001 173-1901 Solution lever knob 2
002 173-0539 Brush vac control handle 2
003 173-0540 Clevis rod end 2
004 173-0541 Handle pivot lever assembly 2
005 999-1056 Bolt 5/16-18 x 1 shoulder stainless steel 2
006 173-0542 Spacer (OBSOLETE) 2
007 999-0123 Washer 1/4 SAE flat zinc plated 2
008 999-0017 Washer 1/4 external star lock 2
009 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
010 173-0543 Lever bent switch 3
011 173-2579 Nut 4-40 hex star lock 4
012 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel 4
013 173-0544 Brush lift cable 1
014 173-0545 Vac shoe lift cable 1
015 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
016 999-0998 Washer #10 flat stainless steel 2
017 173-0546 Splash guard 1
018 173-1039 Cotter Pin 1/16 x 3/4 3
019 173-1474 Clevis pin 3
020 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
